Complete Windmoller & Holscher Cement Paper Bag Making Machine Line:

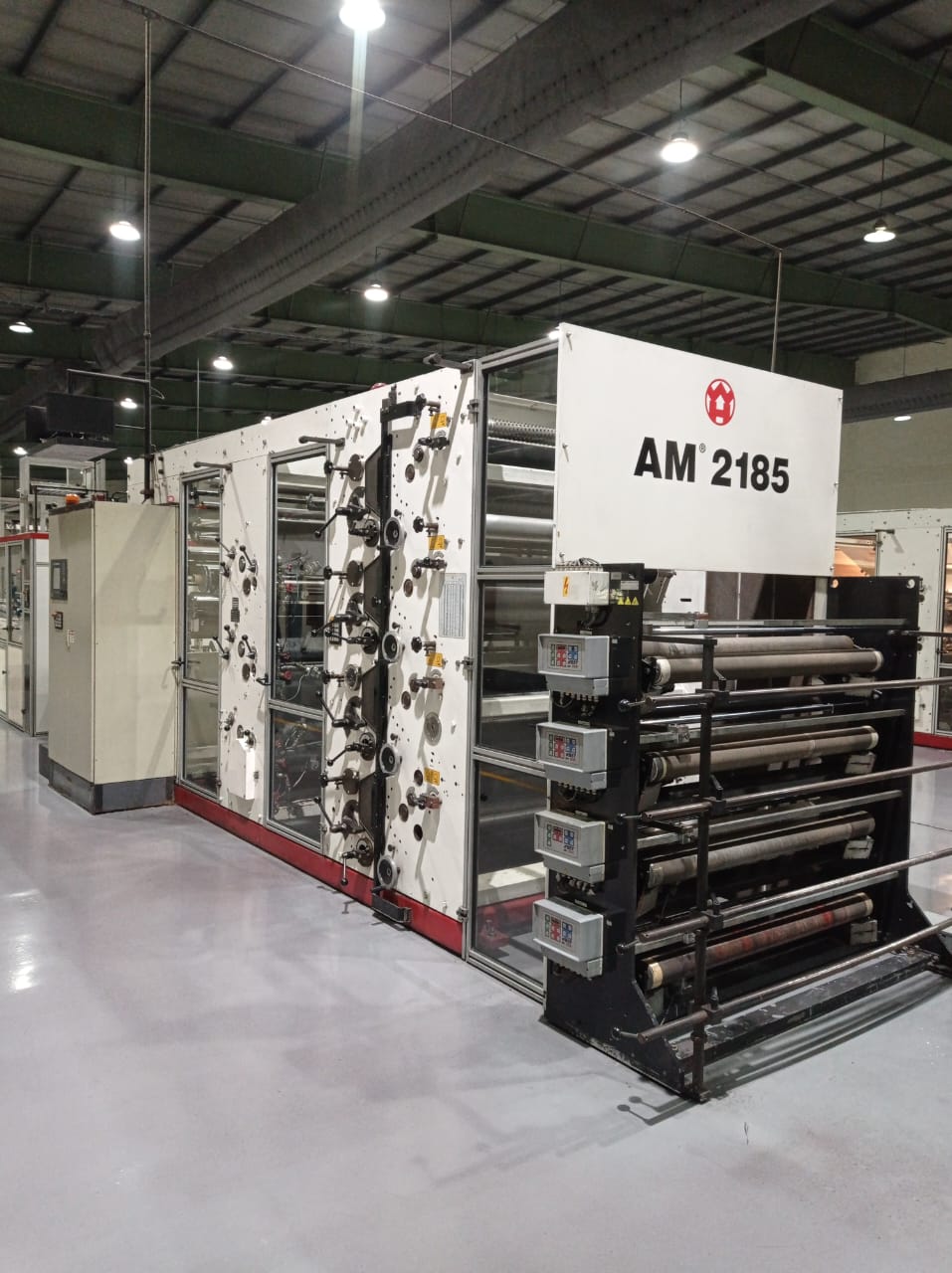

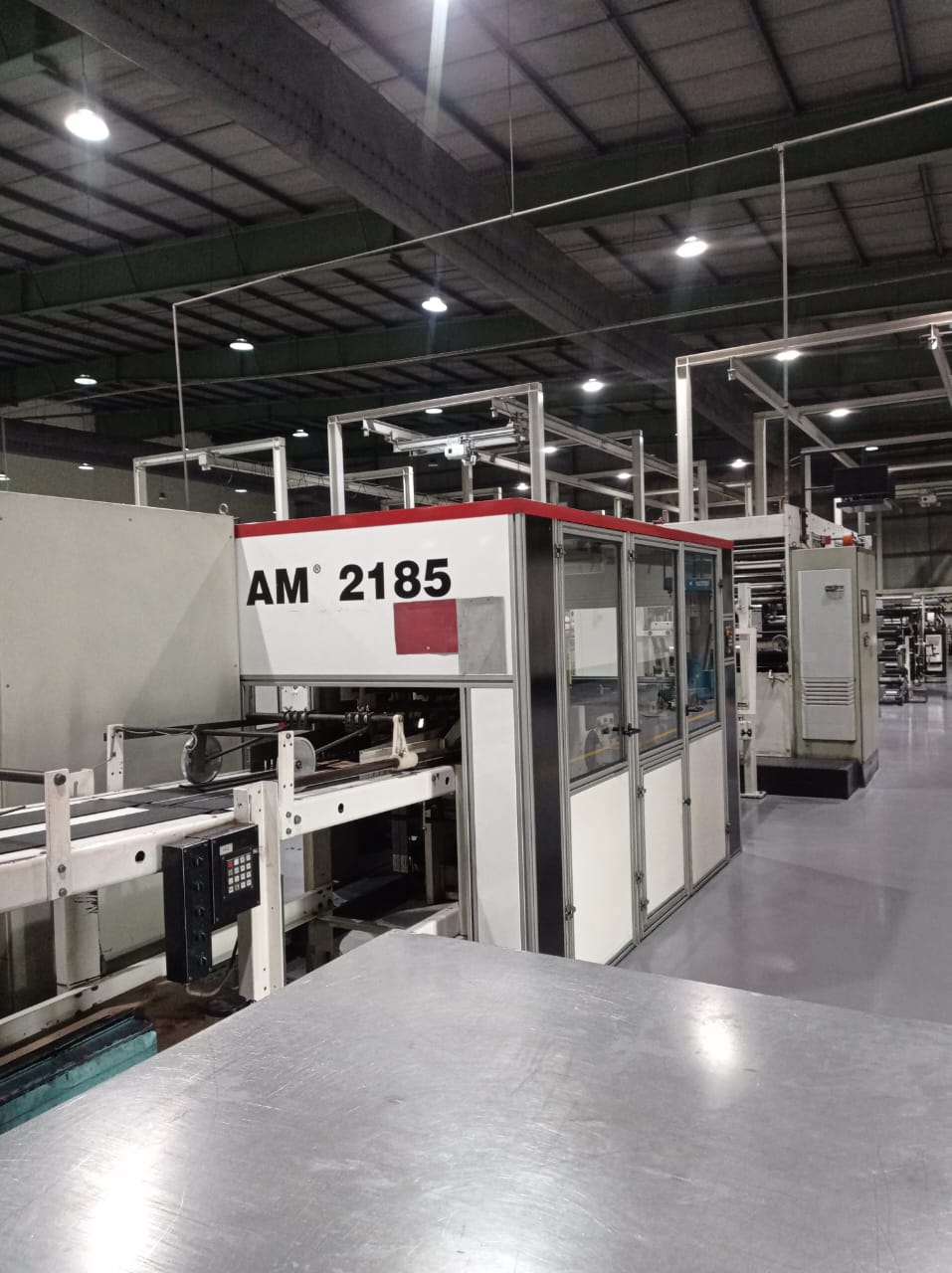

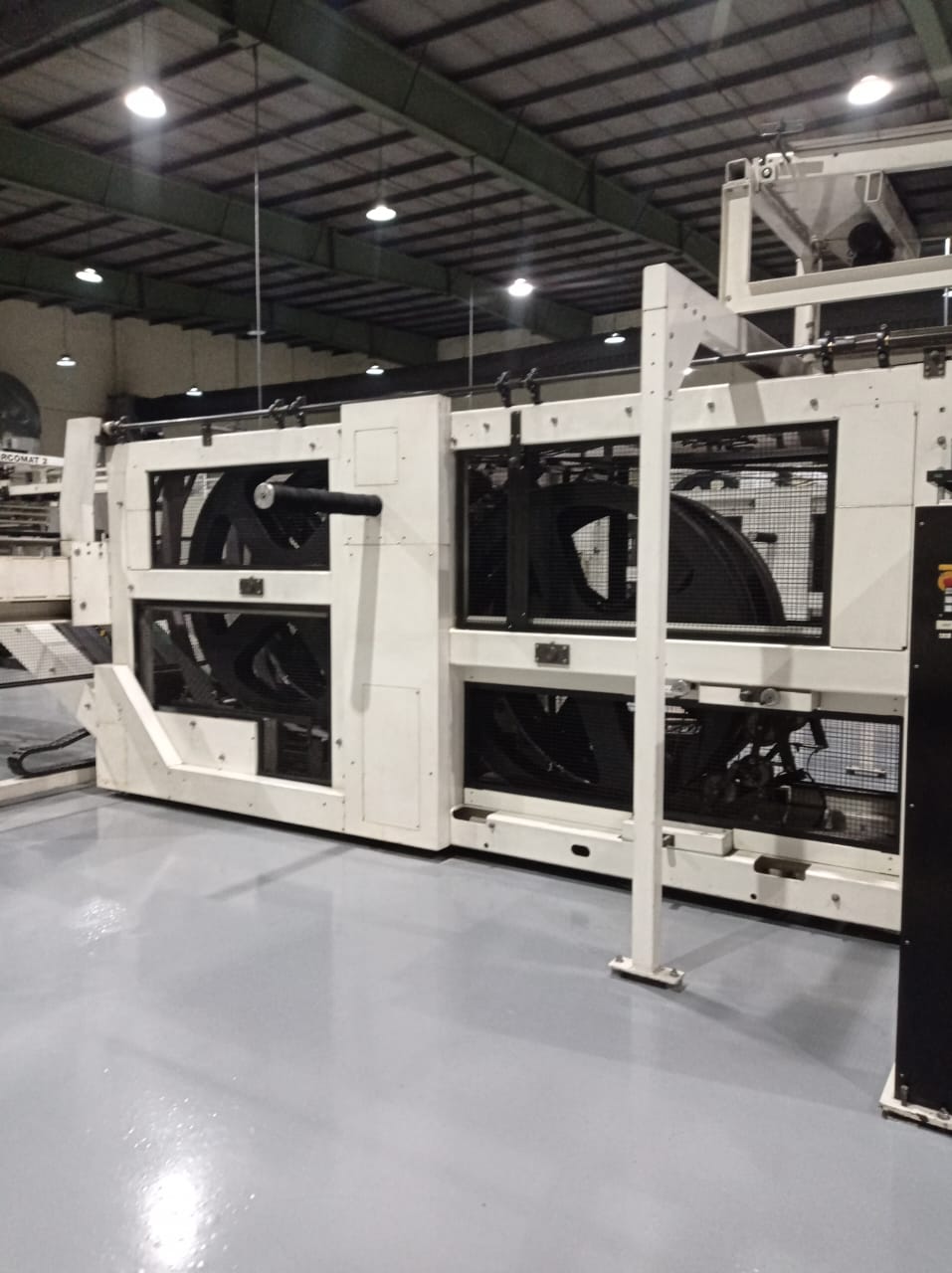

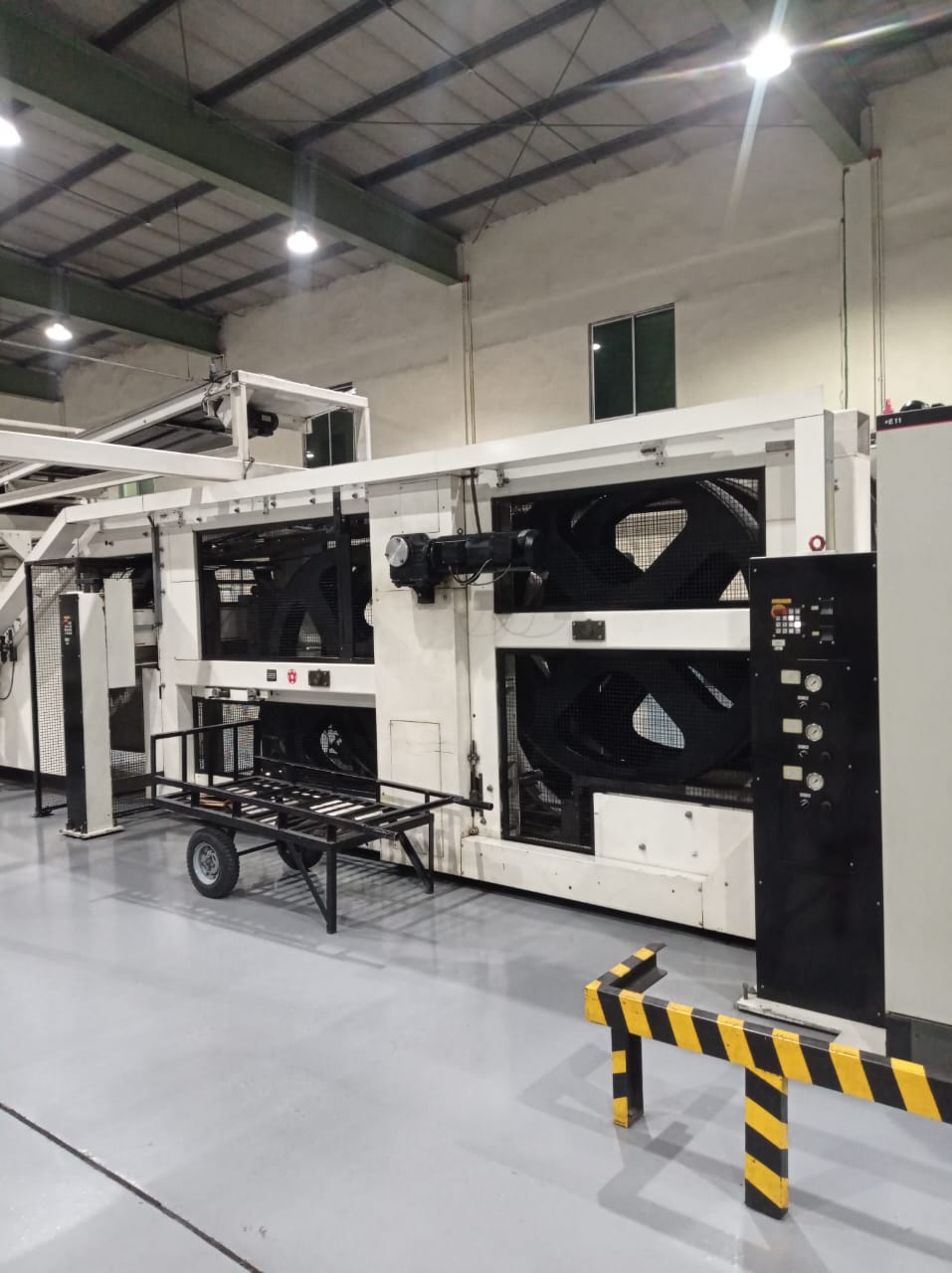

Tuber

Brand: W&H

Model: AM 2185

Year: 2006

4 plies

Stepped end and flush cut

Min-max tube width: 260 – 500 mm

Min tube length stepped end: 480 mm

Min-max tube length flush cut: 450 – 850 mm

Max paper roll width: 1030 mm

Max paper roll diameter: 1350 mm

Number of unwind stands: min 4

Core i.d.: 76 mm

Output: 350 tubes/min. The owner makes 250 tubes/min.

Max web speed: 300 m/min

Photocell for PCS

Rated power: approx. 80 kW (without printer)

Power characteristics: 400V, 50Hz without neutral

Required space: (4-ply machine): according to layout plan

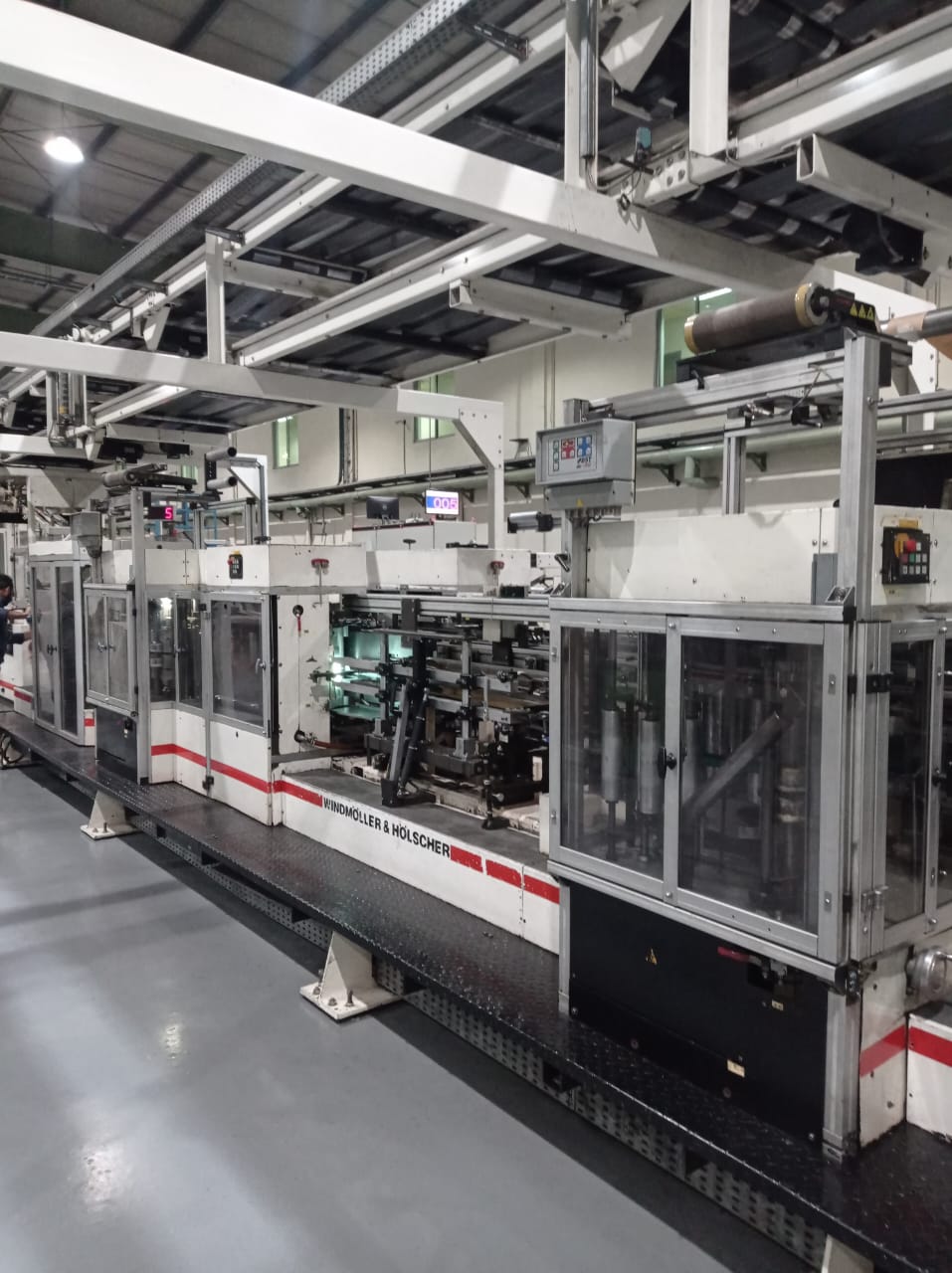

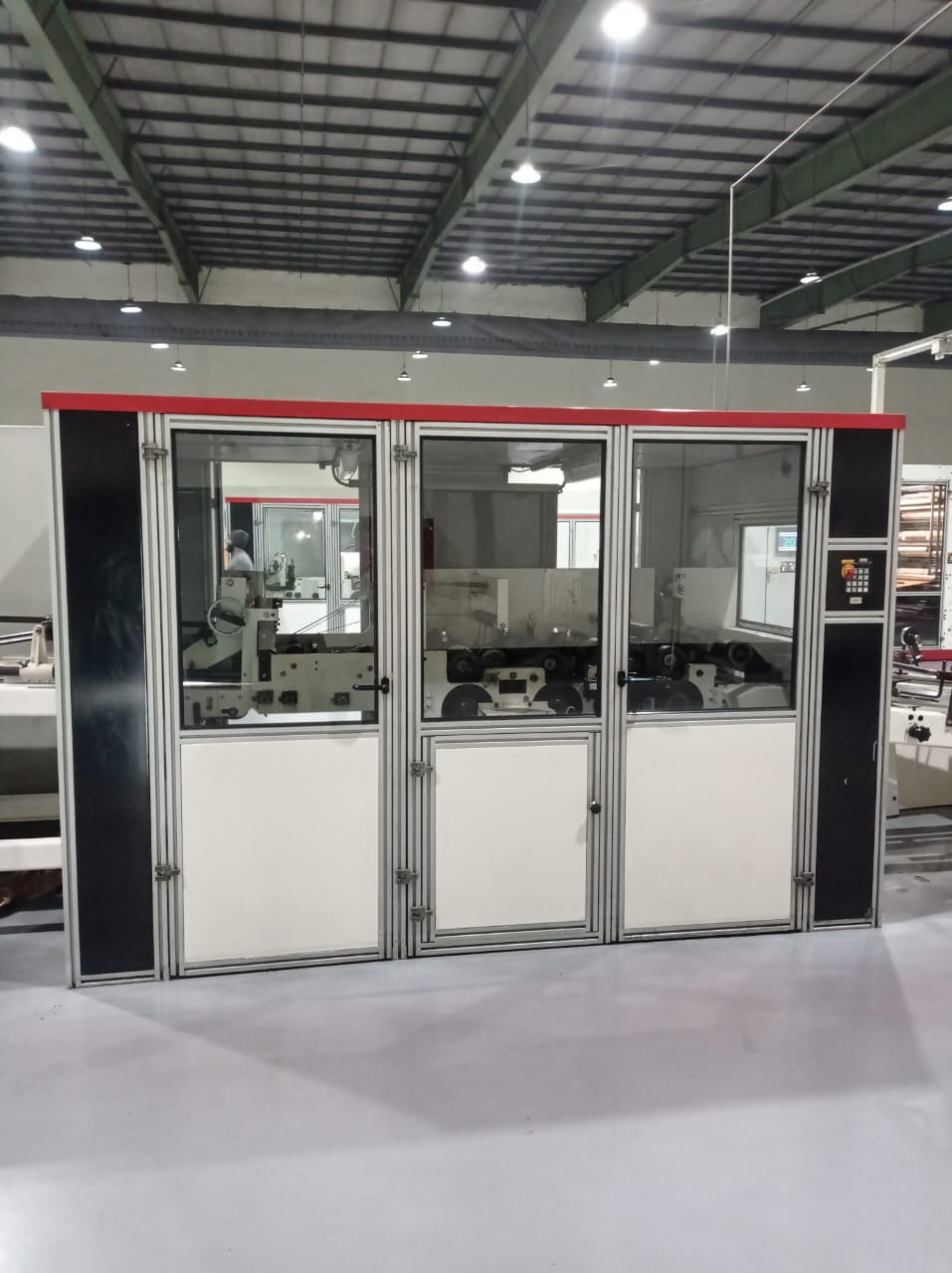

In line printer

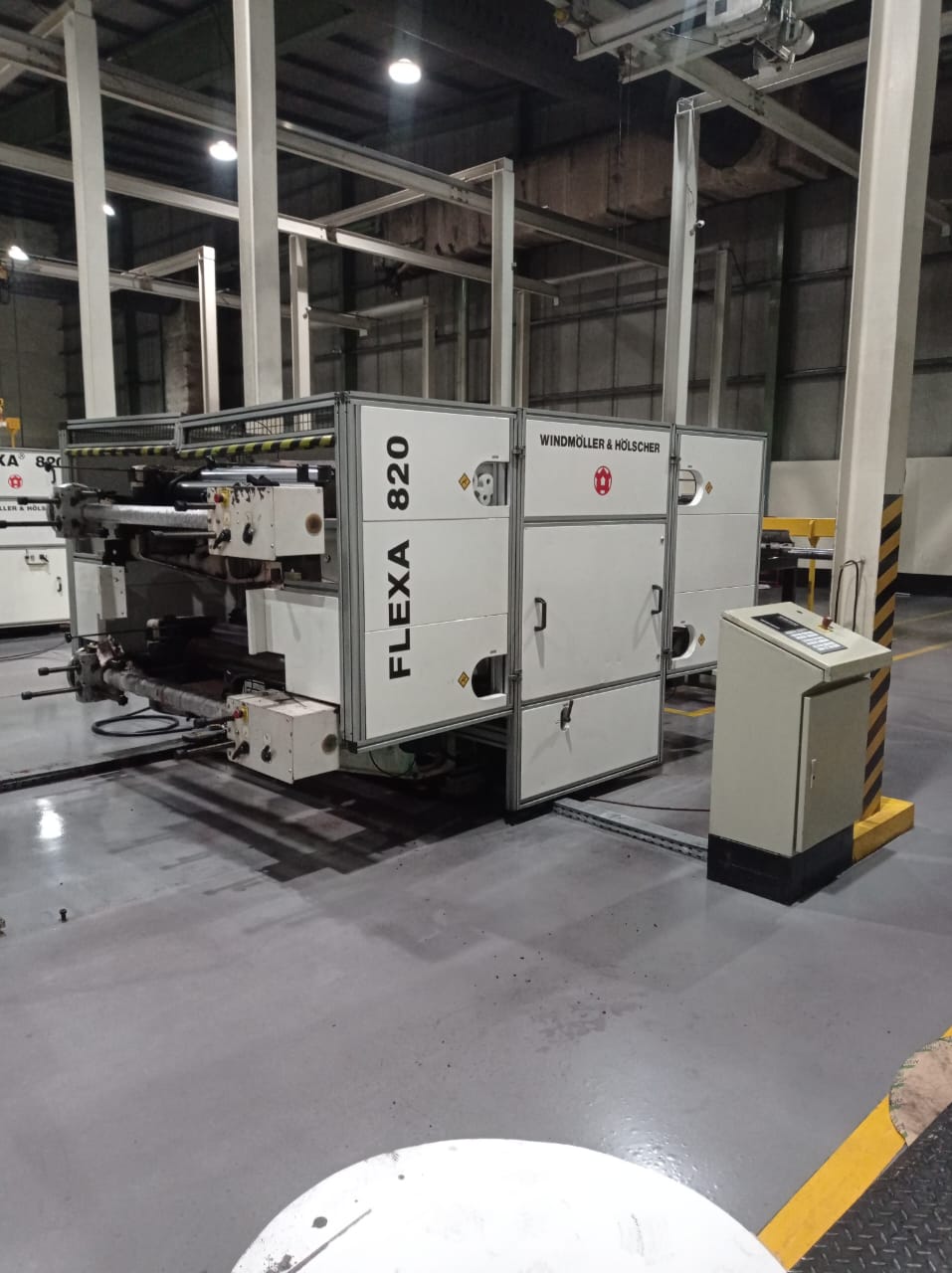

Brand: W&H

Model: Flexa 820

Year: 2006

4 color; currently equipped with 2 printing decks

Web width: 1370 mm

Printing width: 1320 mm

Print repeat range: 450 – 1500 mm

Output speed when equipped with fountain roller inking system: max. 250 m/min (depending on job specification and print related factors)

Materials: paper 40 – 250 gsm

Water based inks

Printing cylinders: 8×720, 7×730, 8×740, 7×750, 7×760 mm

Required space: per W&H installation drawing

Power consumption: 50 Hz 3×400 volts, without neutral

W&H Transystem 1

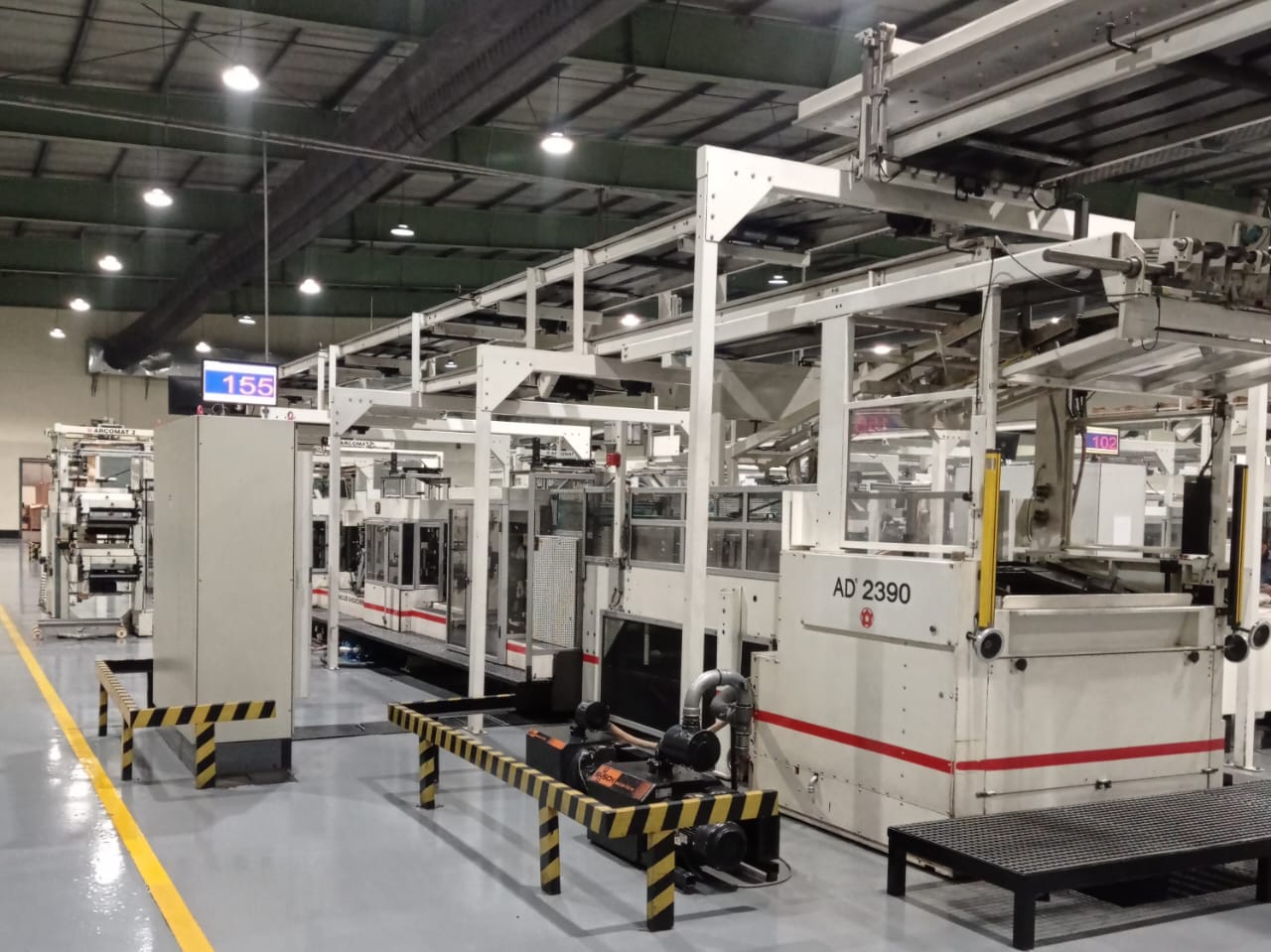

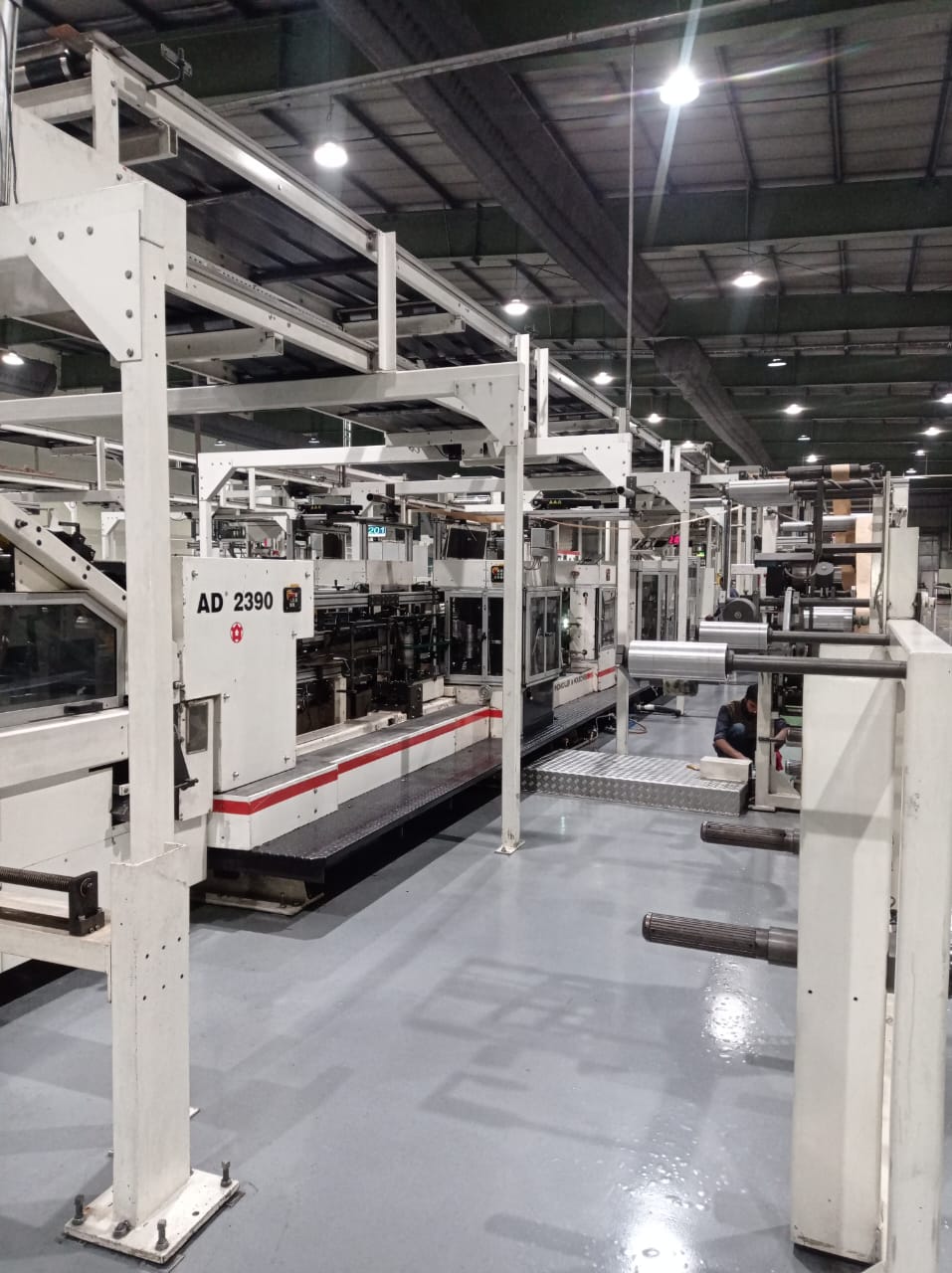

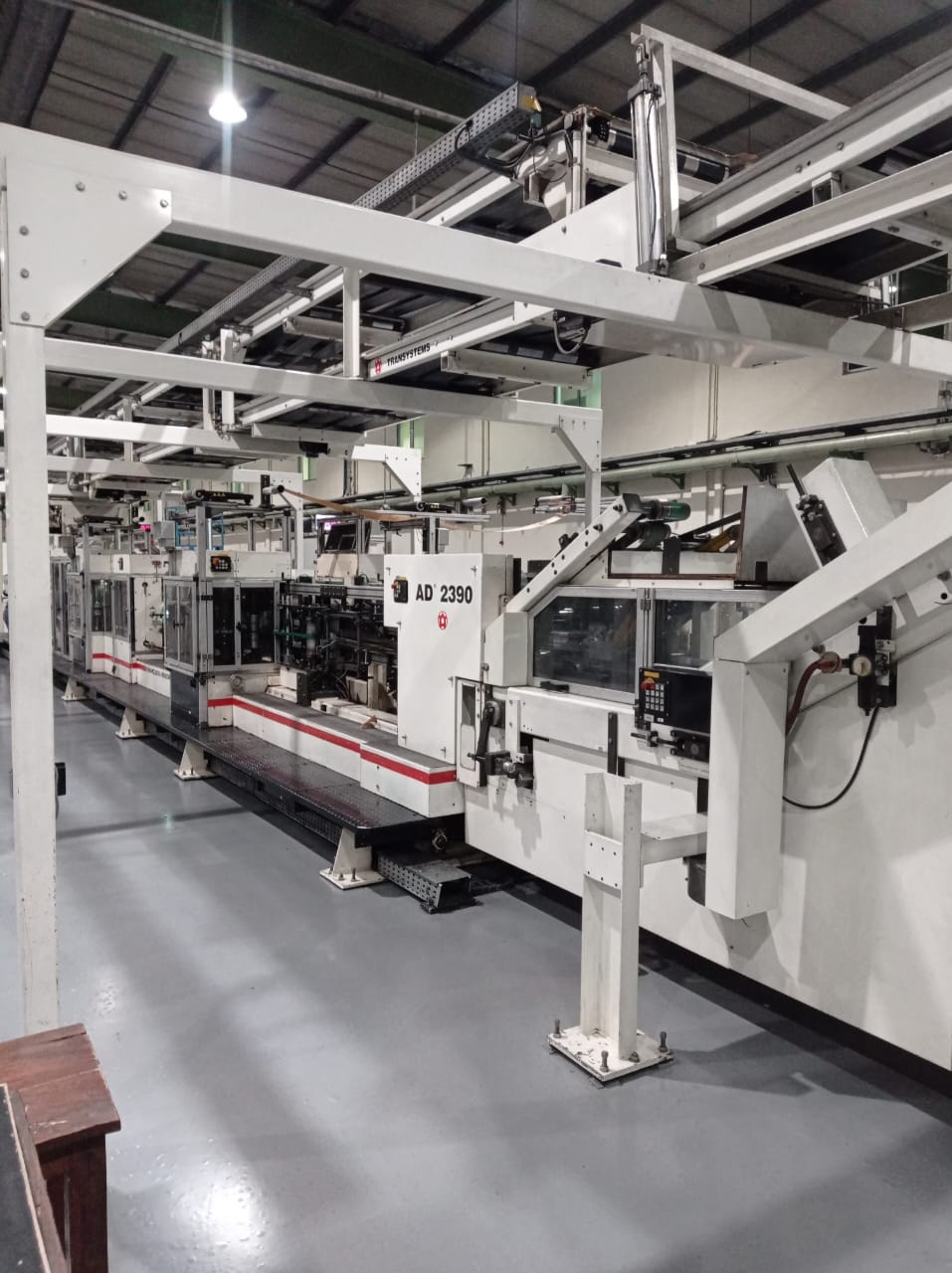

Bottomer

Brand: W&H

Model: AD 2390

Year: 2006

With valve unit

Type of valve: two valve types are produced by the owner – flat and tubular. The valve with PE liner is not possible to produce

Min-max tube lengths: 540 -940 mm

Min-max tube width: 320 – 550 mm

Min-max sack length (stepped end and flush cut): 410 – 740 mm

Min-max sack width: 320 – 550 mm

Bottom center distance: 320 – 600 mm

Bottom width:

For stepped-end sacks: 90 – 140 mm (valid for 3-ply stepped end sack)

For flush-cut sacks: 90 – 140 mm

Min-max valve length: 100 – 220 mm

Min-max valve cut-off length: 100 – 220 mm

Min-max roll width: 100 – 300 mm

There is a bottom patch but the owner doesn’t use because not requirement by the customers

With printer for bottom patch (2 colors)

Printing cylinders: 2×280, 2×330, 2×380, 2×420, 2×520 mm

Bottom cap: (option available against extra charge)

Min-max cut-off length: 180 – 450 mm

Min-max roll width: 80 – 180 mm

Output: with 2-drum delivery maximum 300 sacks/min (depending on raw material quality, product design and operator qualification).The owner makes 230 sacks/min

Packet frequency: with 2-drum delivery maximum 25 sacks/min

Capacity: up to 200.000 sacks/per day, 60 million sacks/per year

Glue preparation plant is not included

Required space: according to the layout plan

Power consumption: 35-40 kW

Rated output of drive: 25 kW

Connected load: 400 V

Weight: without bottom cap unit ca. 17.000 kg,with

bottom cap unit: ca. 20.000 kg

W&H Transystem 2

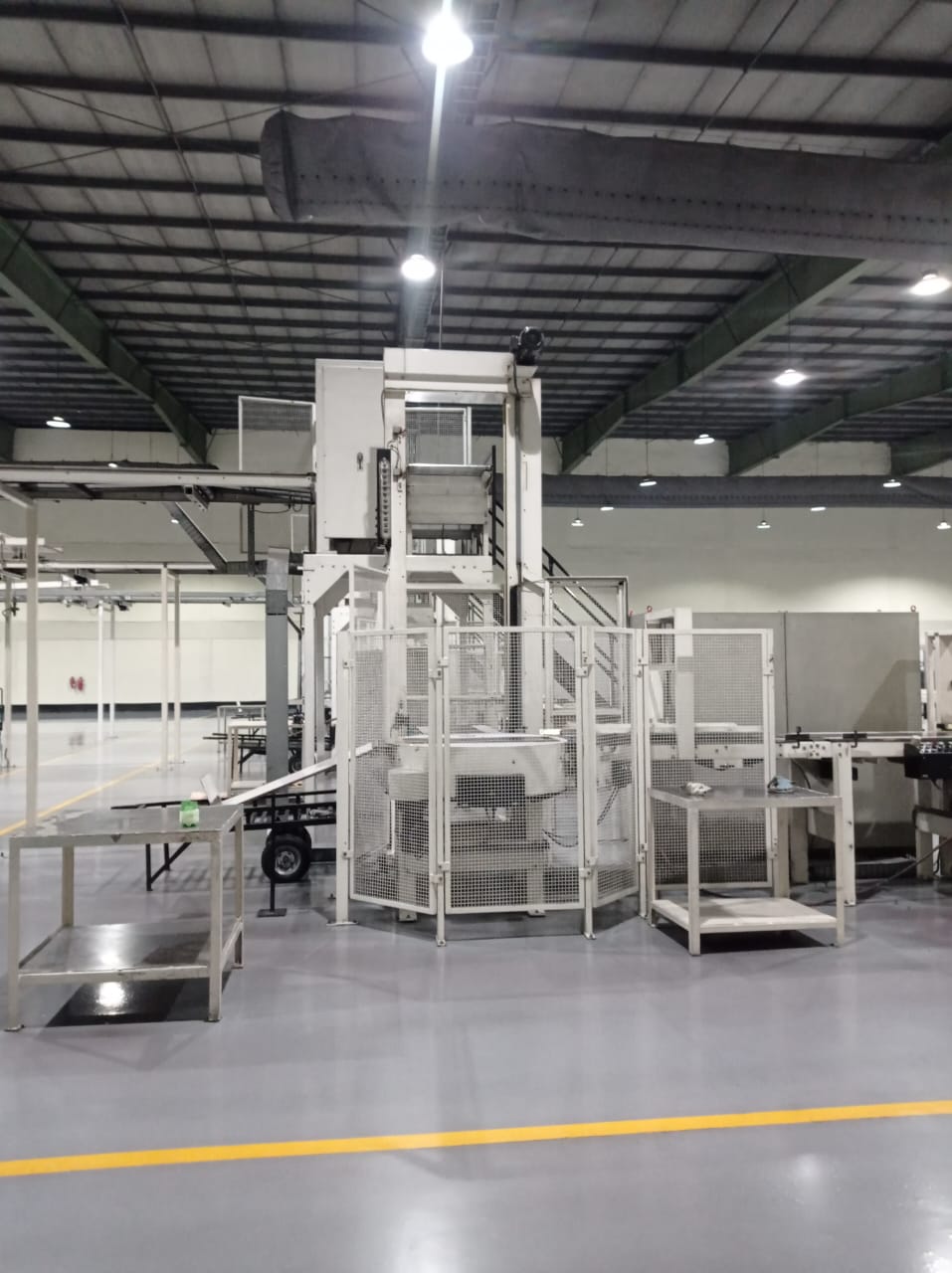

Palletizer

Brand: W&H

Model: Arcomat 2

Year: 2006

Min-max sacks length: 250 – 1400 mm

Min-max sacks width: 180-750 mm

Pallet dimensions (per W&H-pallets specification):

Min. 600×750 mm, max. 1400×1500 mm

Min-max empty pallet height: 100 – 180 mm

Palletizing surface: min 600×600 mm, max 1500×1600 mm

Max packet height: not compressed 180 mm, compressed 80 mm

Max empty pallet stack height: 1400 mm

Max stacking height: 2500 mm

Max stack weight: 1500 kg

Min-max working range of pallet press: 850 – 2500 mm

Stack pressing force: appr. N 10.000

Height of outfeed conveyor: 300 mm

Max output: 25 packets/min (The indicated output relates to a maximum packet height of 8 cm, to a maximum sack width of 50 cm and a minimum of 6 packets per layer on the slide table. Output may be reduced when handling products differing from the above specifications, when handling bags with smooth surfaces, or when pallets are changed)

Connected load: 43 kWa

Visible in production

Immediately available
