Voith Corrugated Cardboard Entire Solution
Voith Corrugated Cardboard Factory composed of:

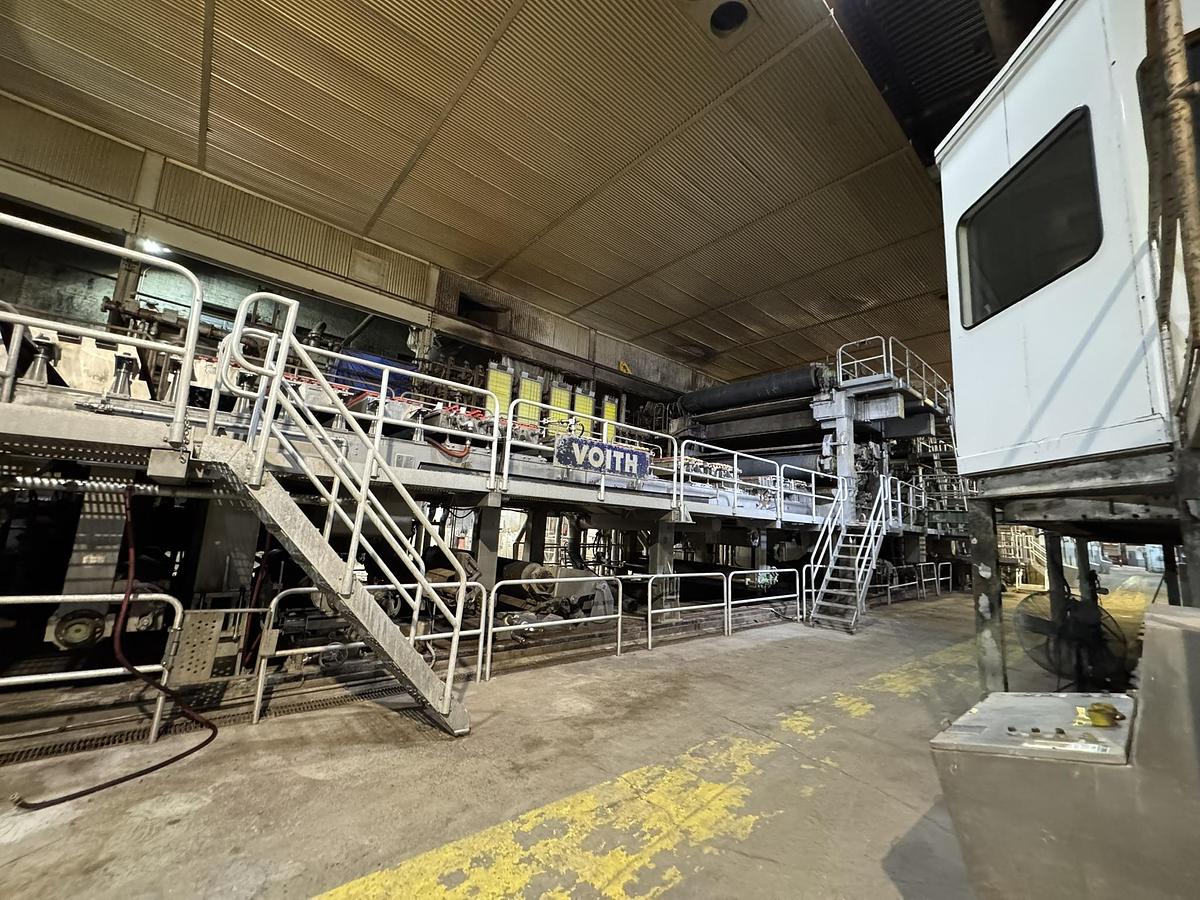

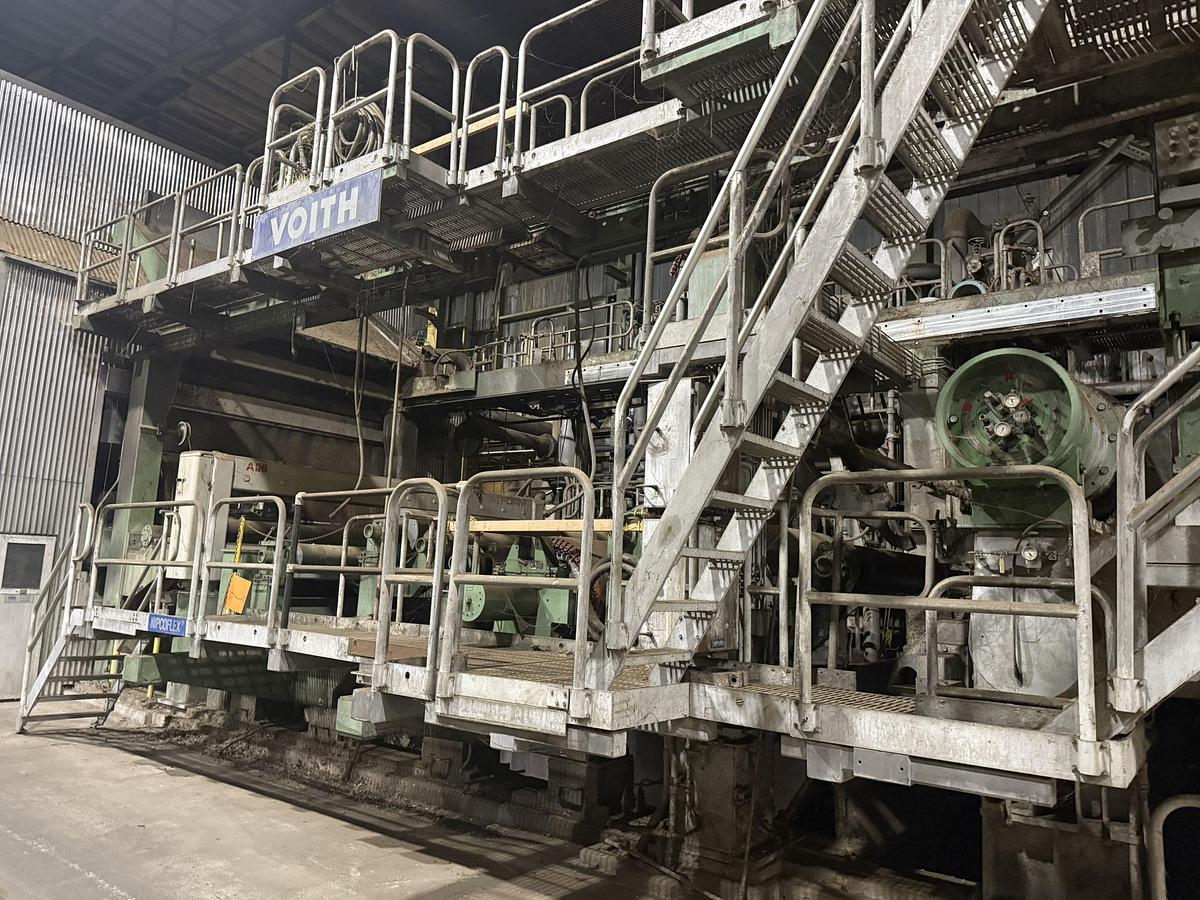

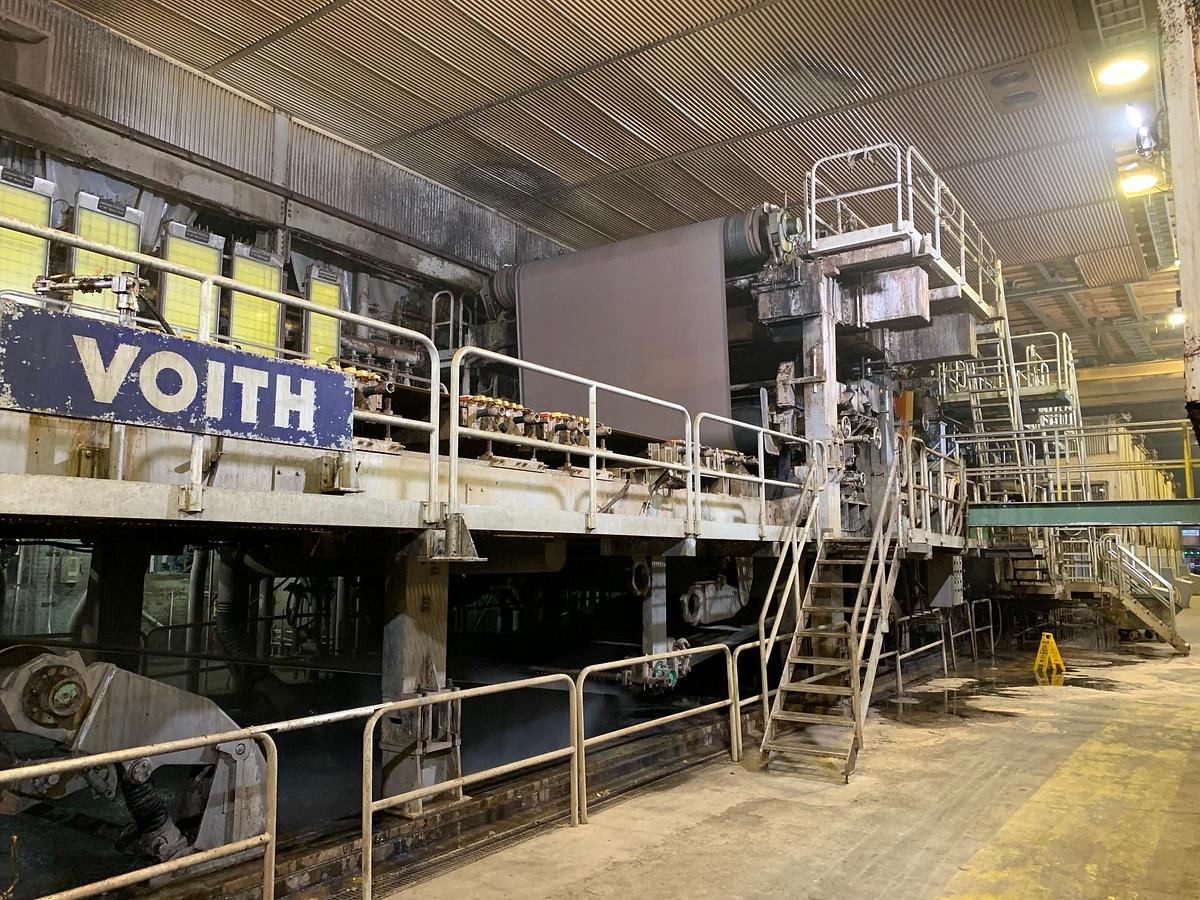

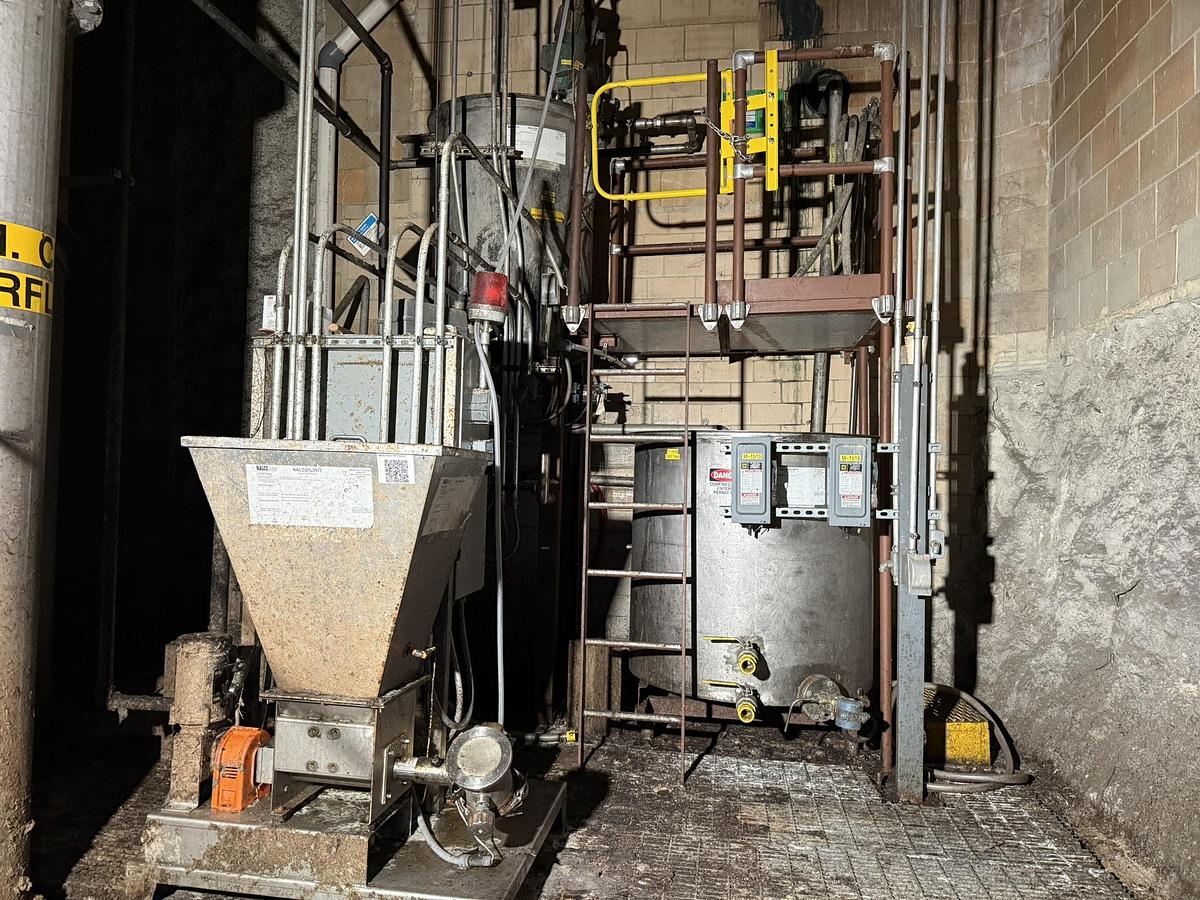

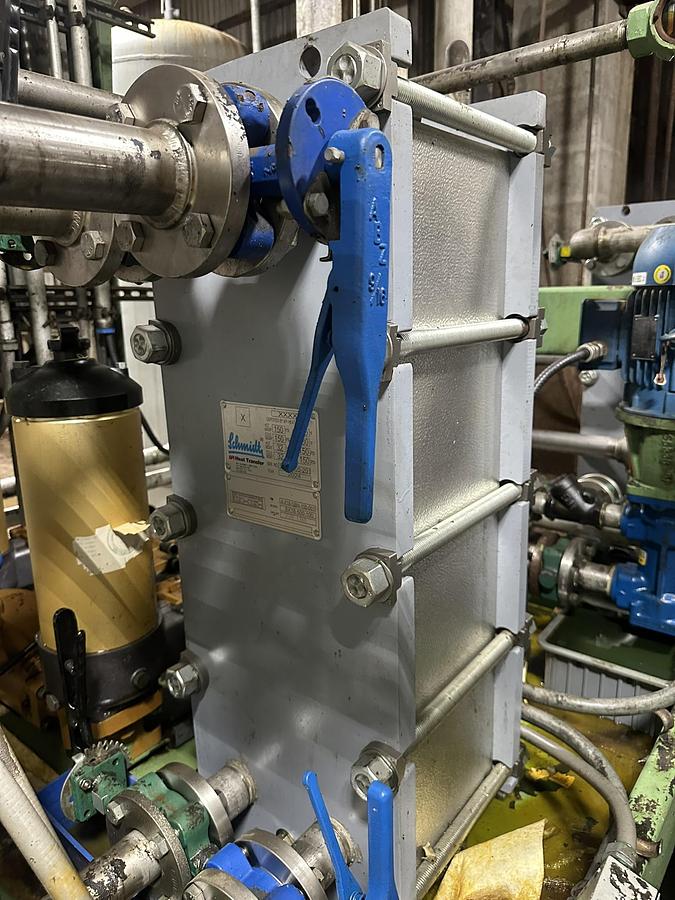

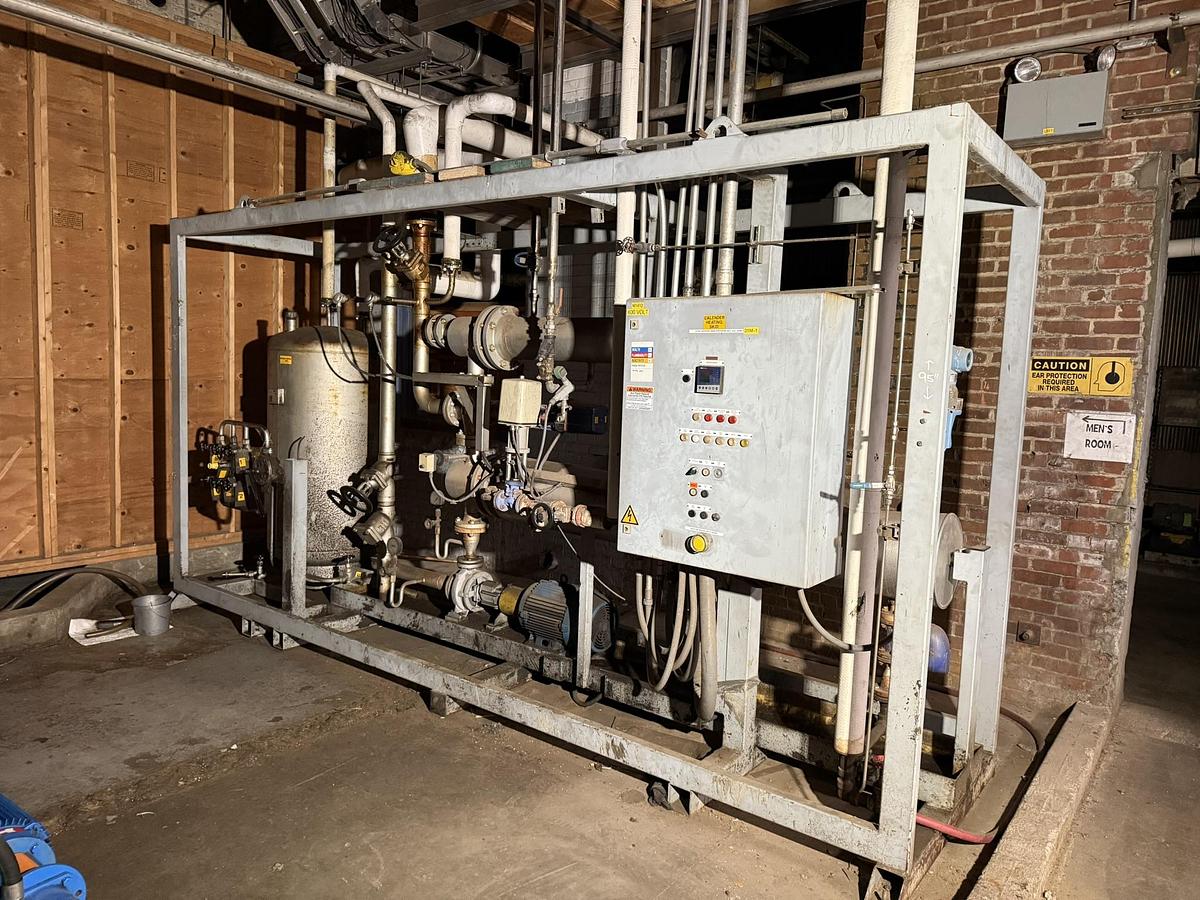

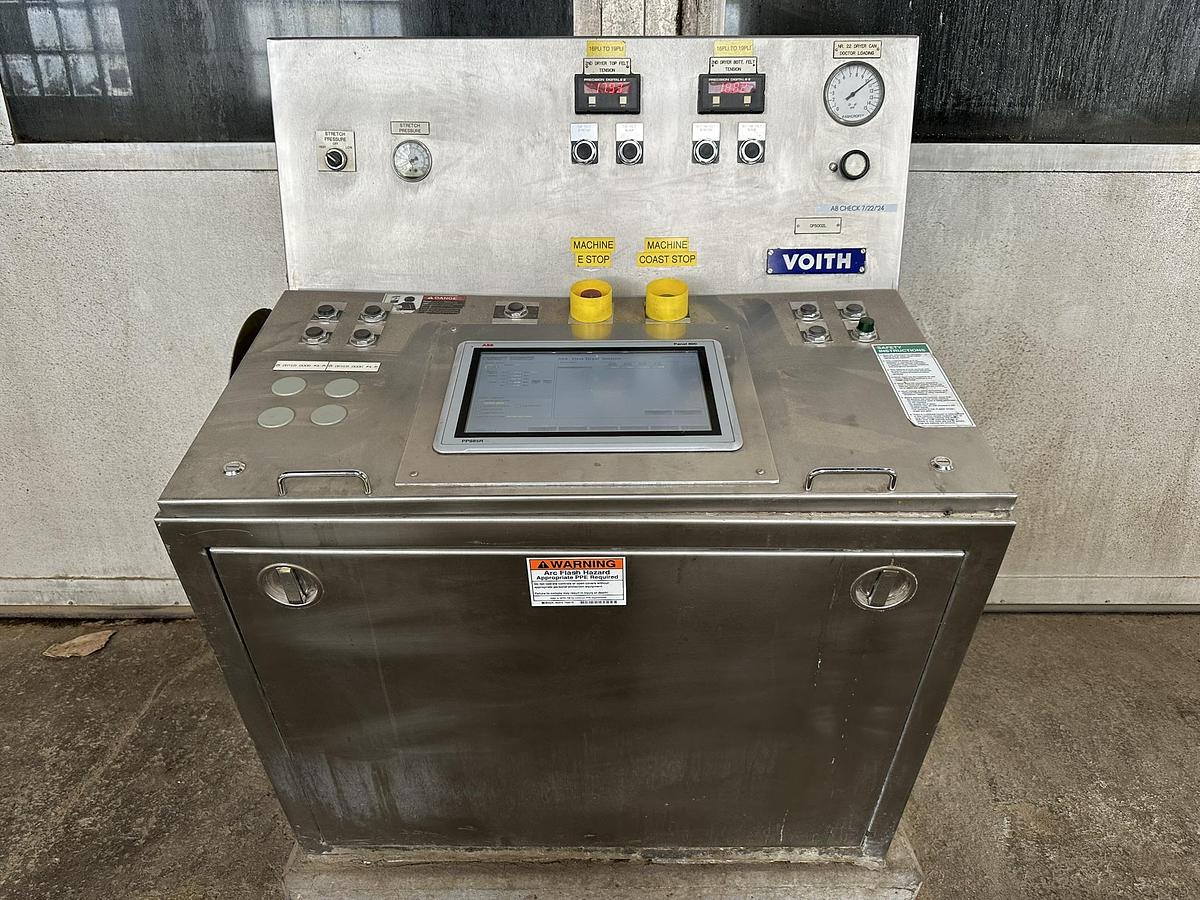

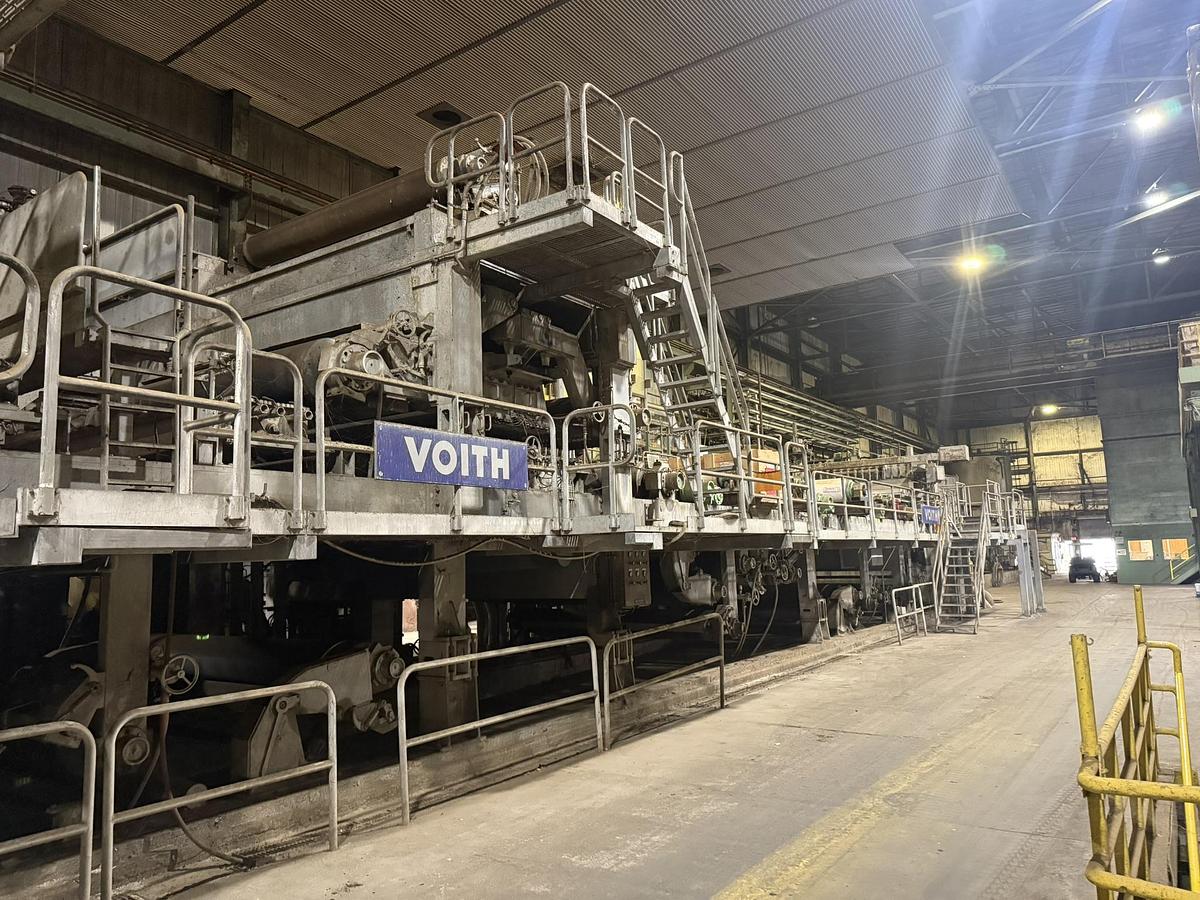

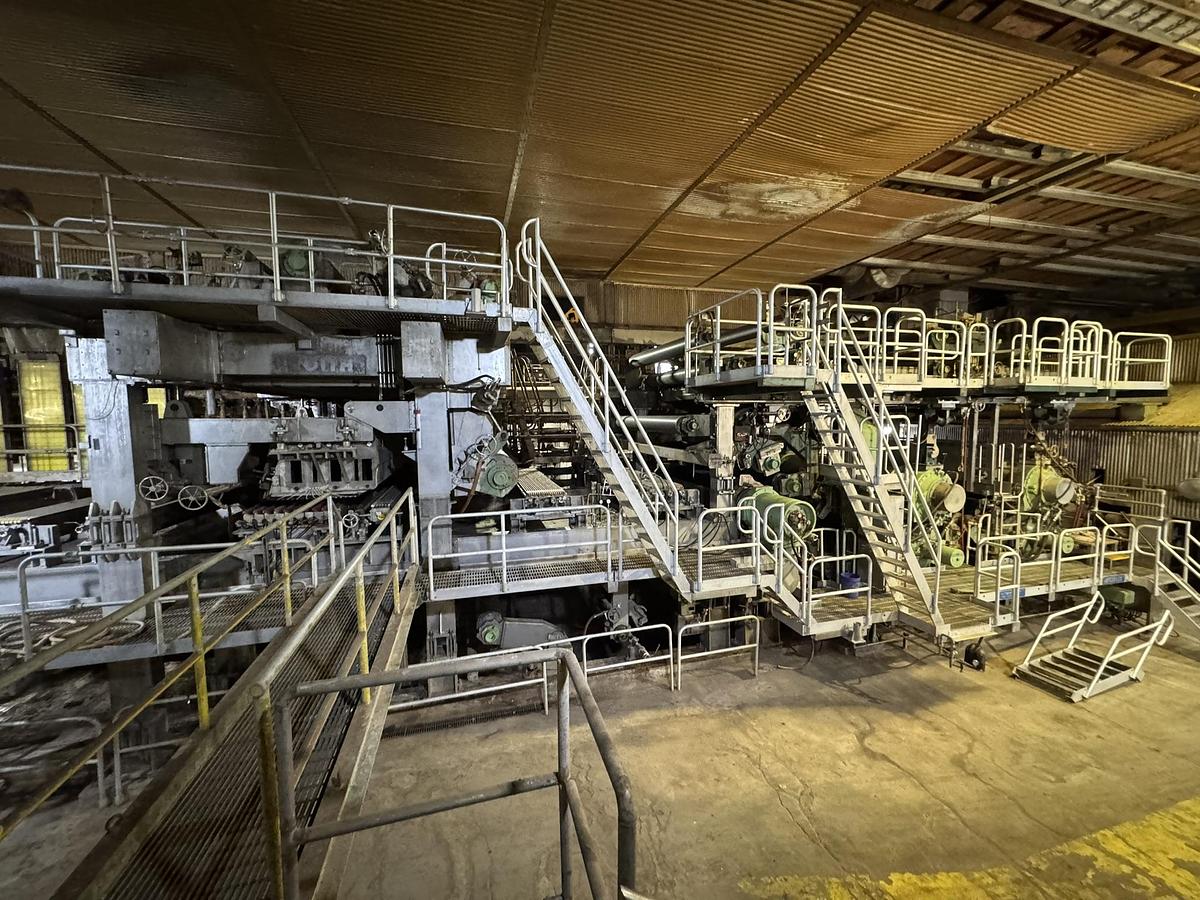

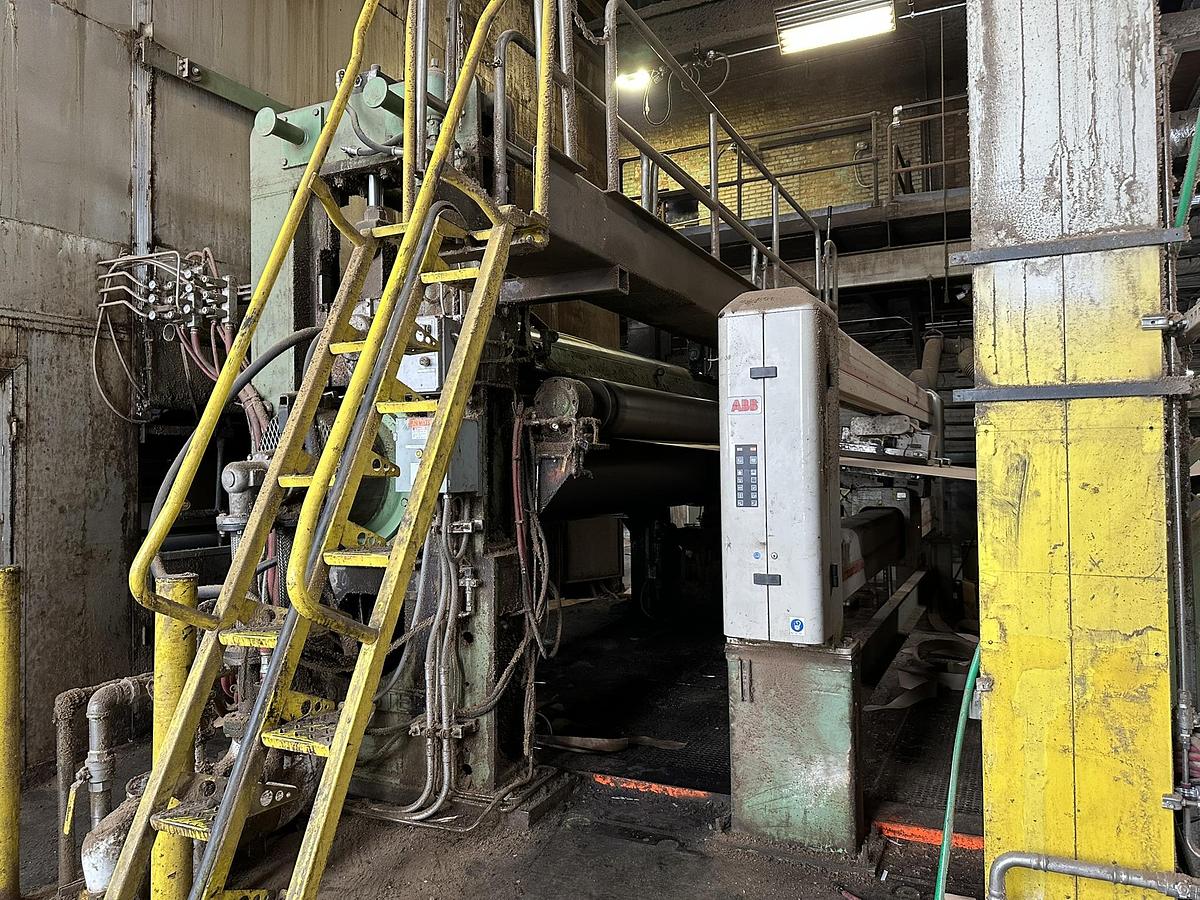

110" (2.8M) Voith Fourdrinier Paper Machine – 2002 (LBM)
- Trim Width: 110" (2.8M)
- Application: Linerboard, Medium, Tube & Core Stock

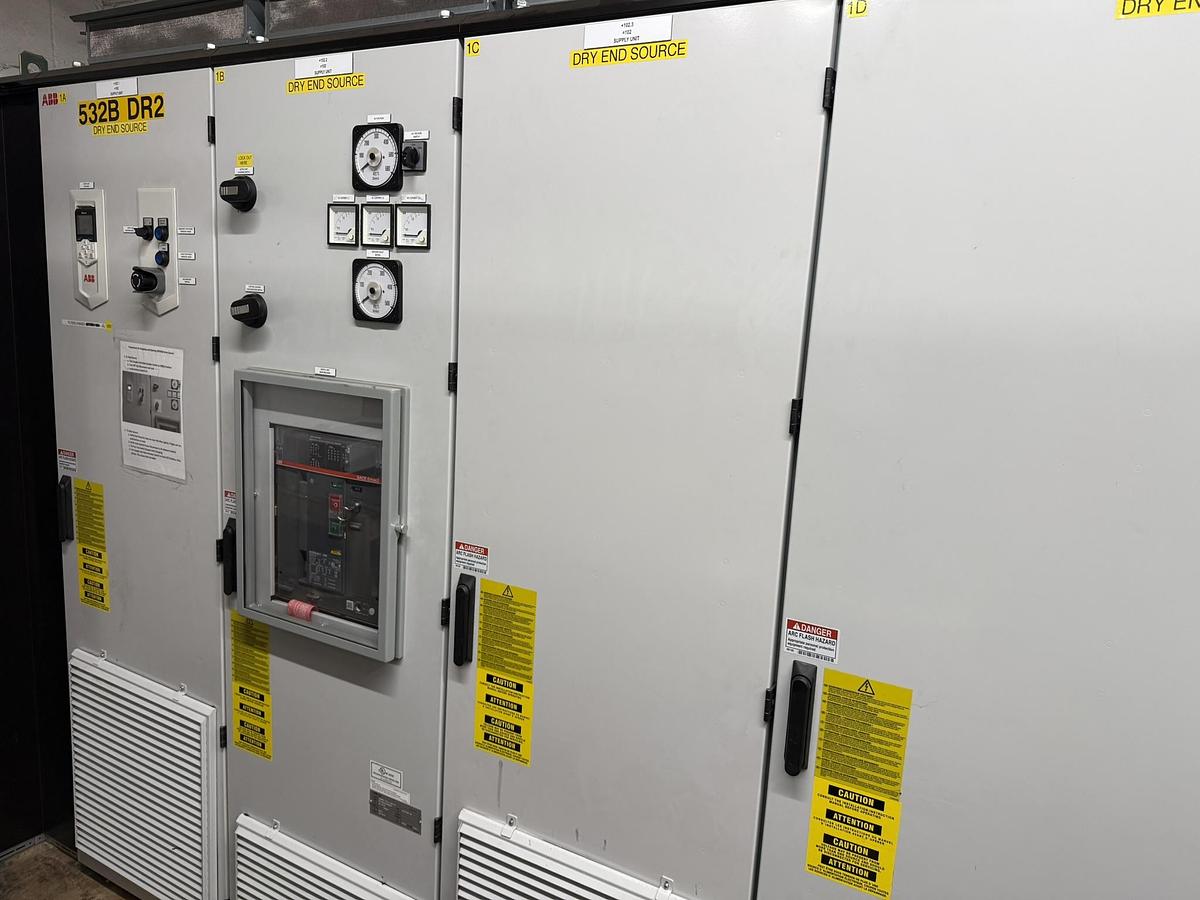

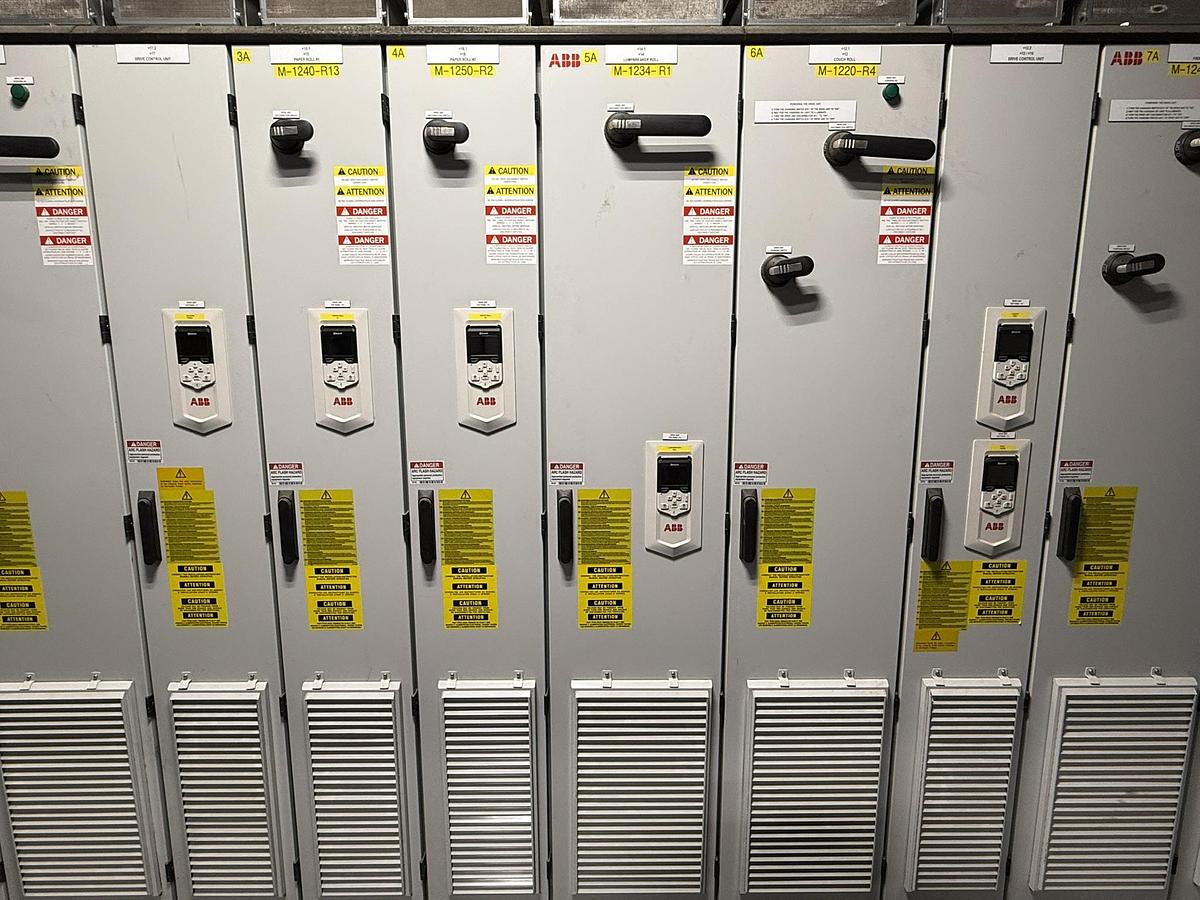

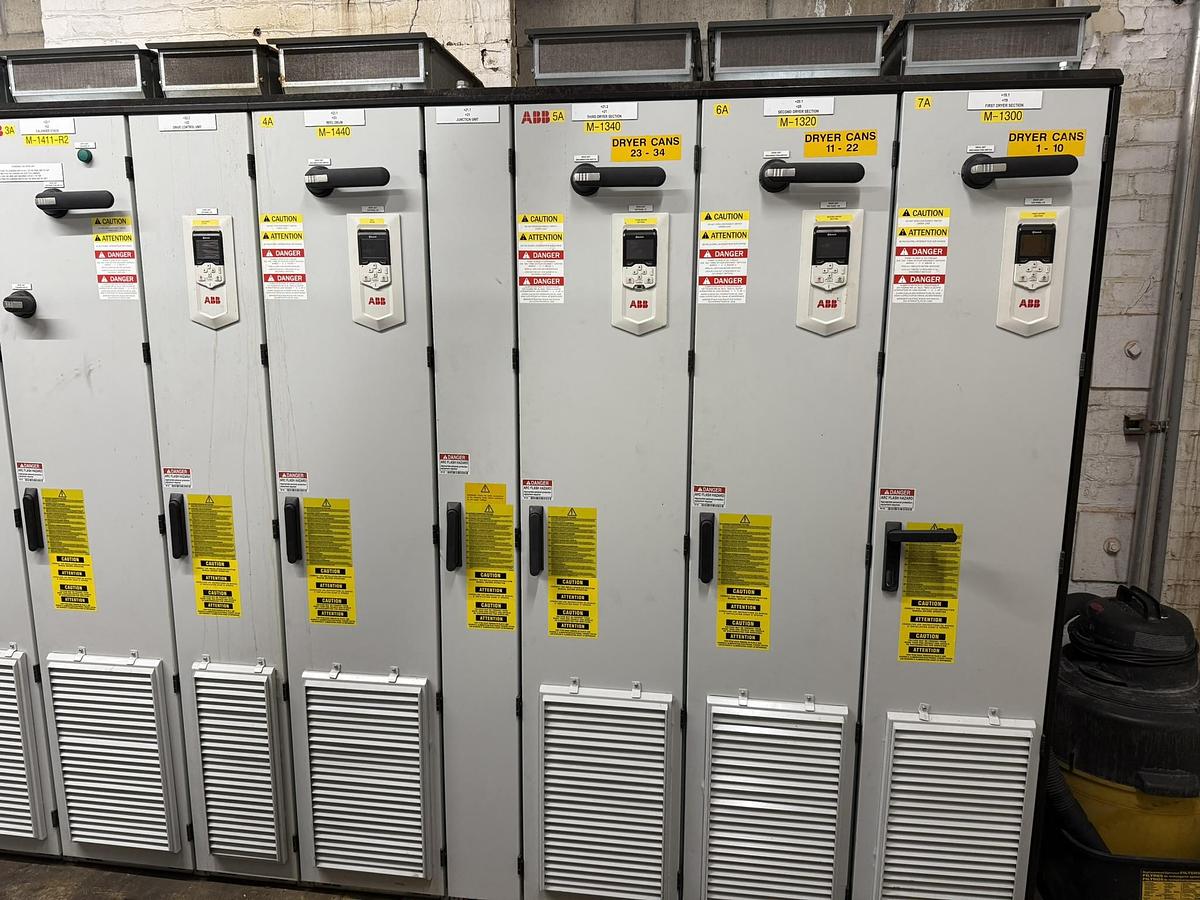

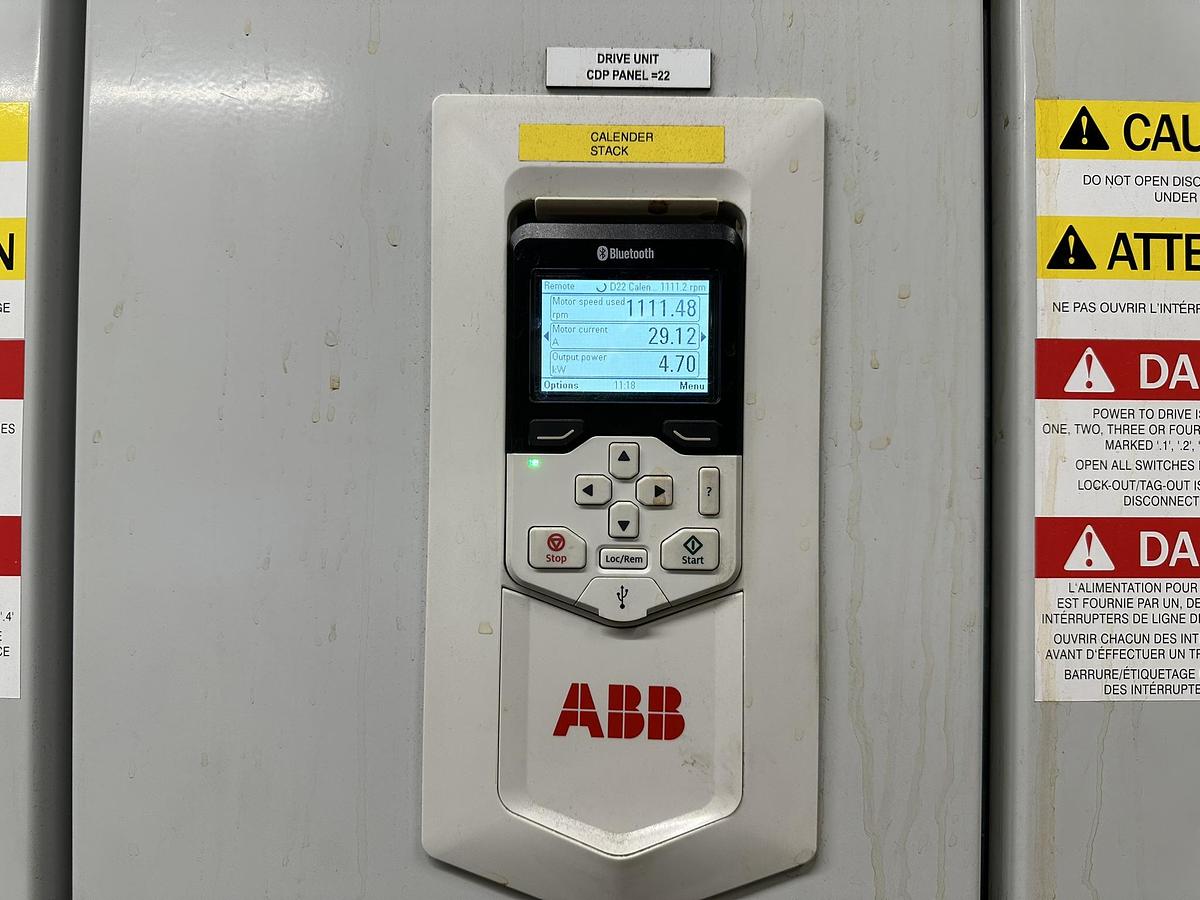

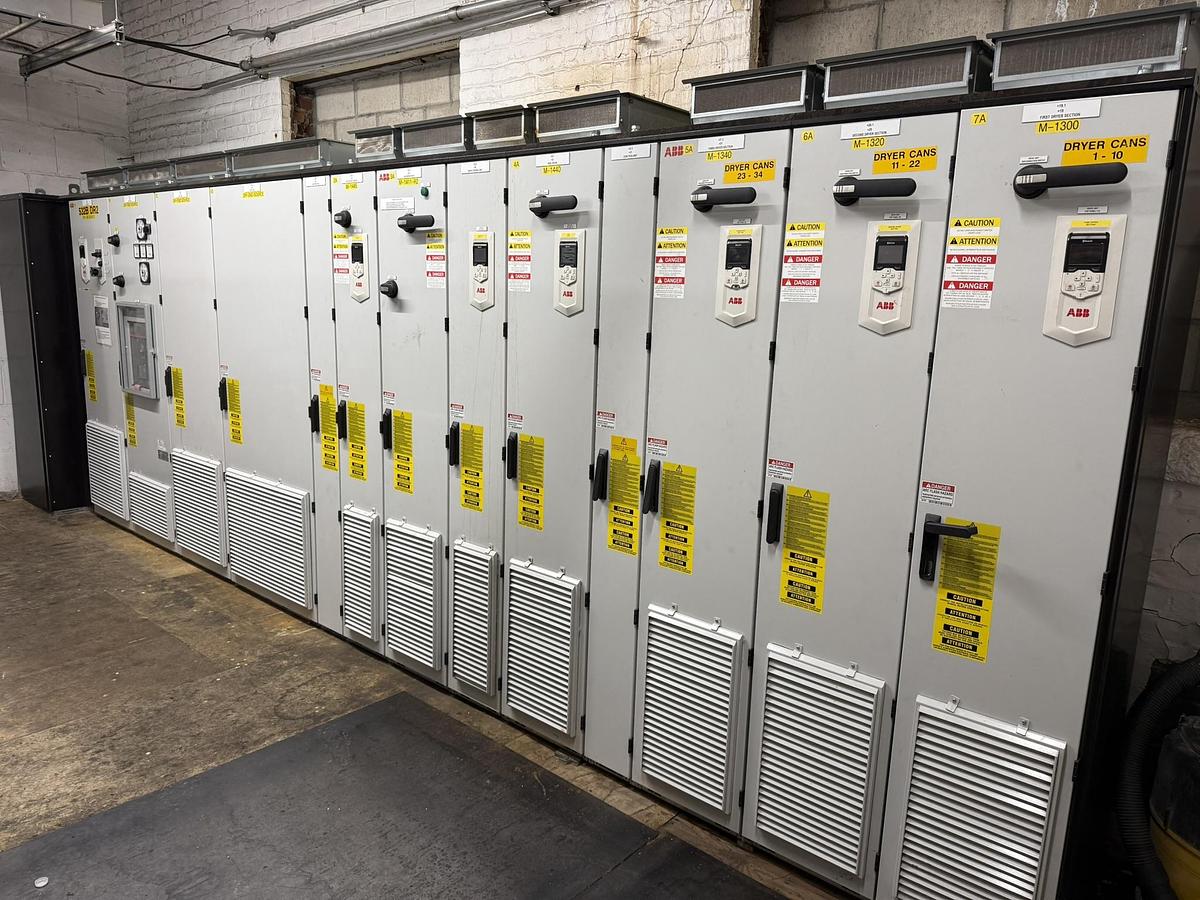

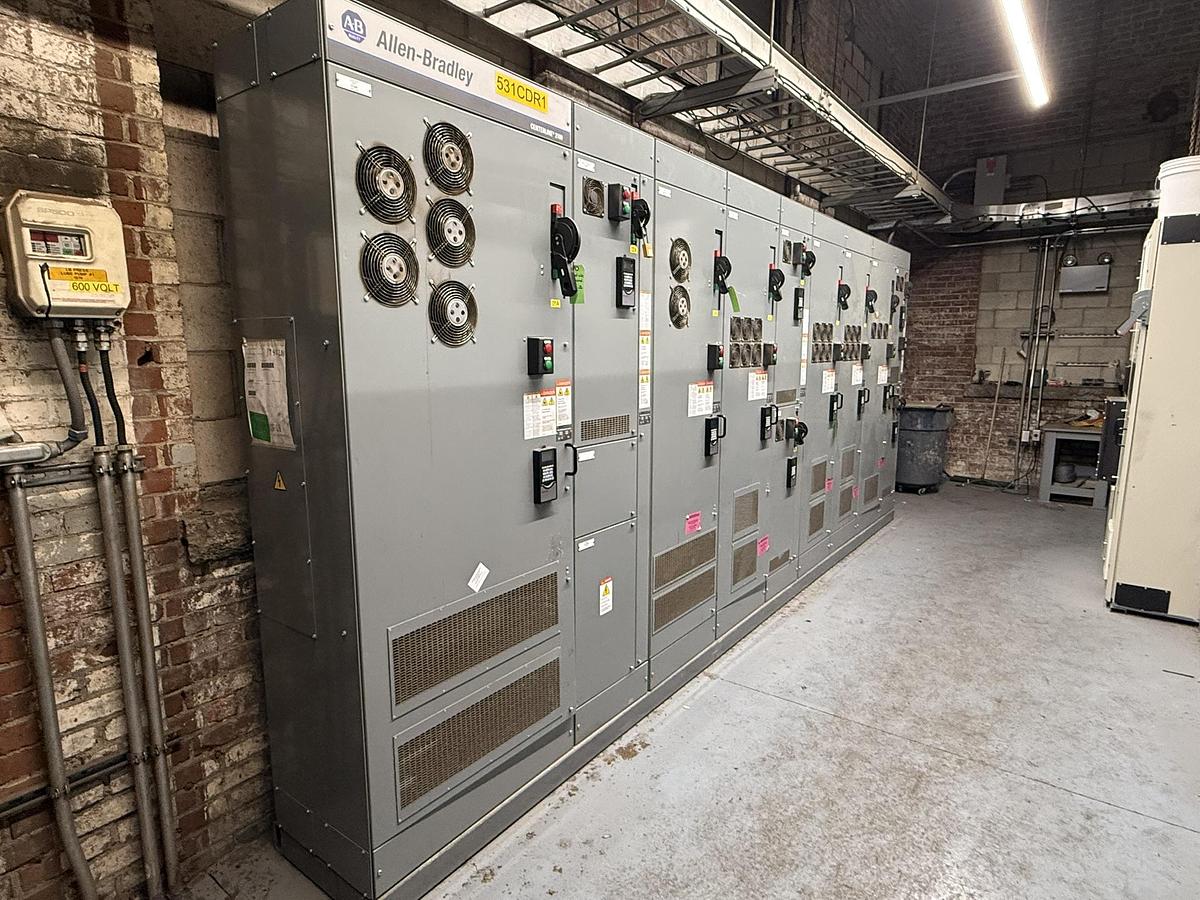

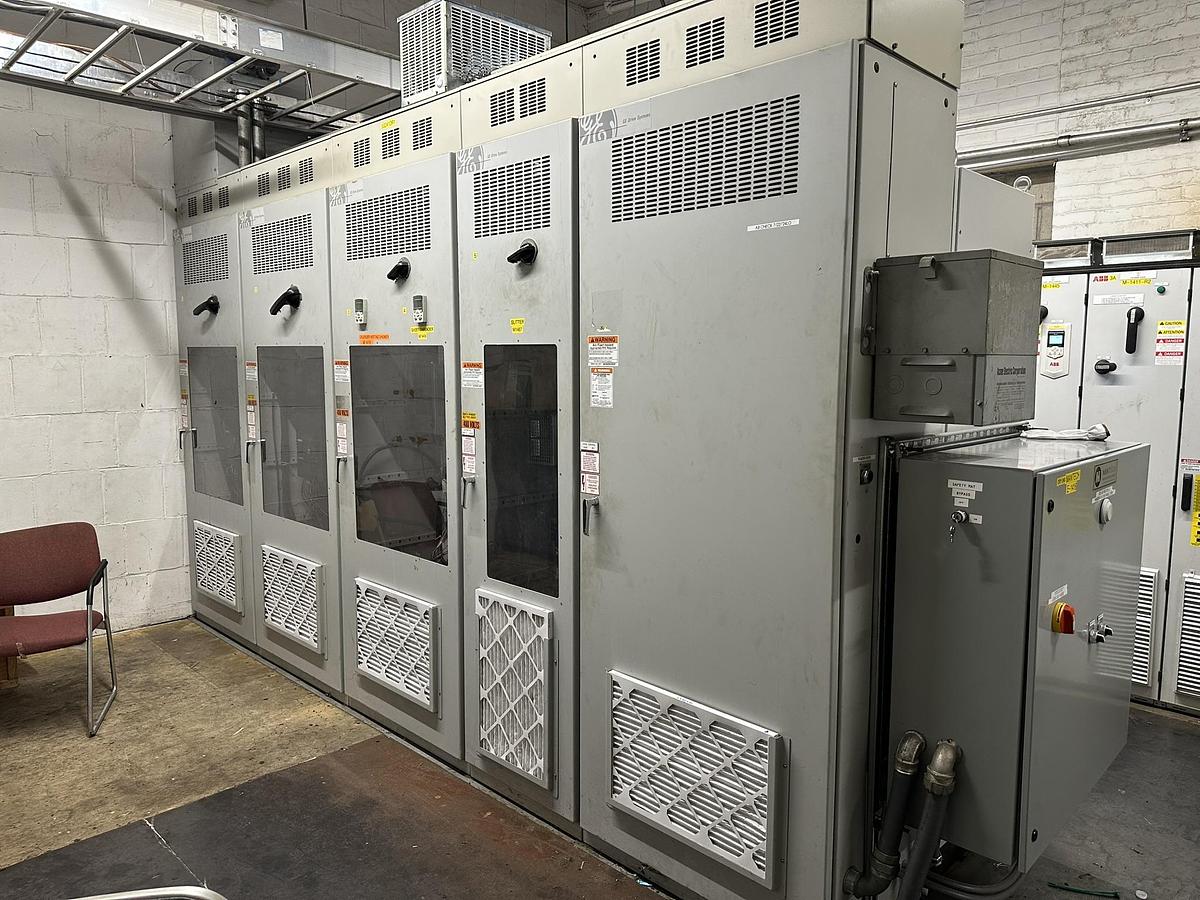

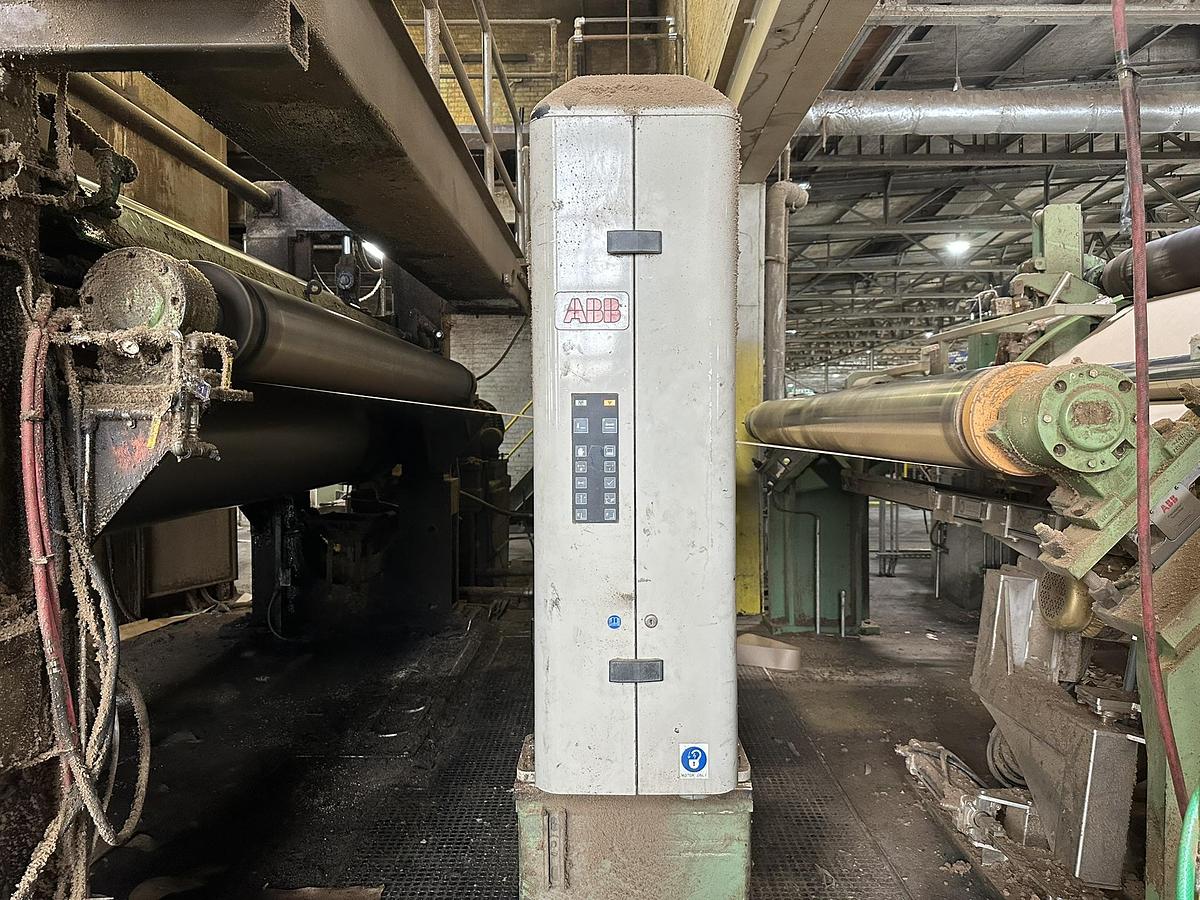

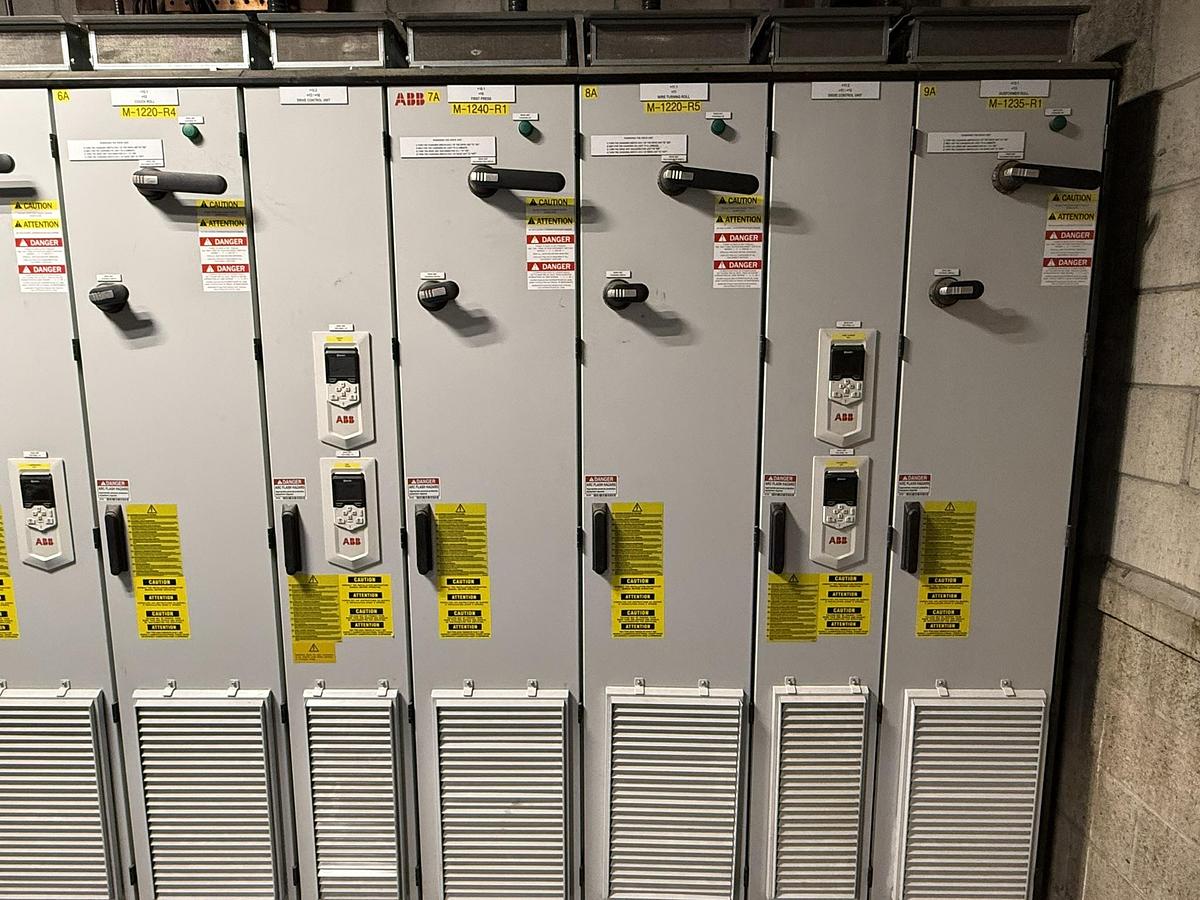

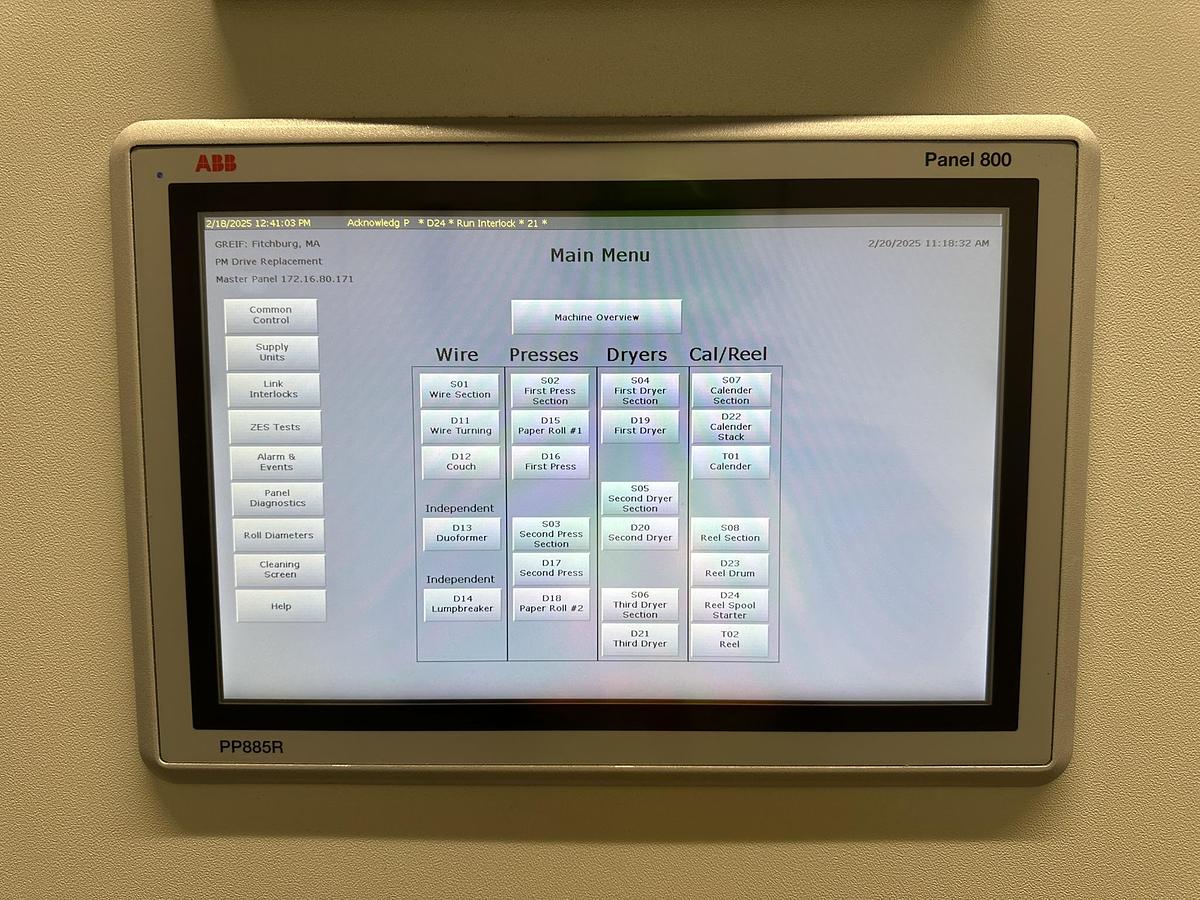

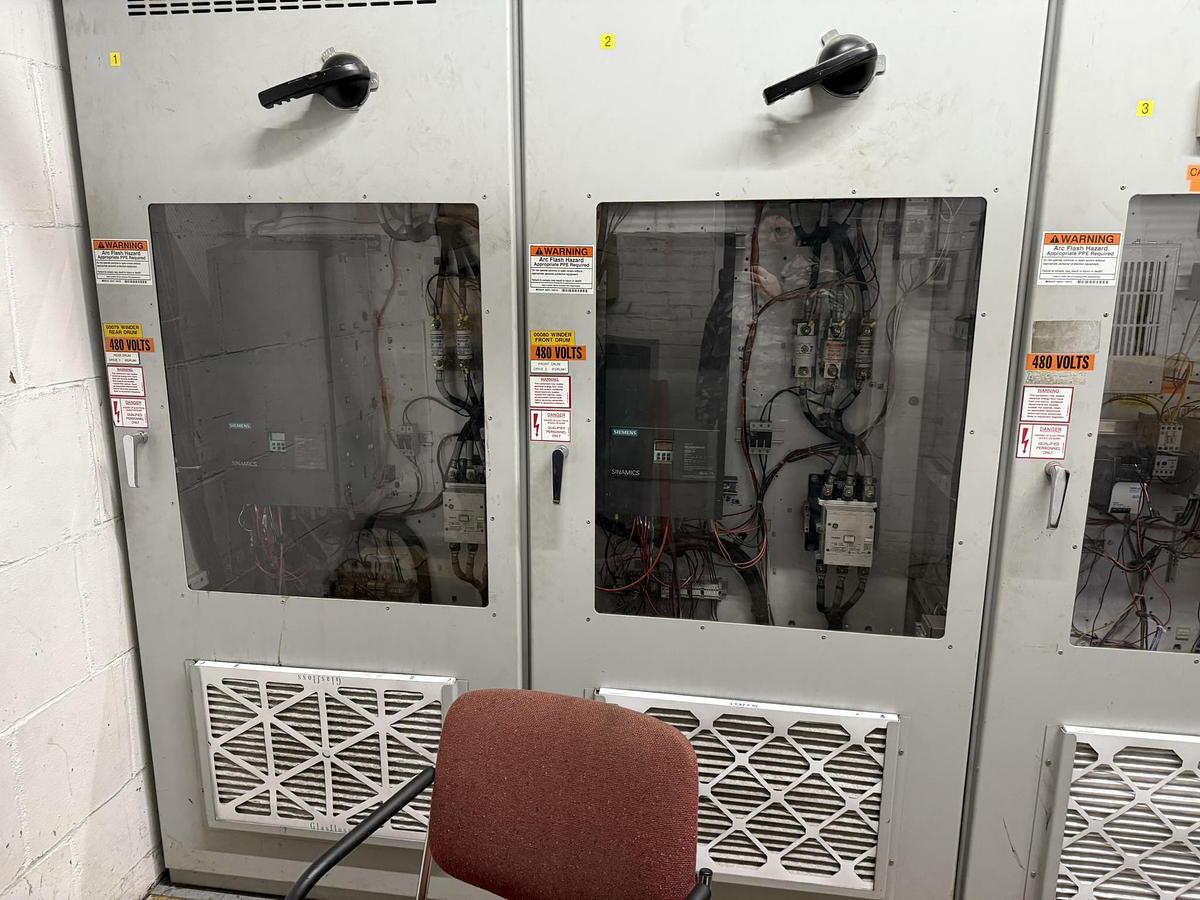

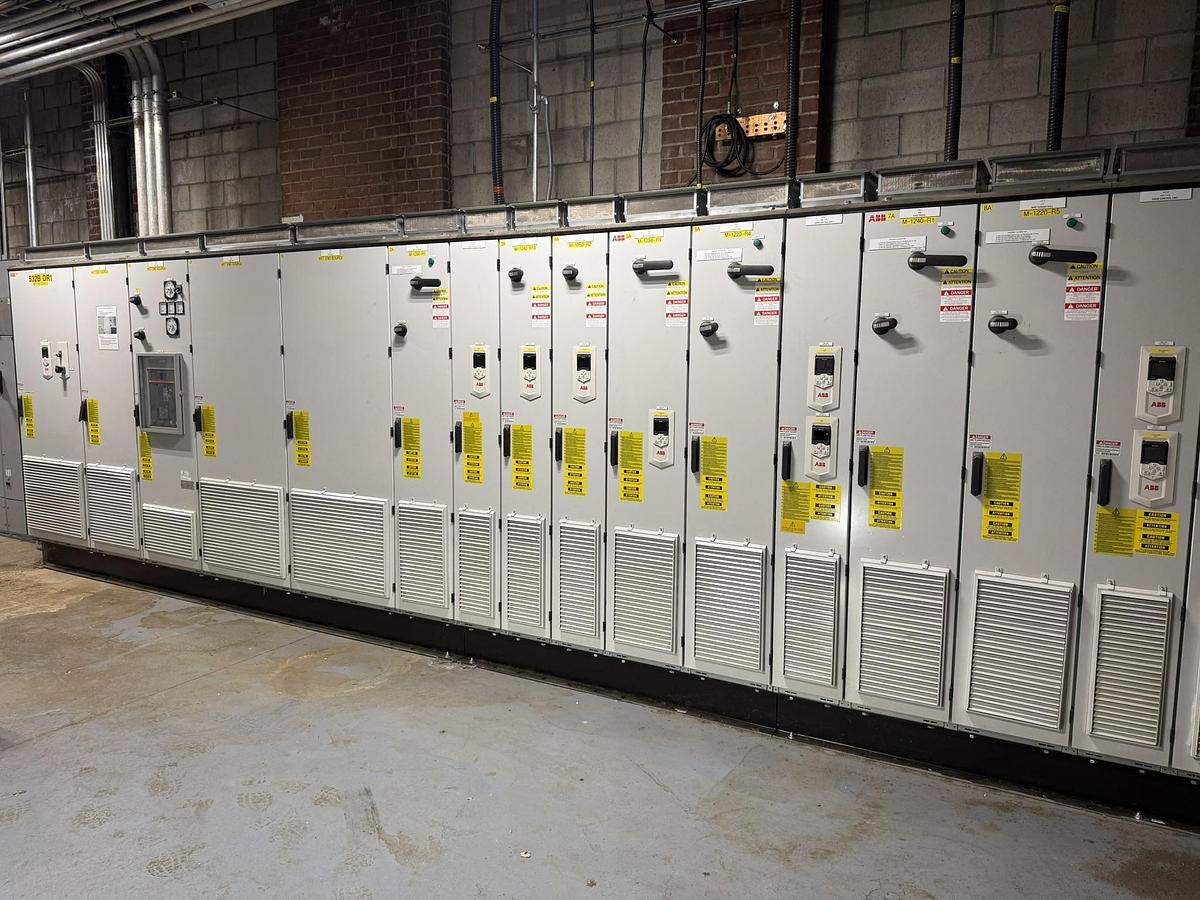

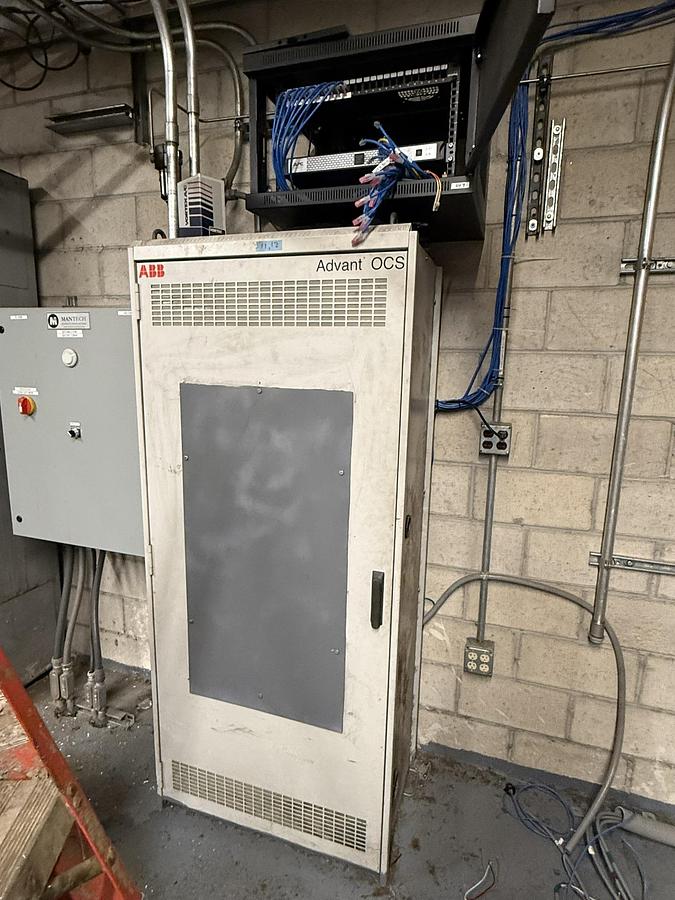

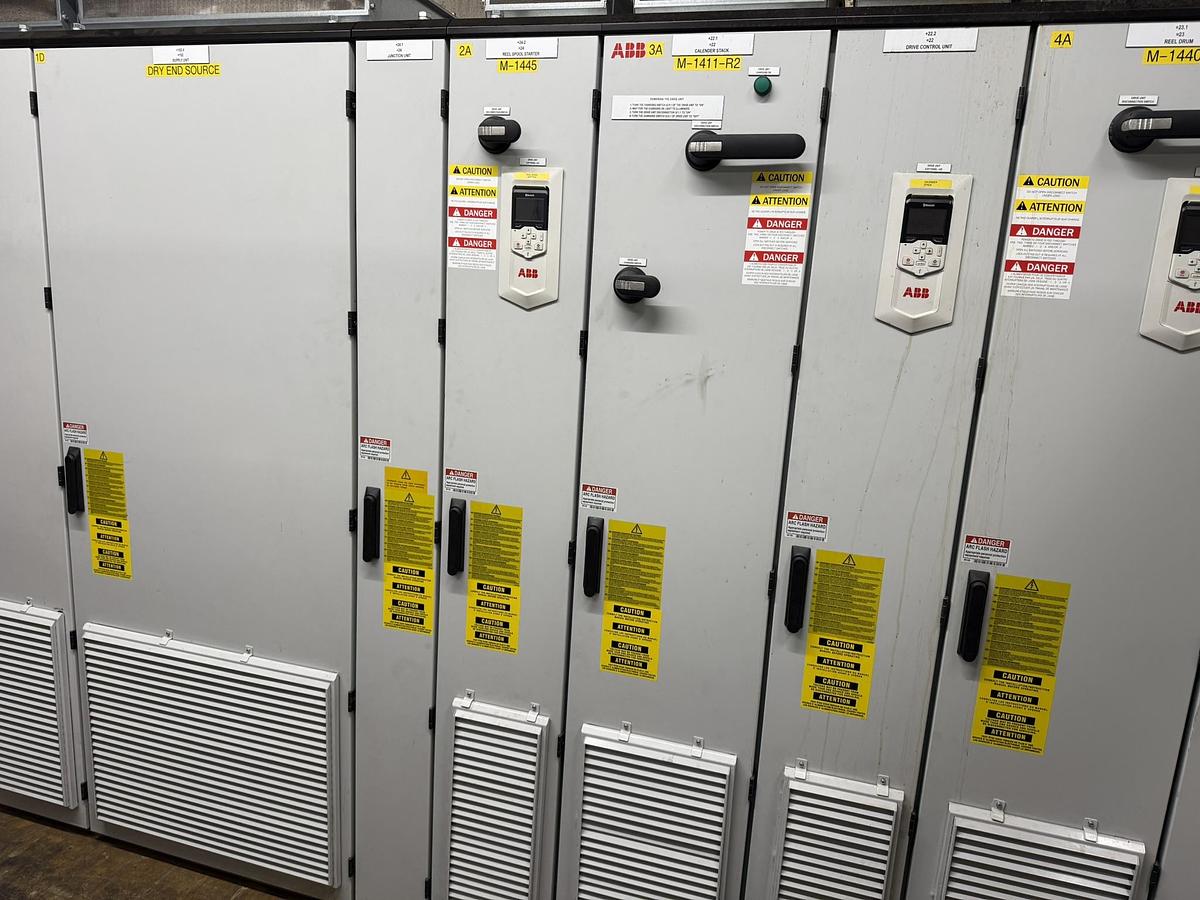

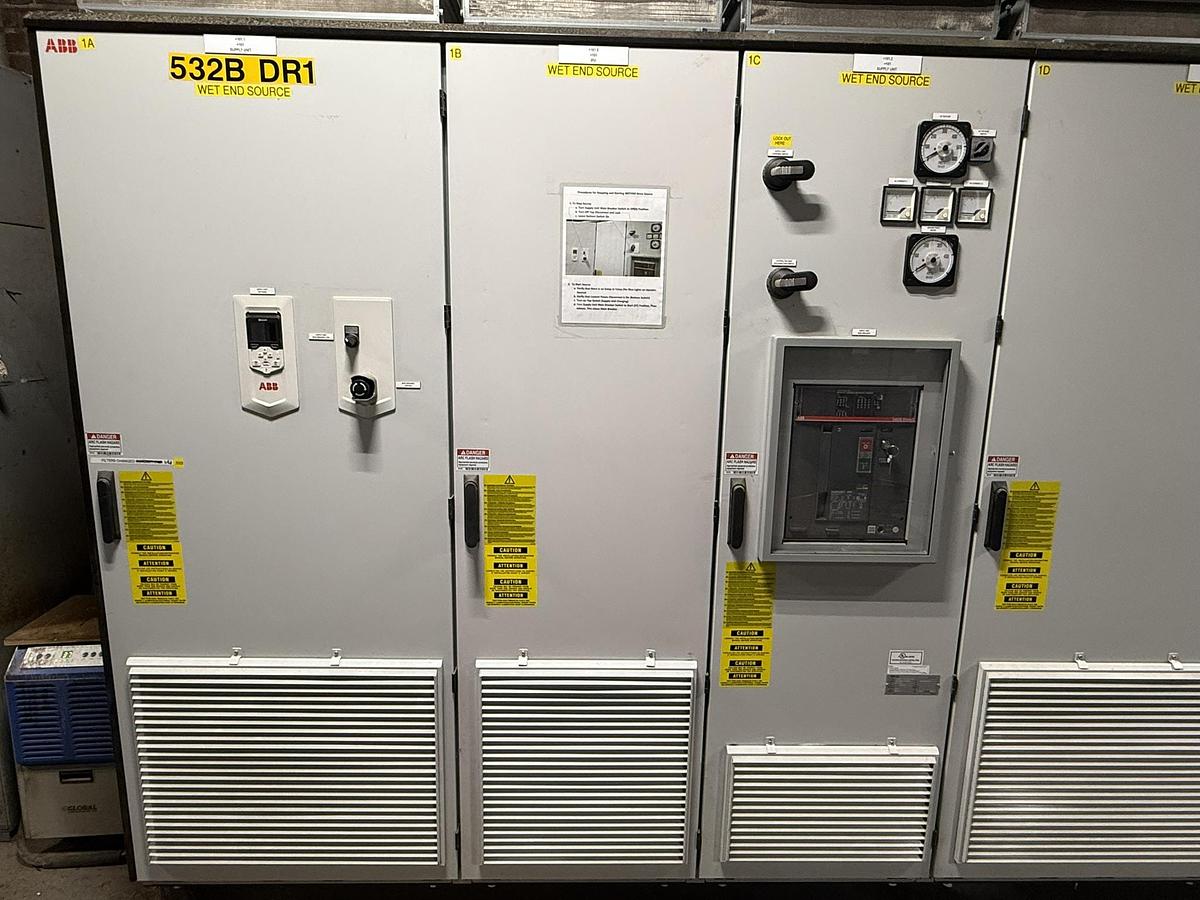

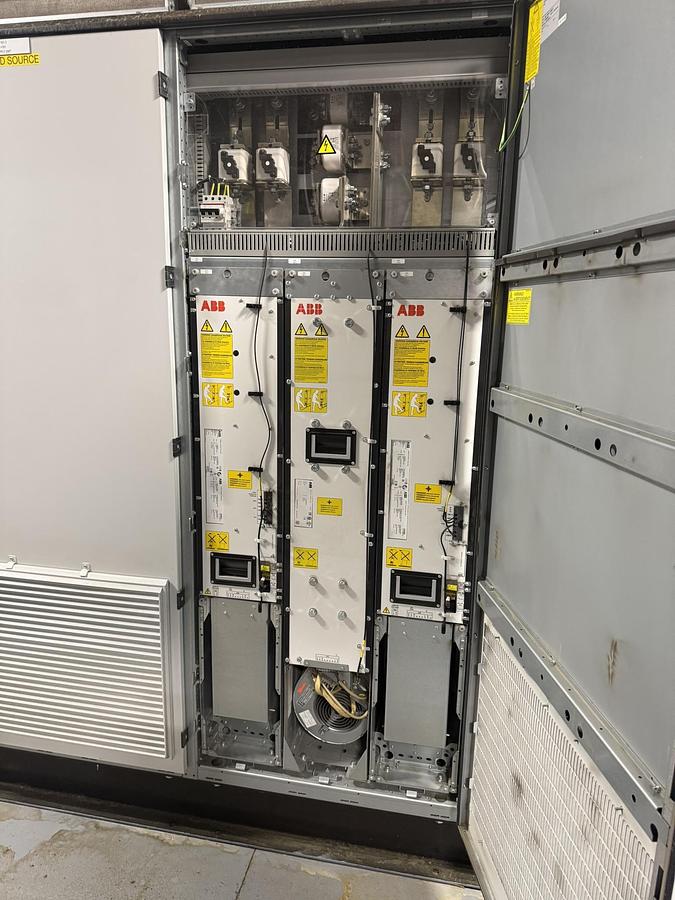

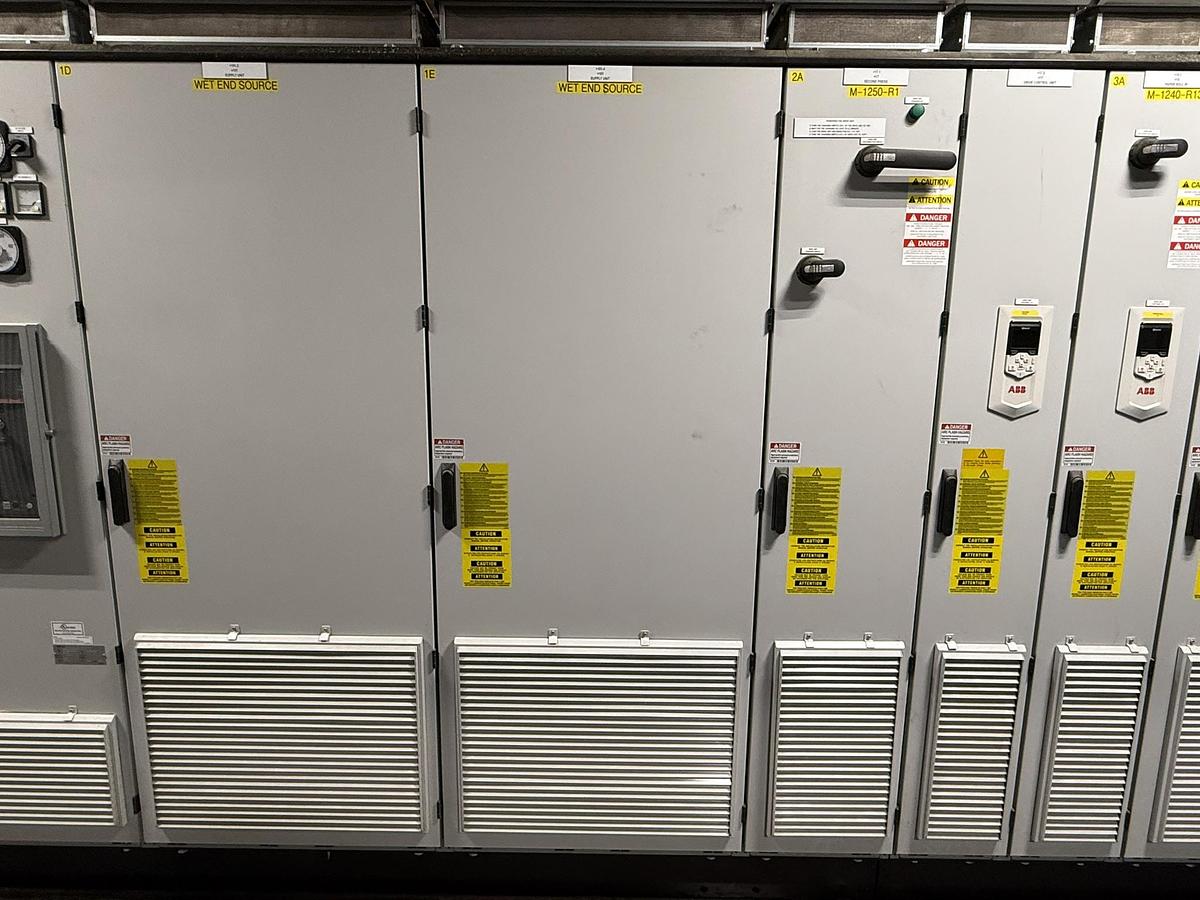

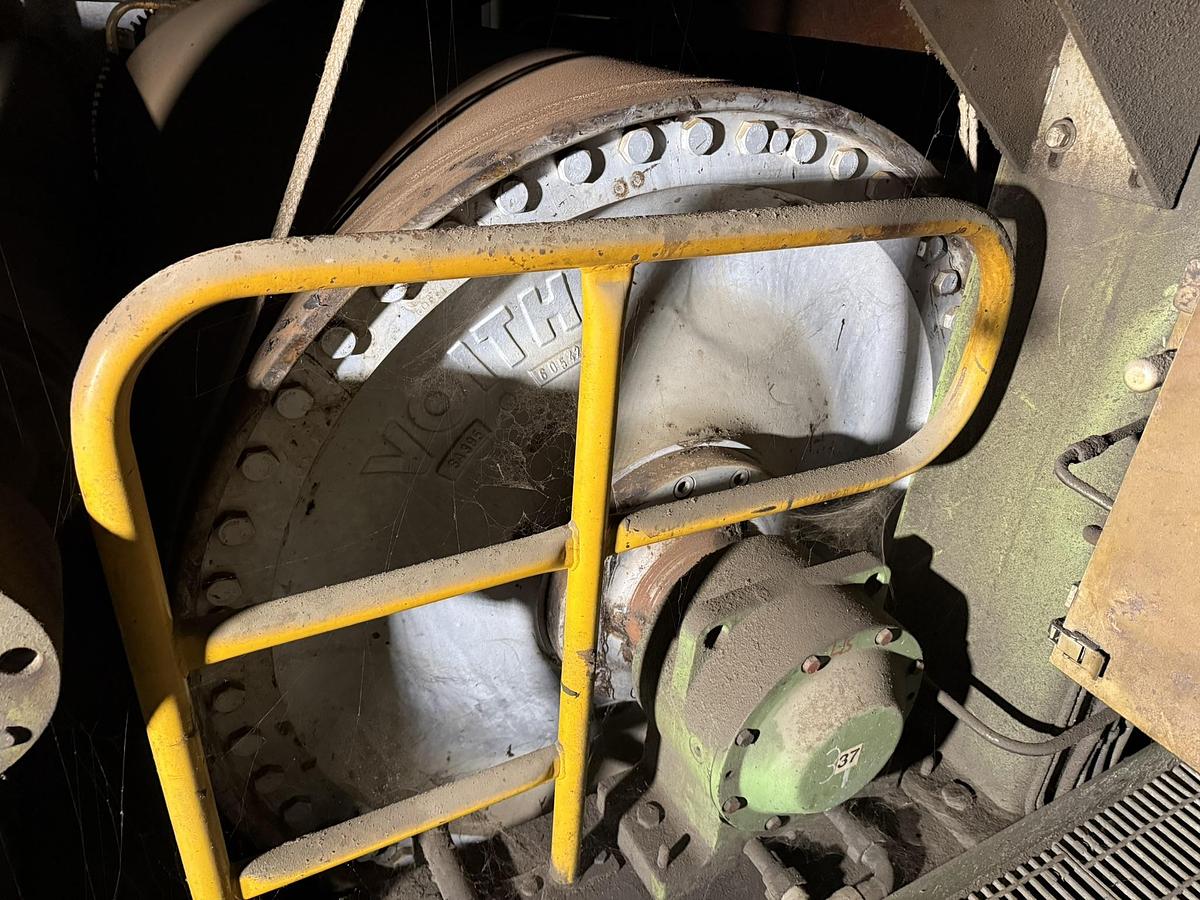

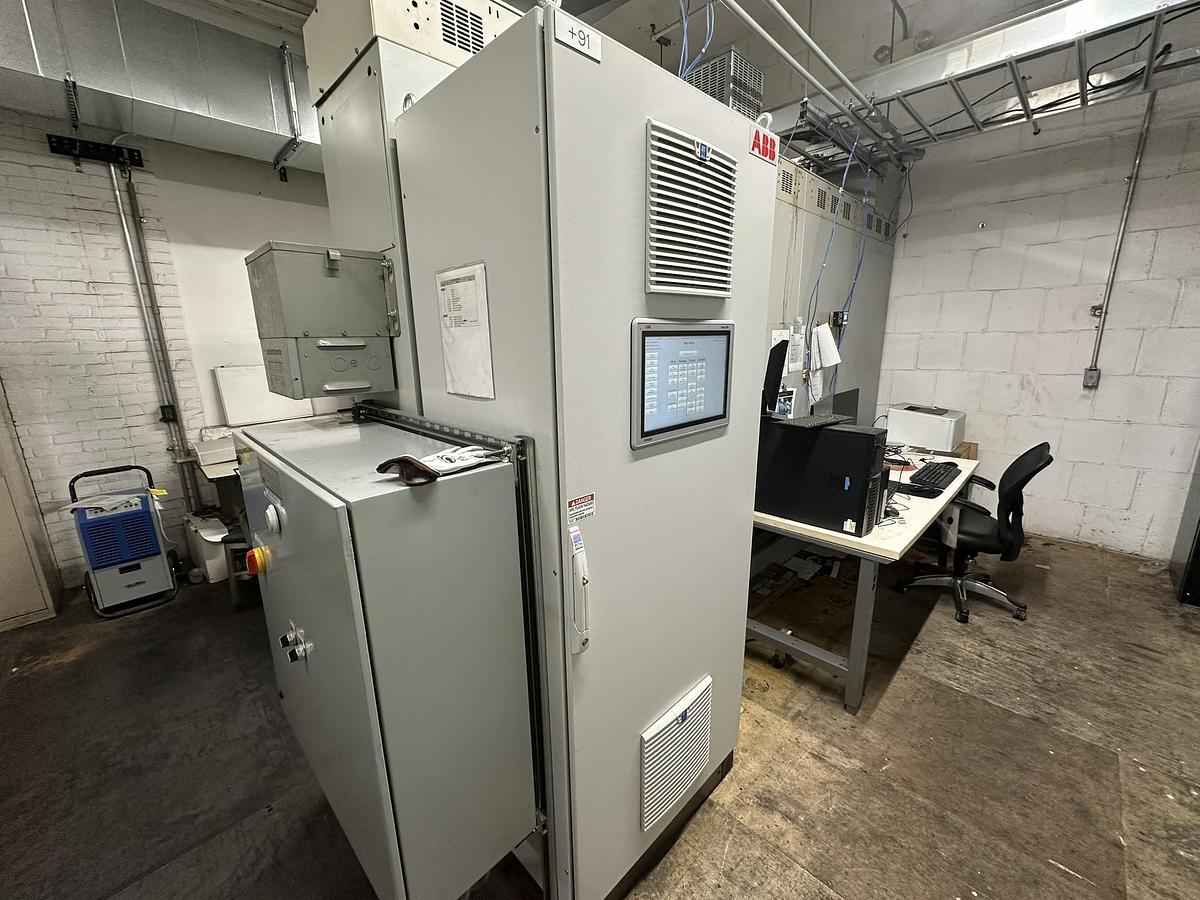

- Complete ABB AC drive upgrade installed 2019
- Left Hand Machine (From Headbox to Winder Motors on left)
General Specifications
- Manufacture Year: 2002
- Basis Weight Range: 200–600 g/m²
- Linerboard Range: 33# to 70# (per 1,000 sq ft)
- Tube & Core Stock: 17 pt to 30 pt
- Wire Width: 134"
- Design Speed: 2,000 FPM (610 m/min)
- Operating Speed: 1,500 FPM
- Daily Production: Reported 375–420 TPD

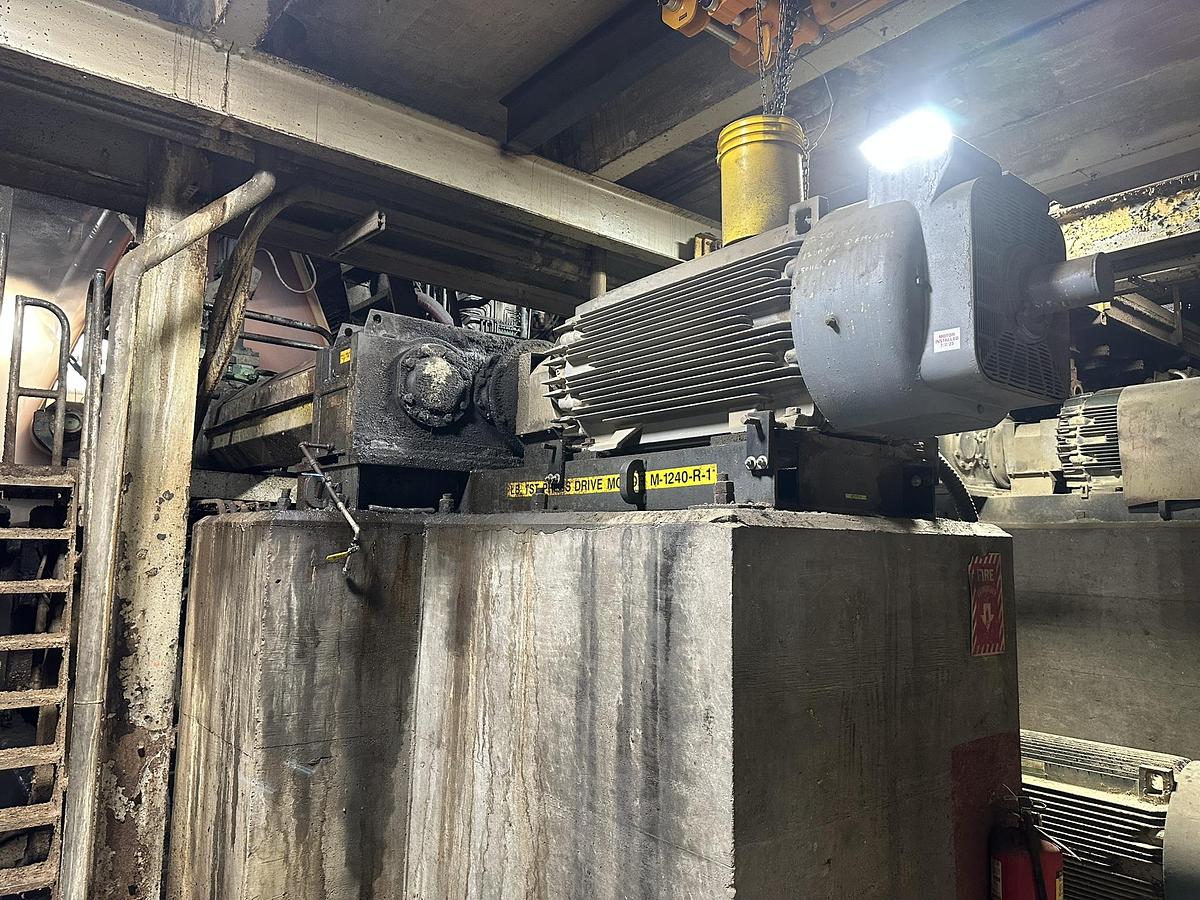

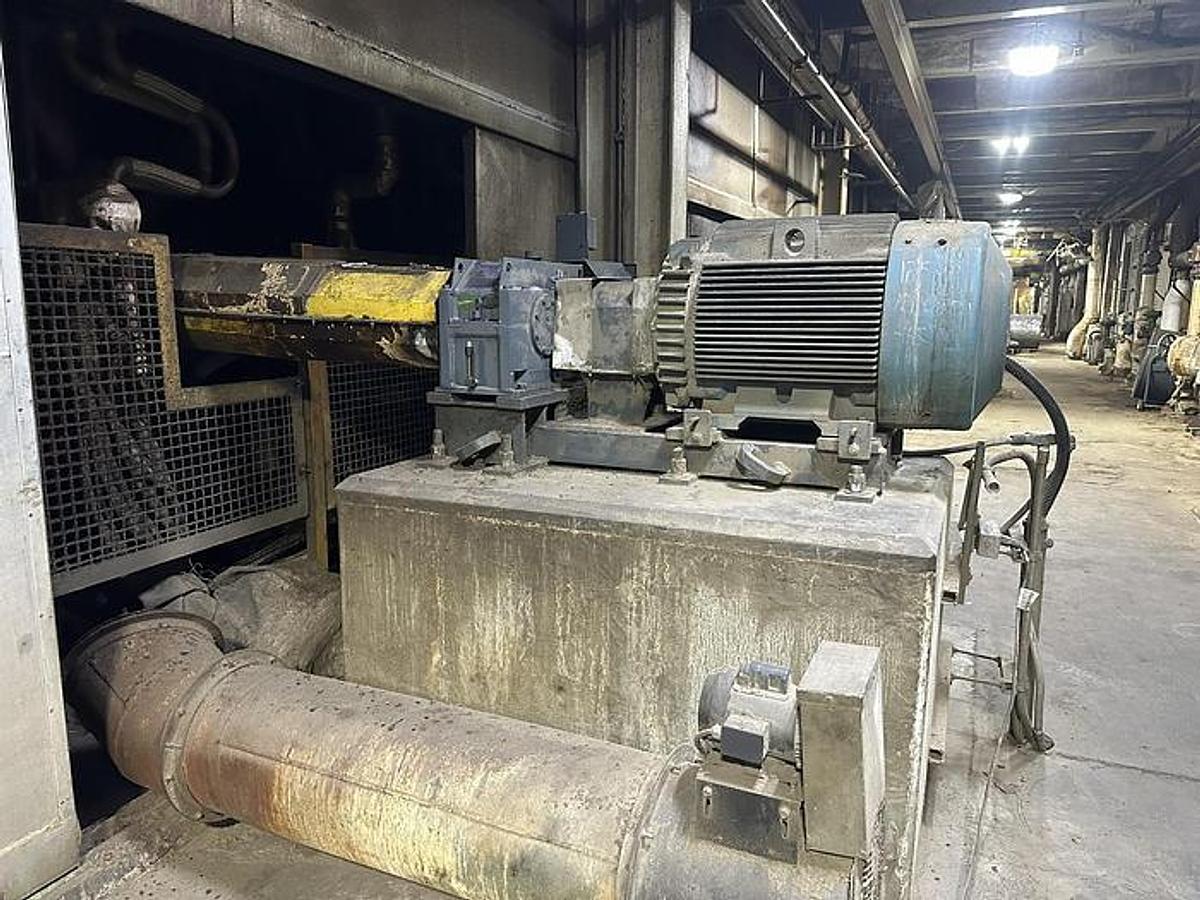

- Drive System: Fully updated to allow future 2,000 FPM capability (some motors/gearboxes may need replacement)

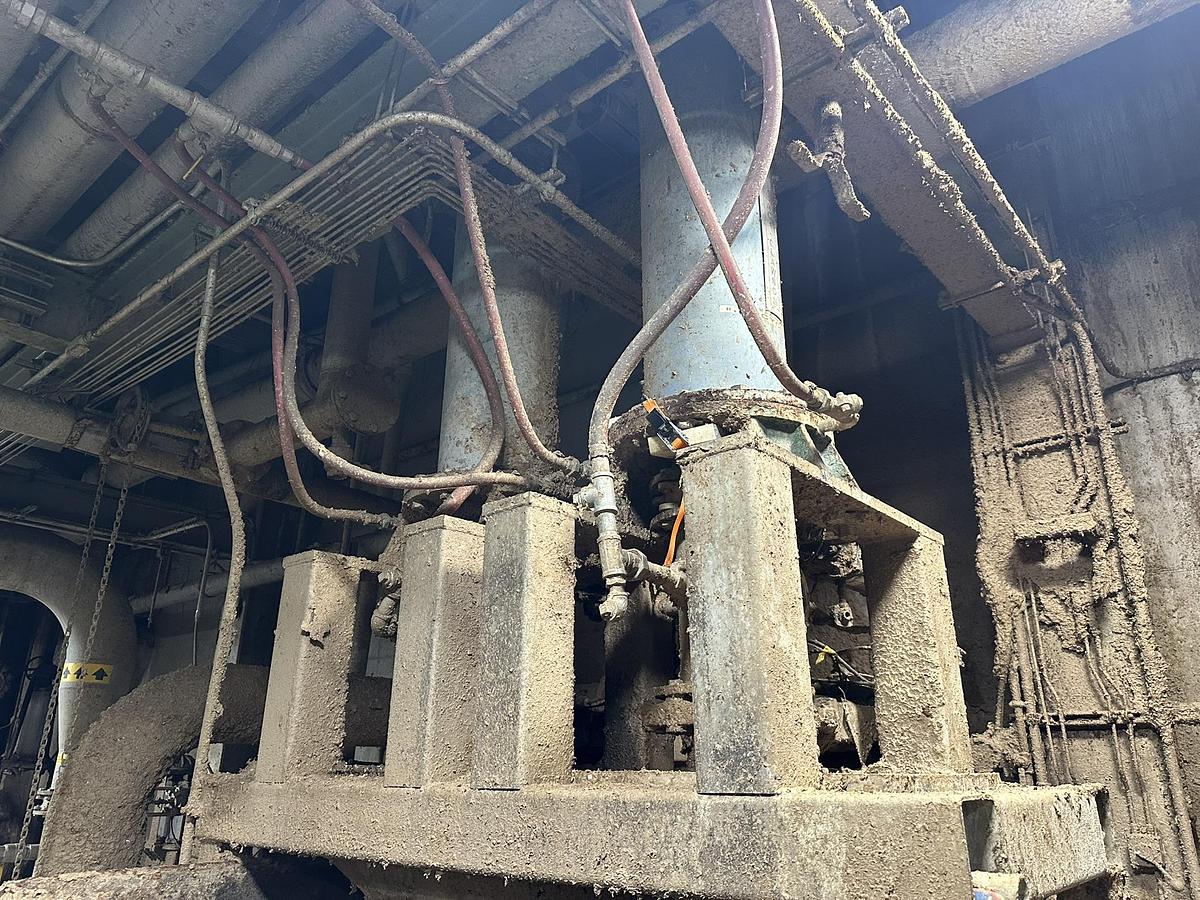

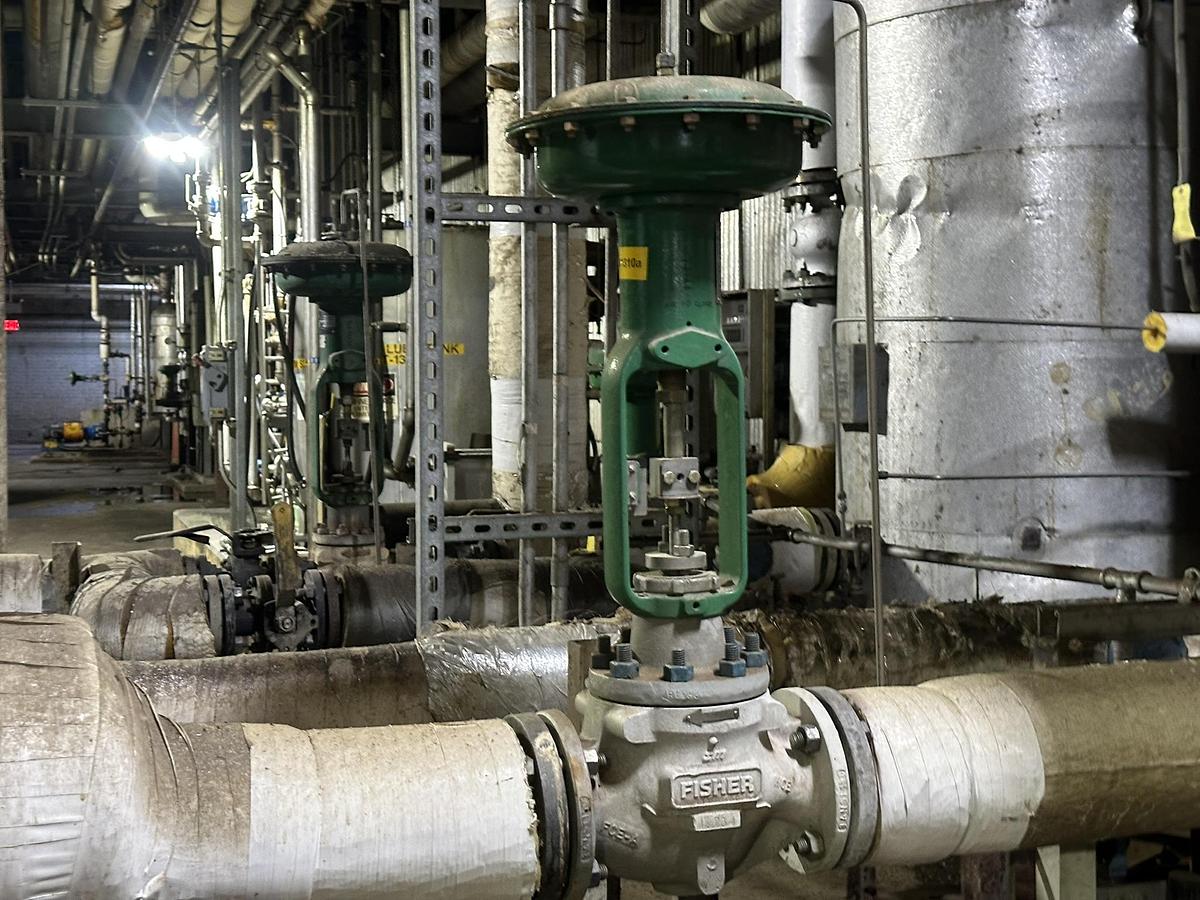

Approach Flow System:

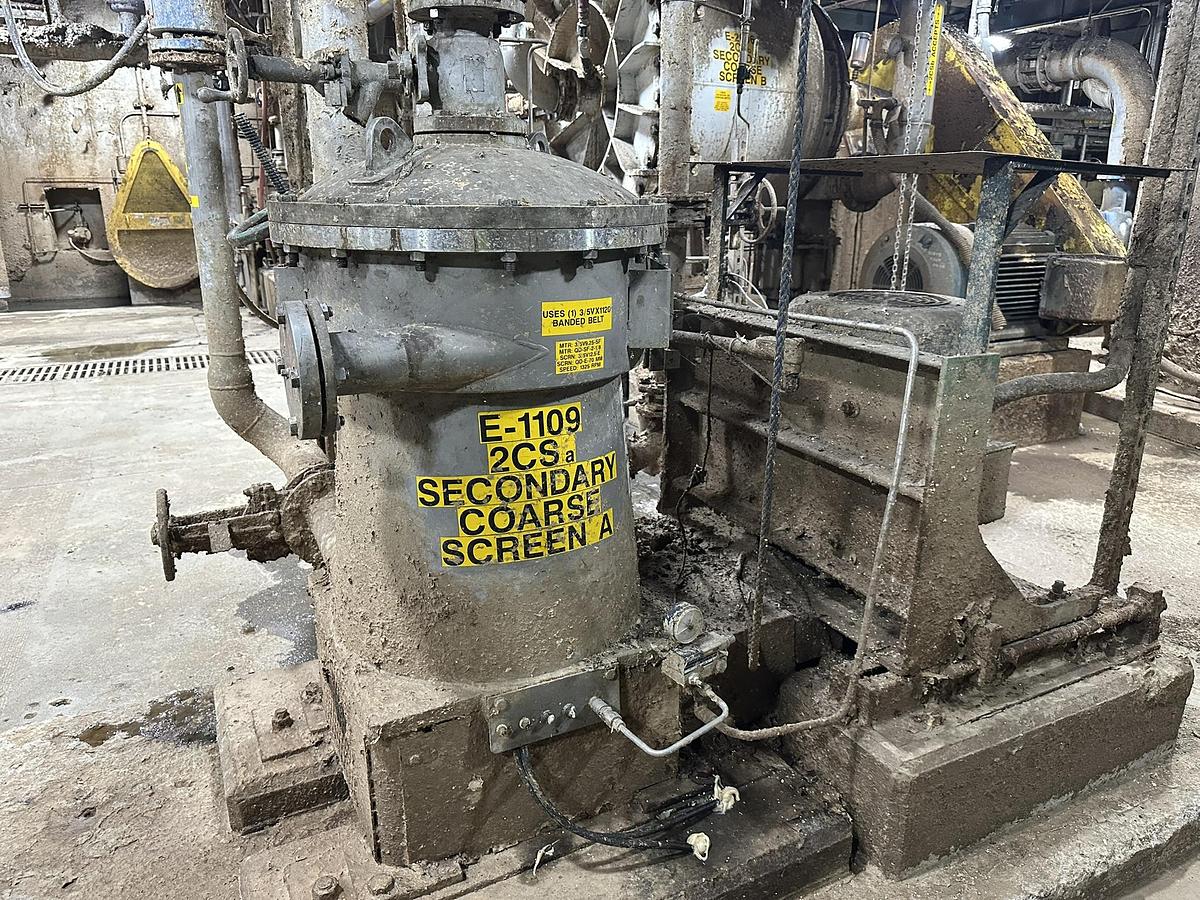

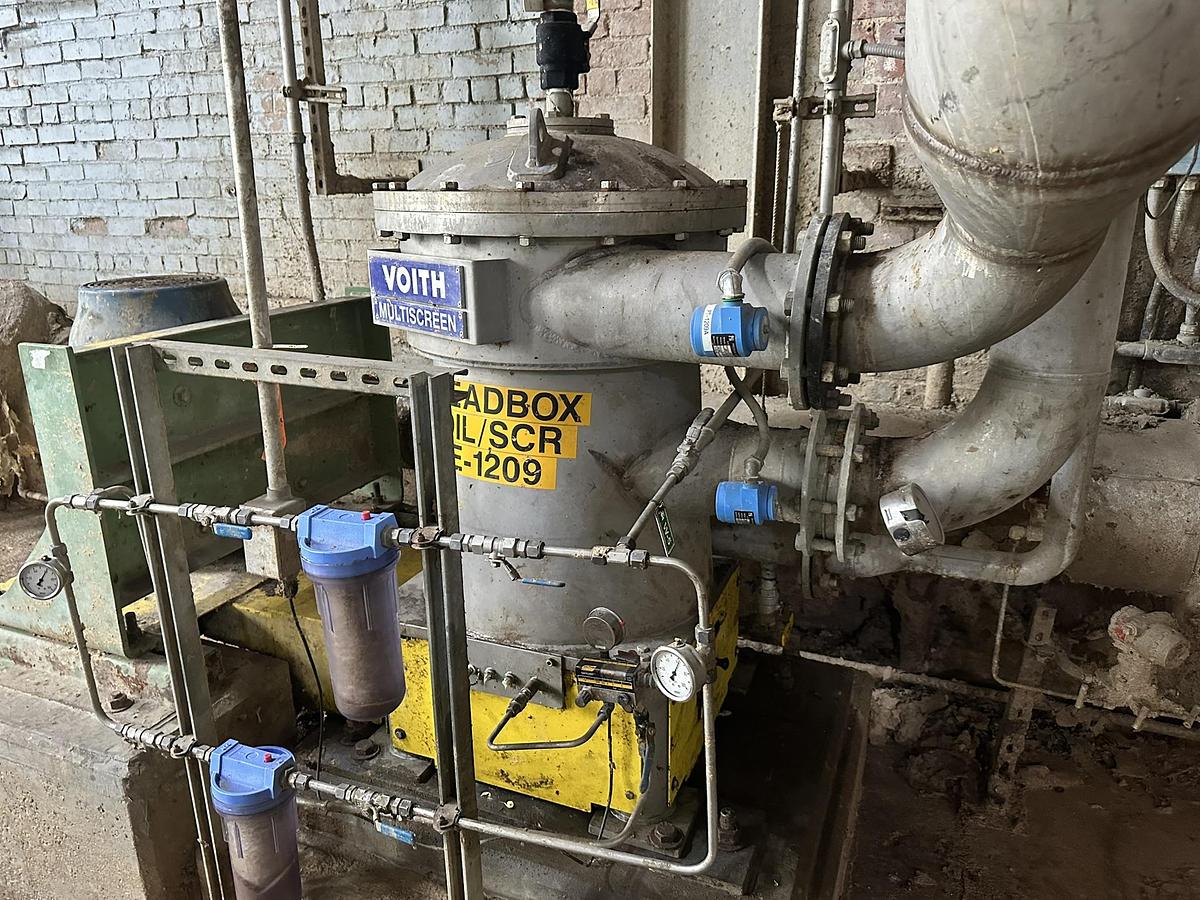

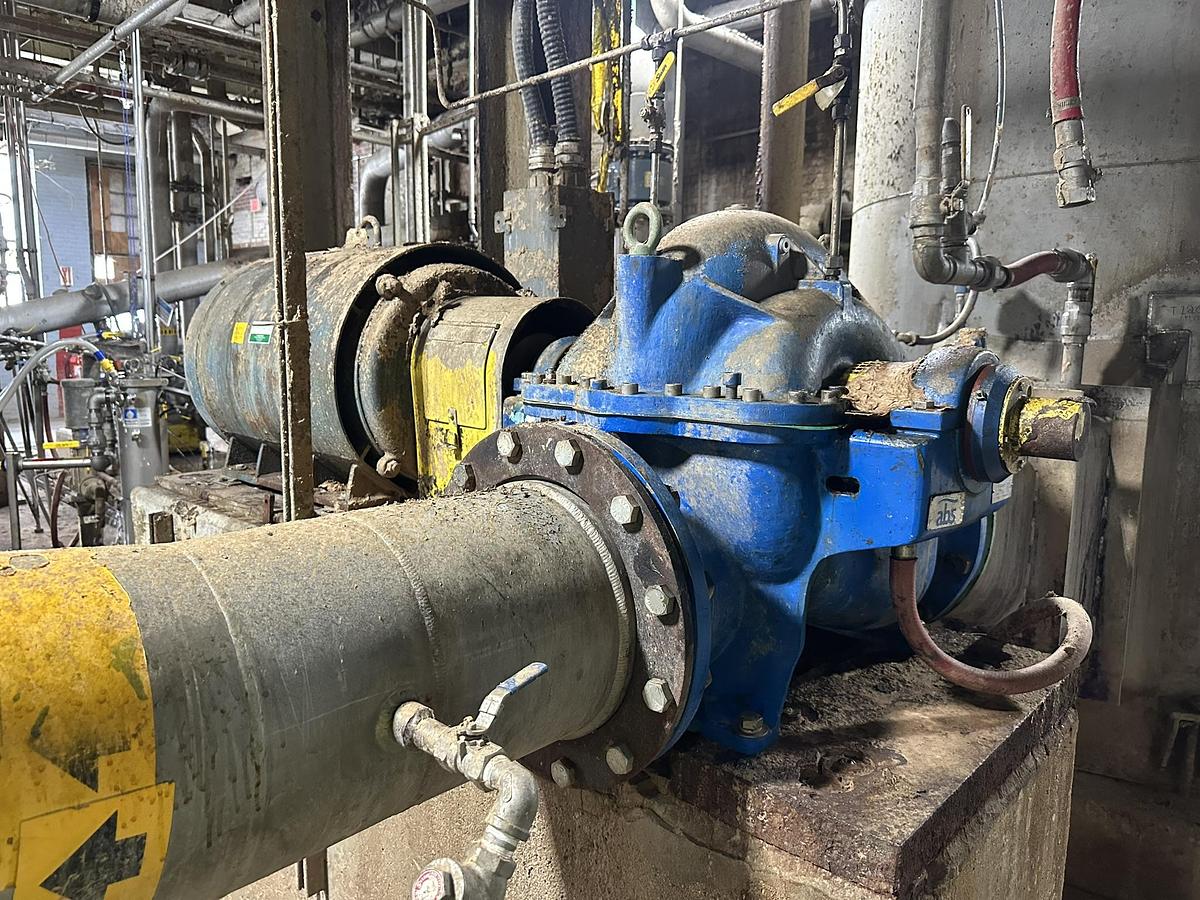

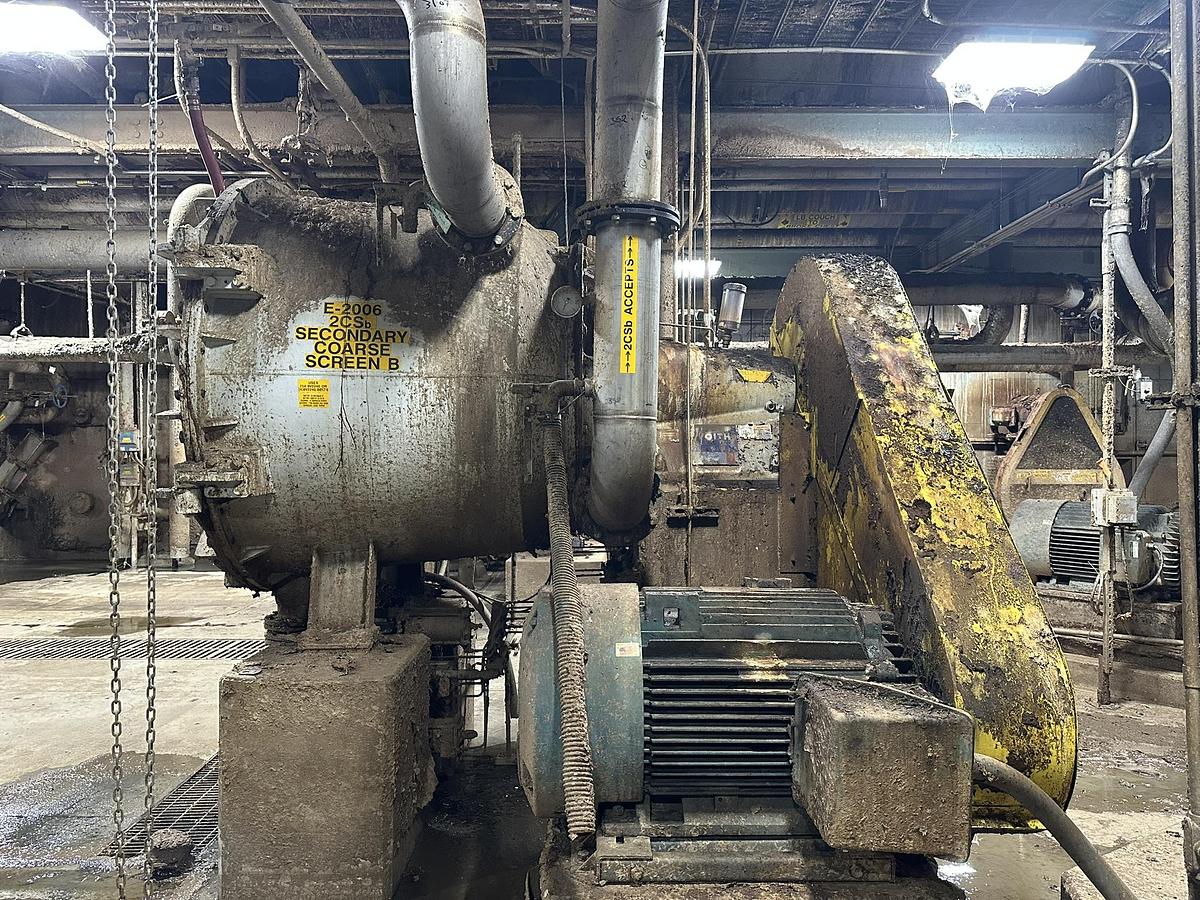

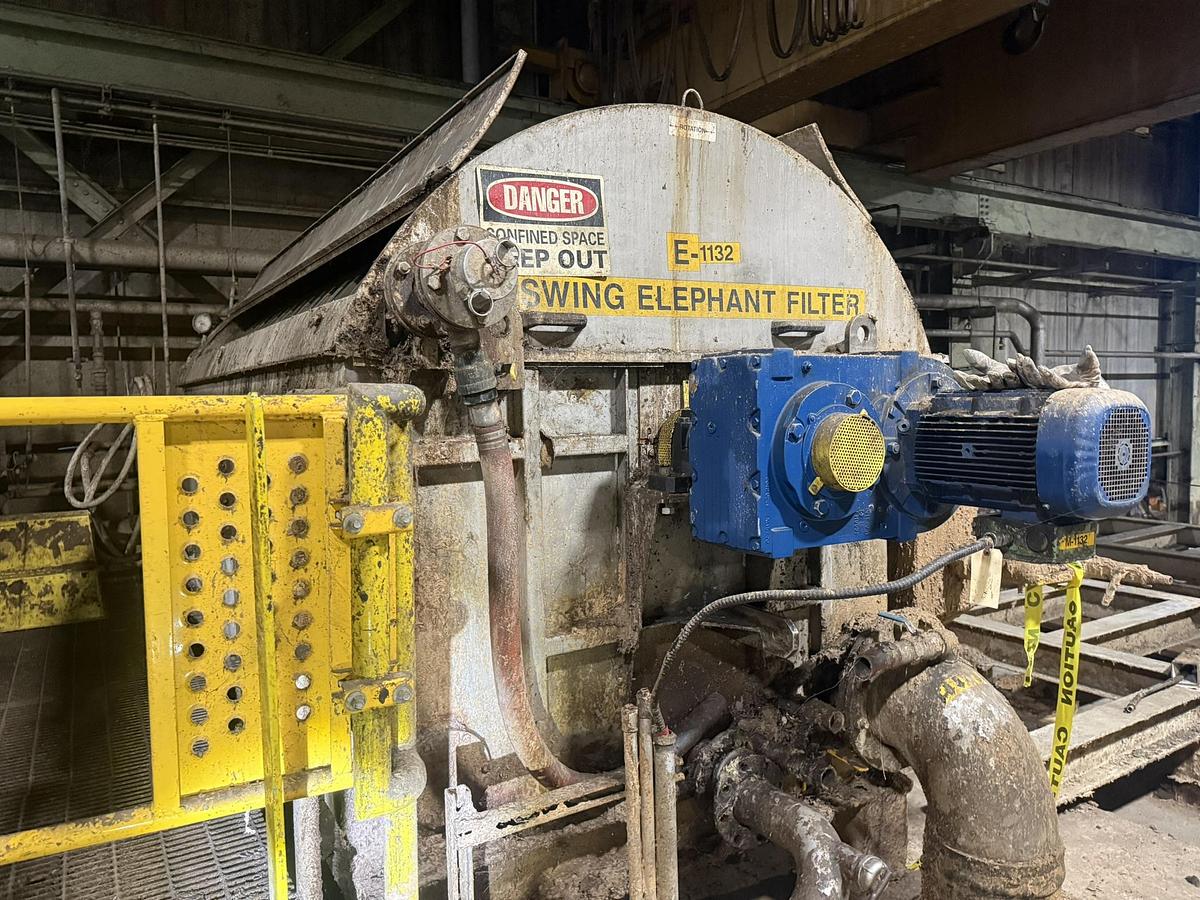

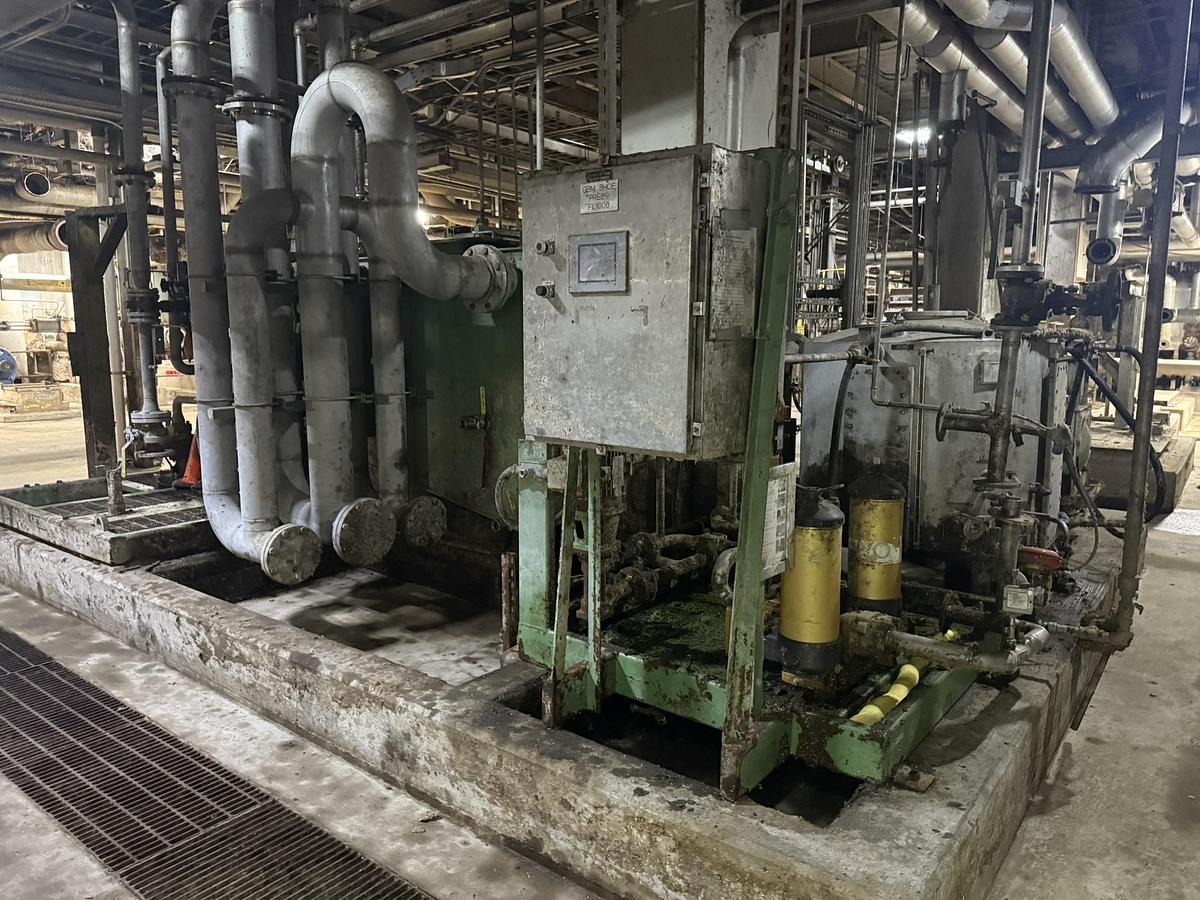

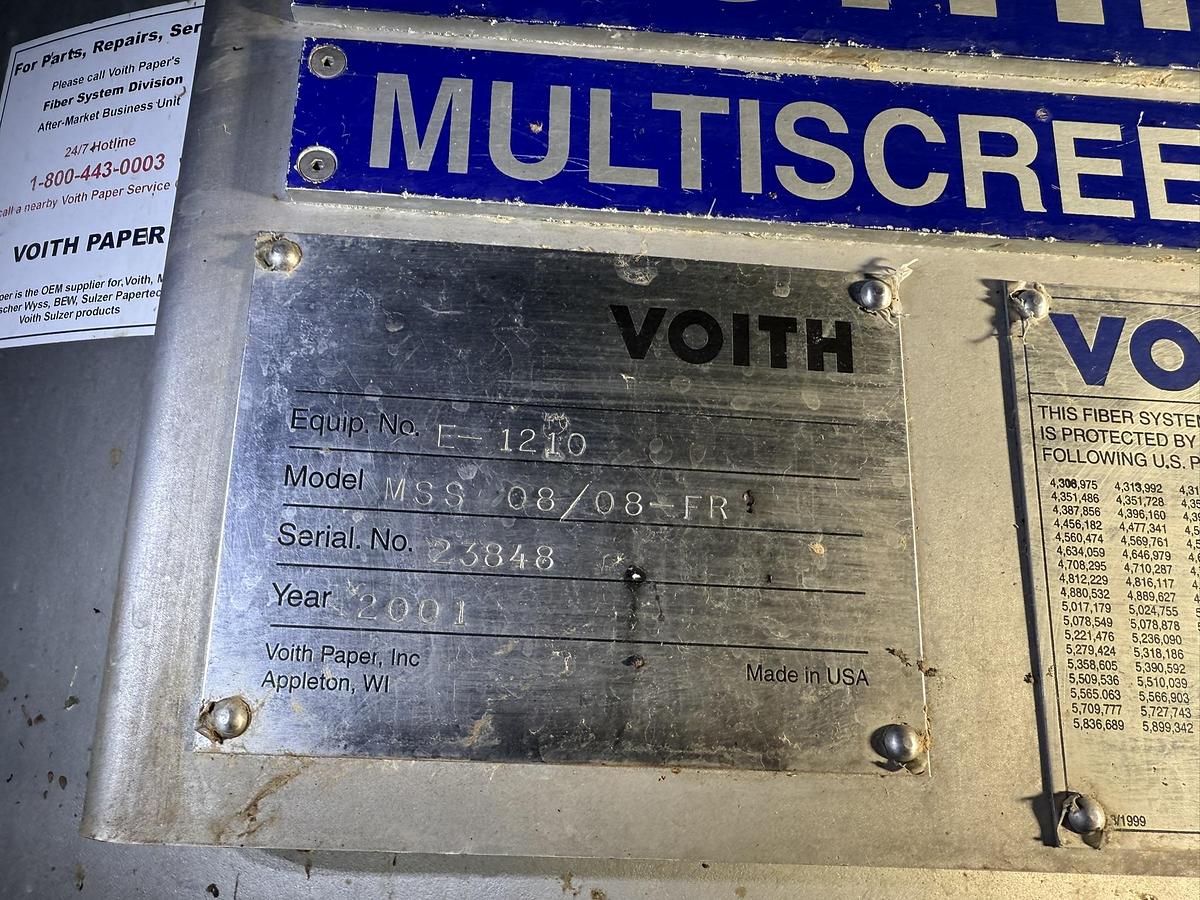

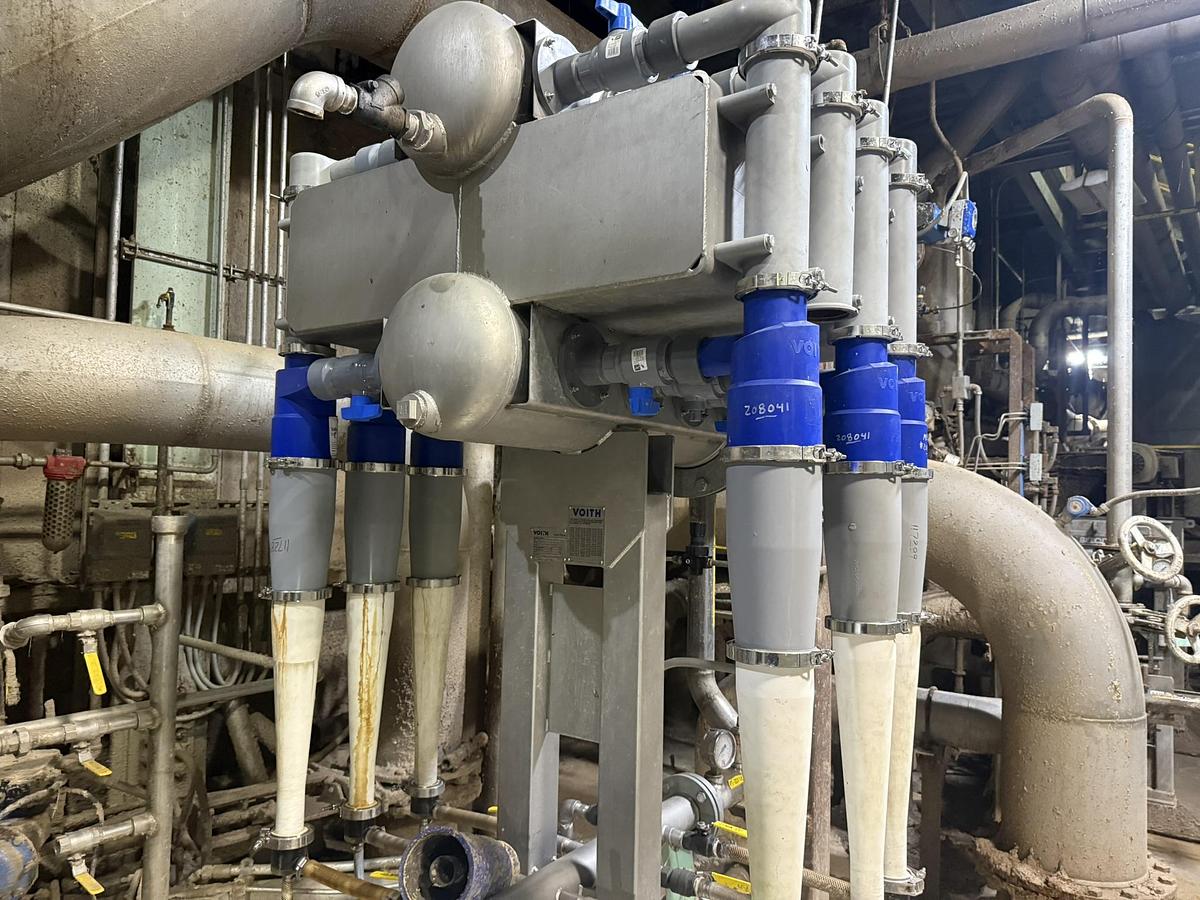

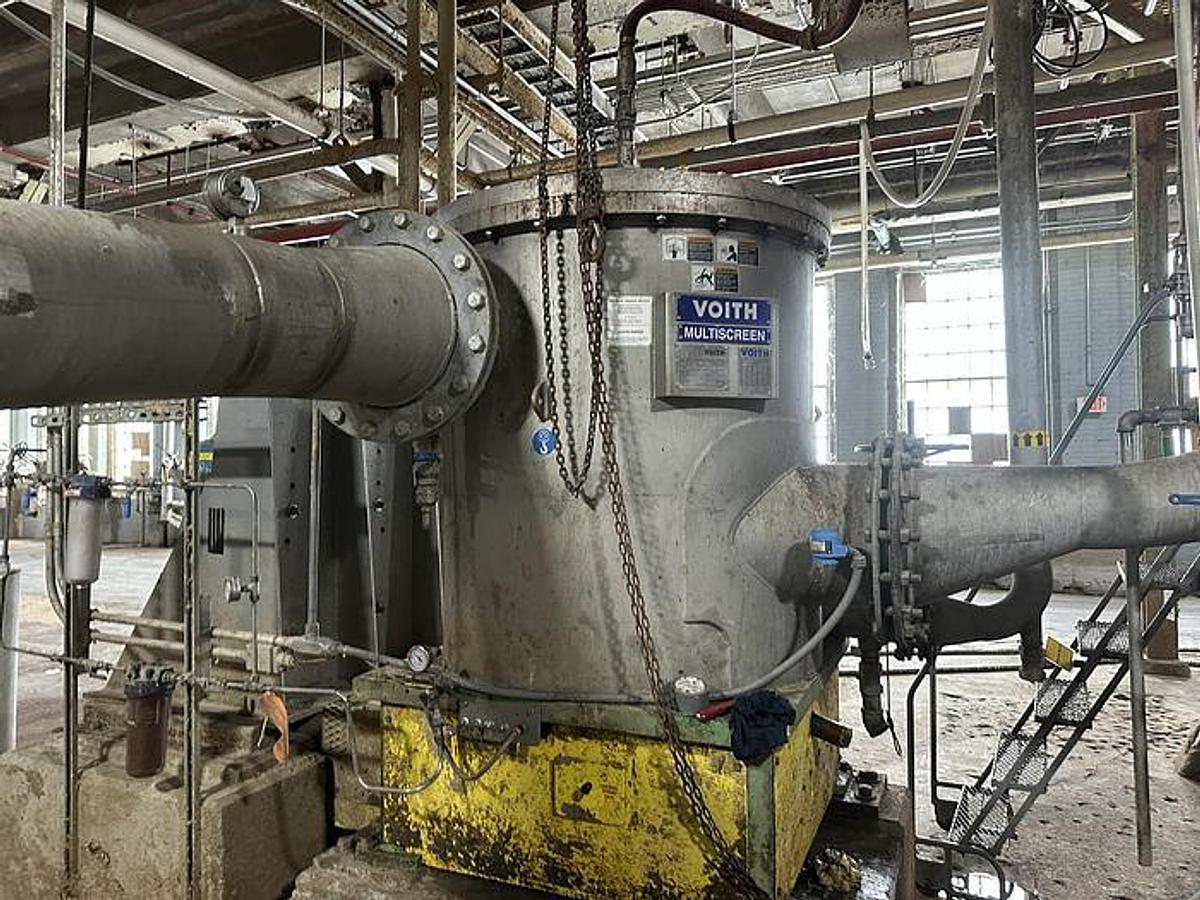

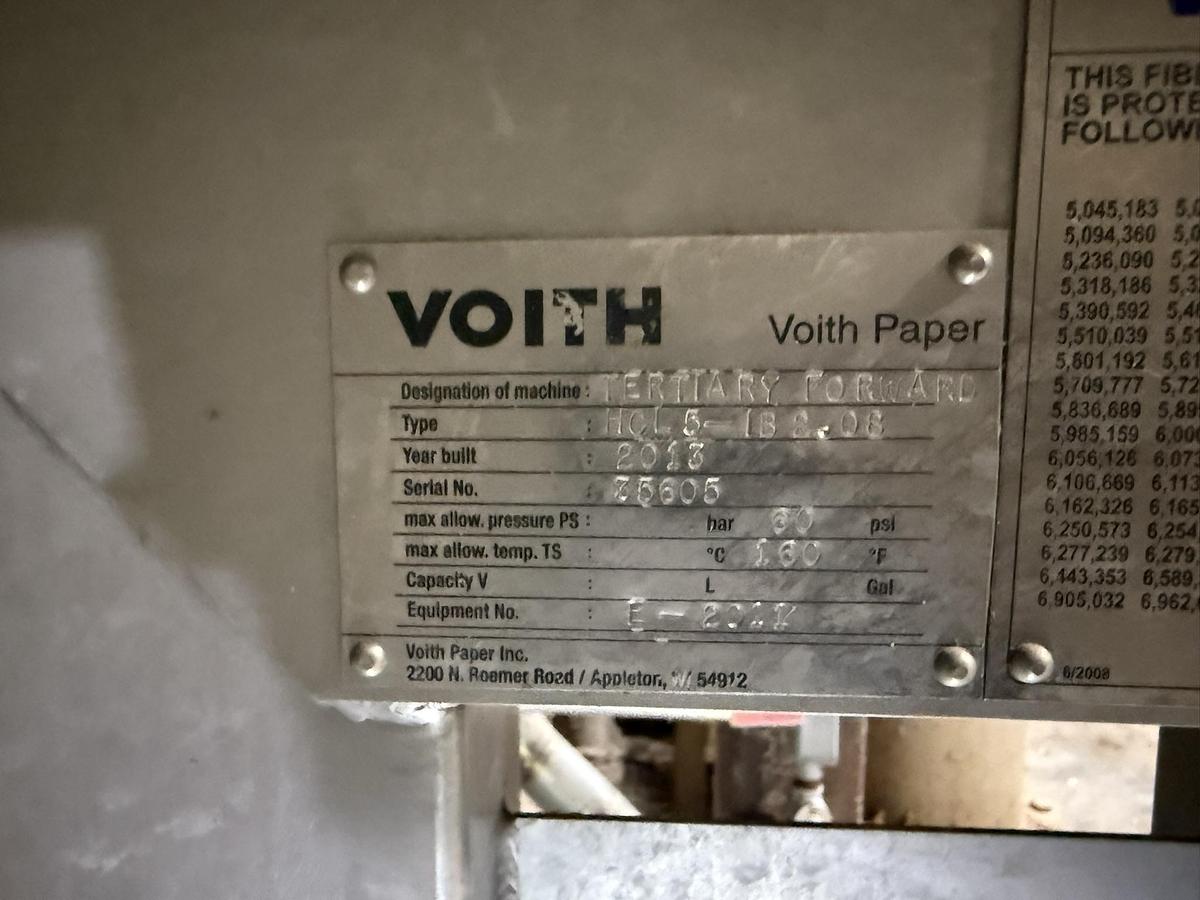

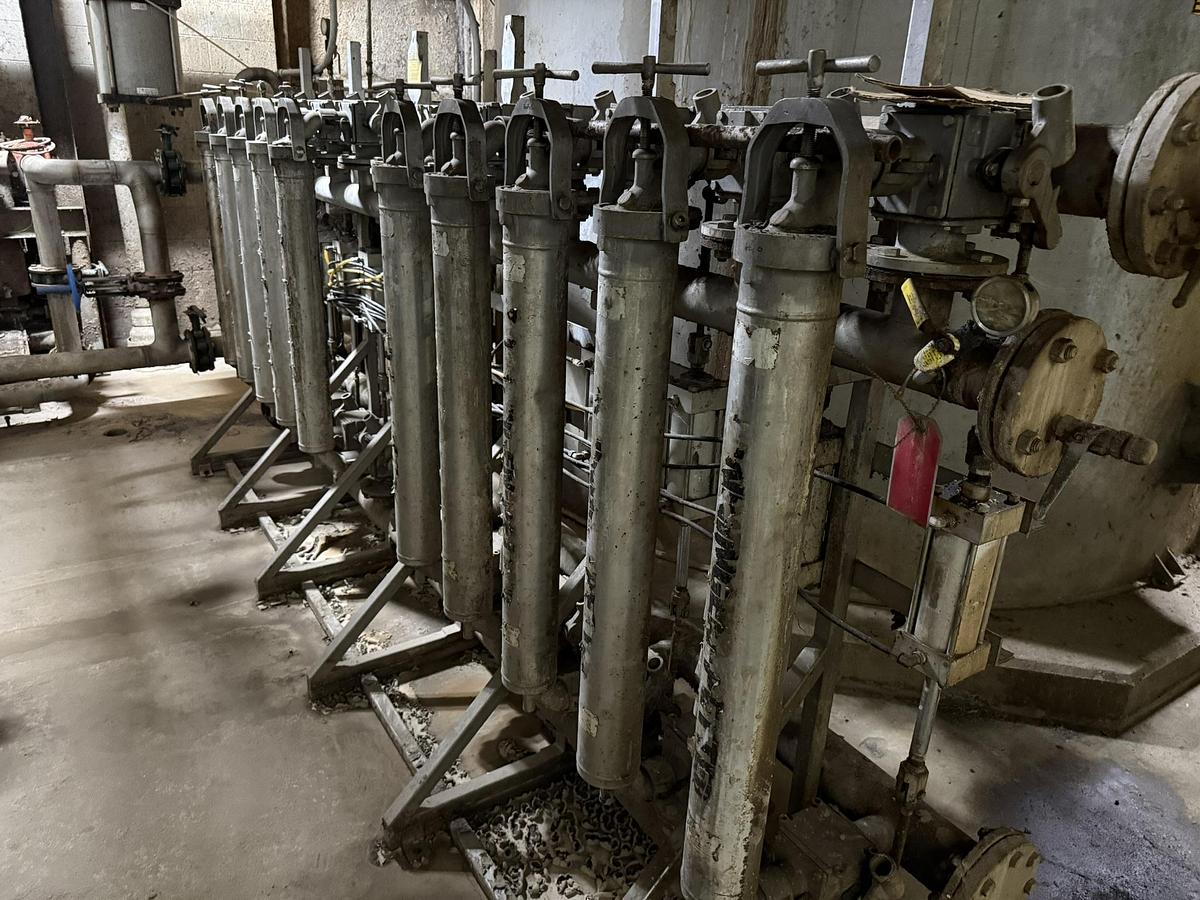

- Voith 08 screen
- (2) Voith Model 0403 screens

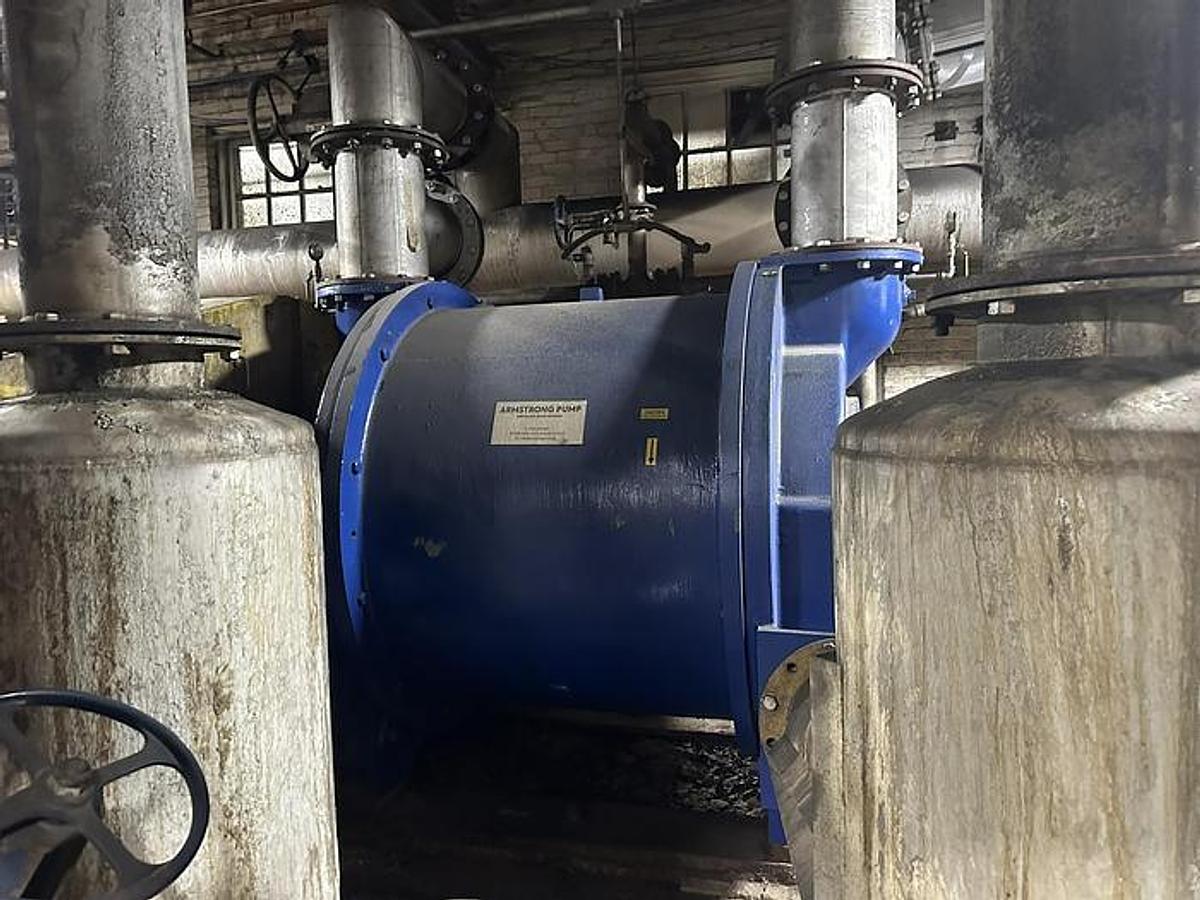

- Fan Pump: Sulzer SS ZPP 10

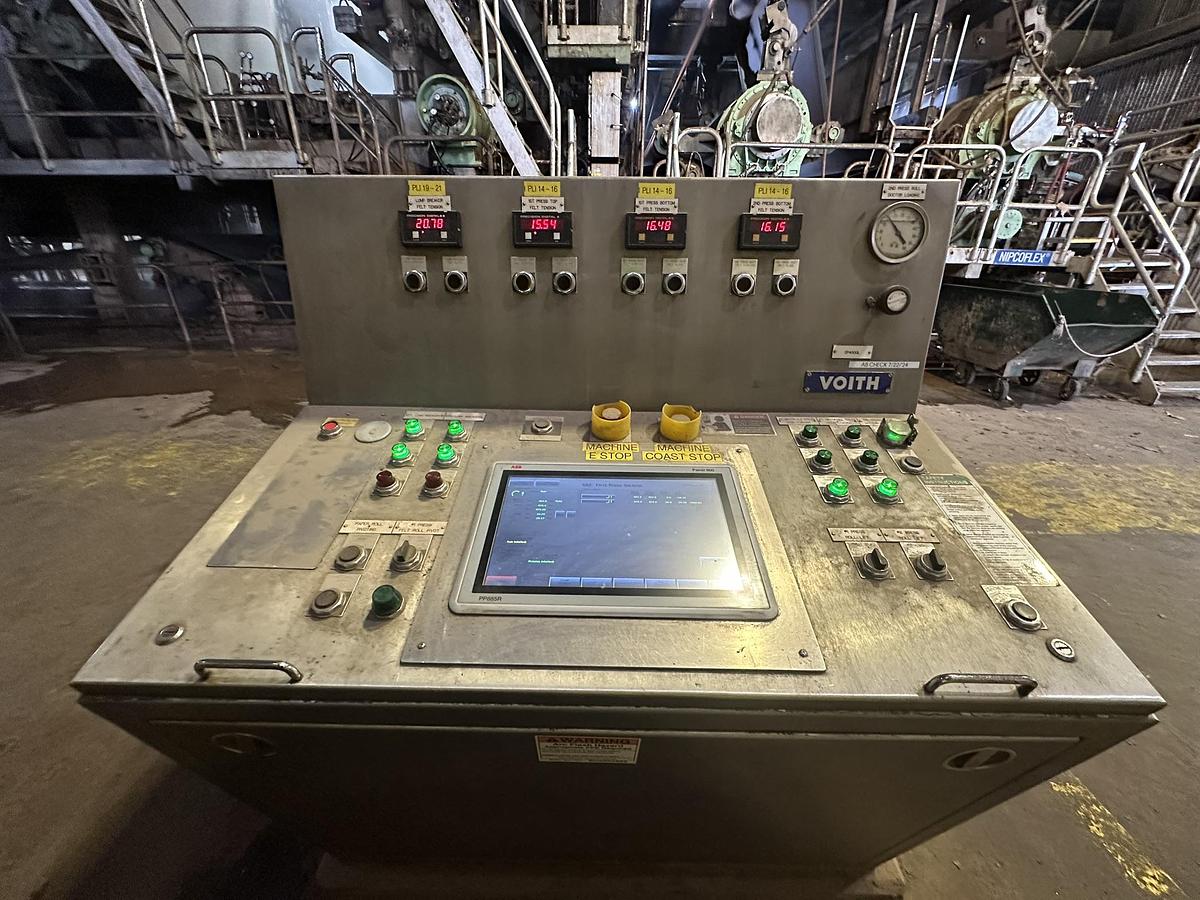

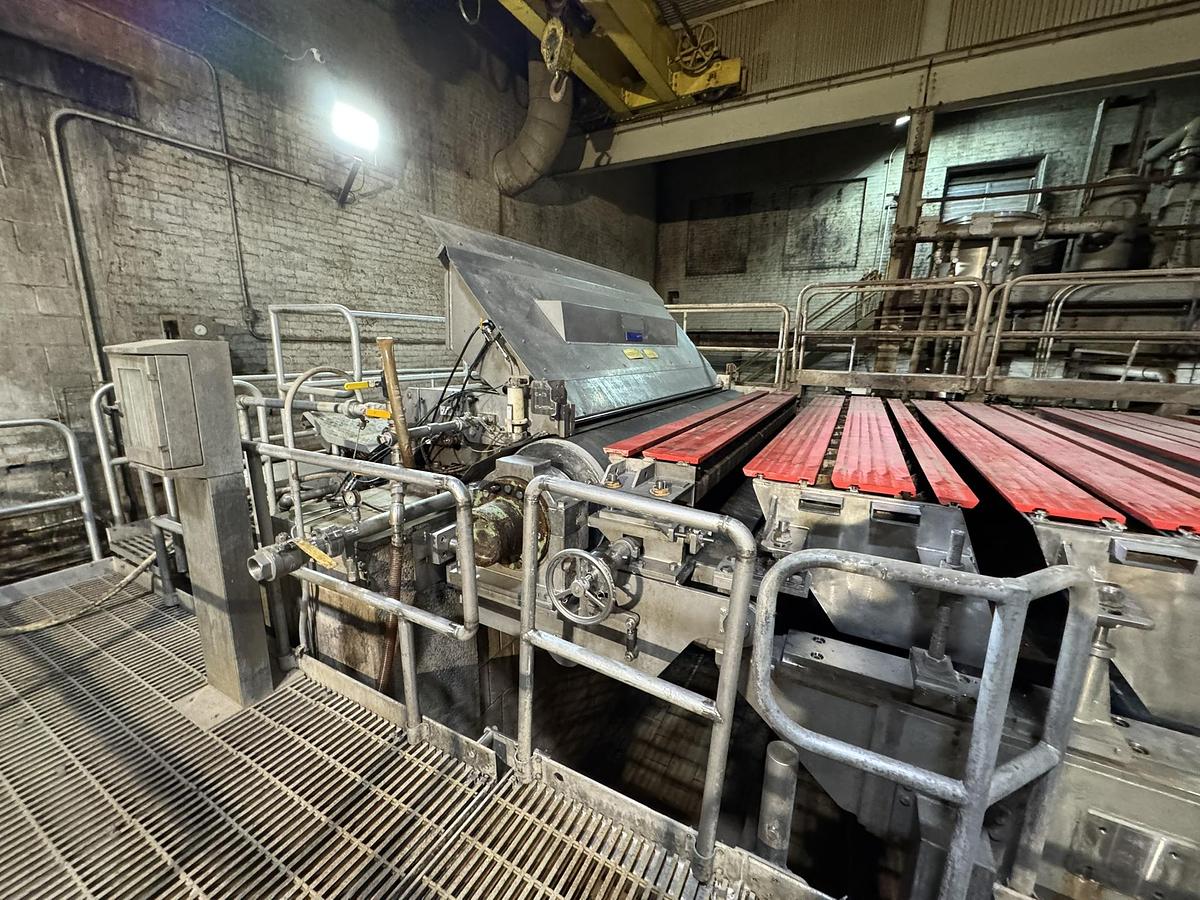

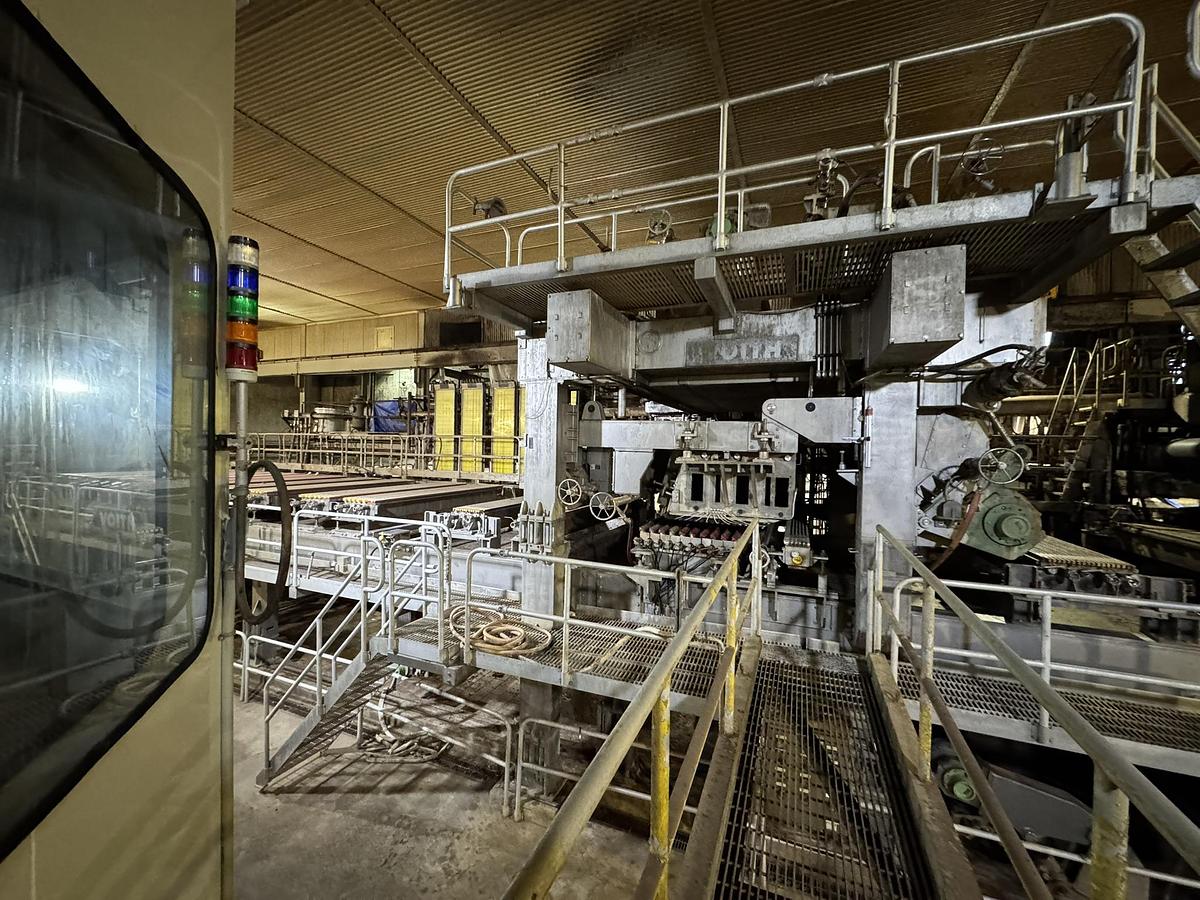

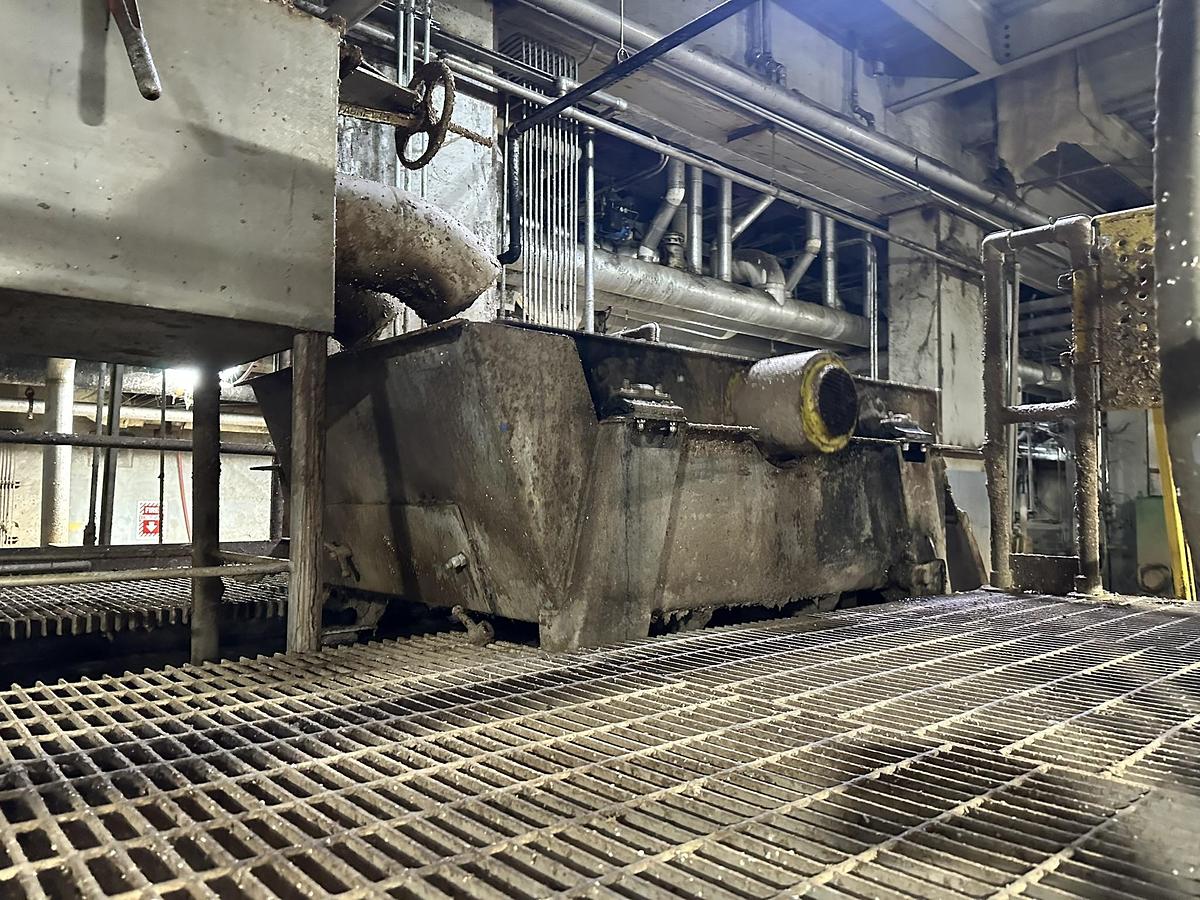

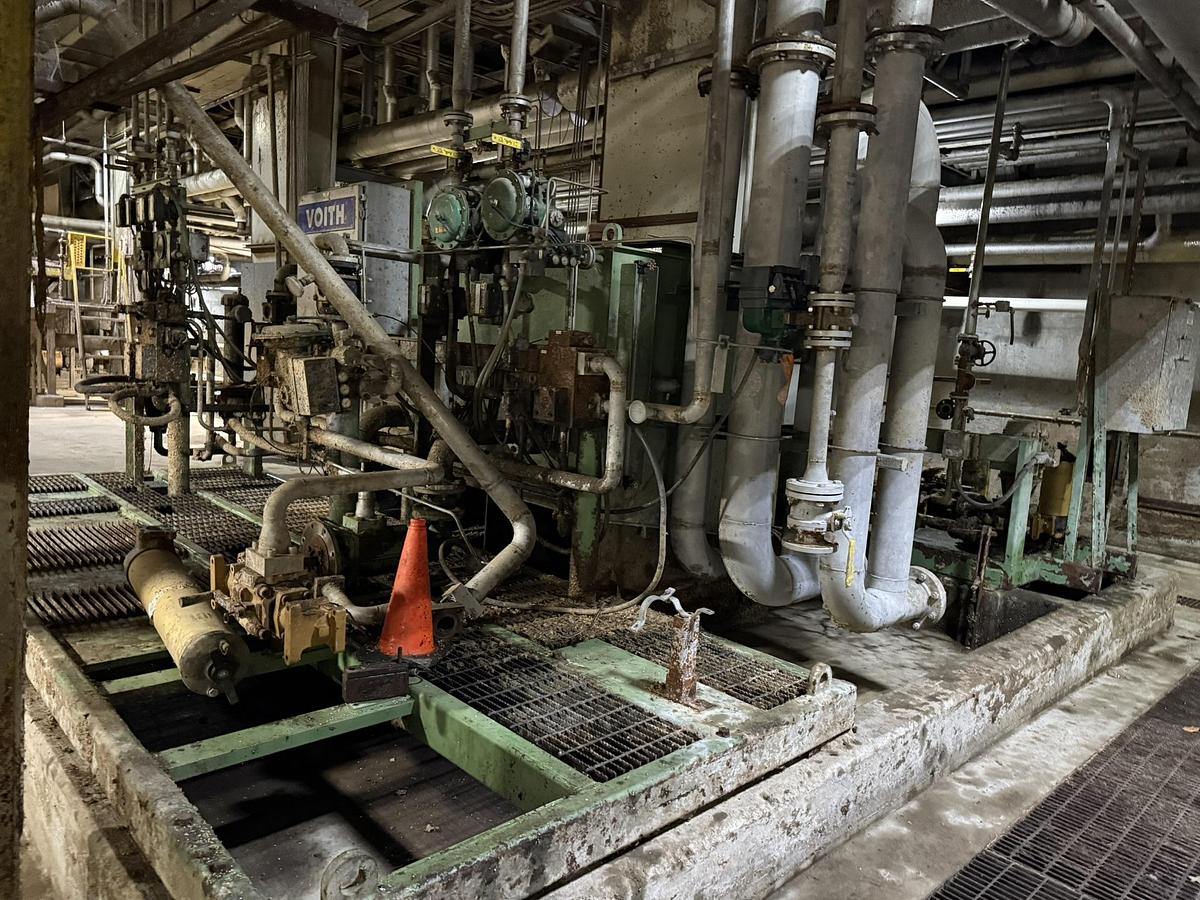

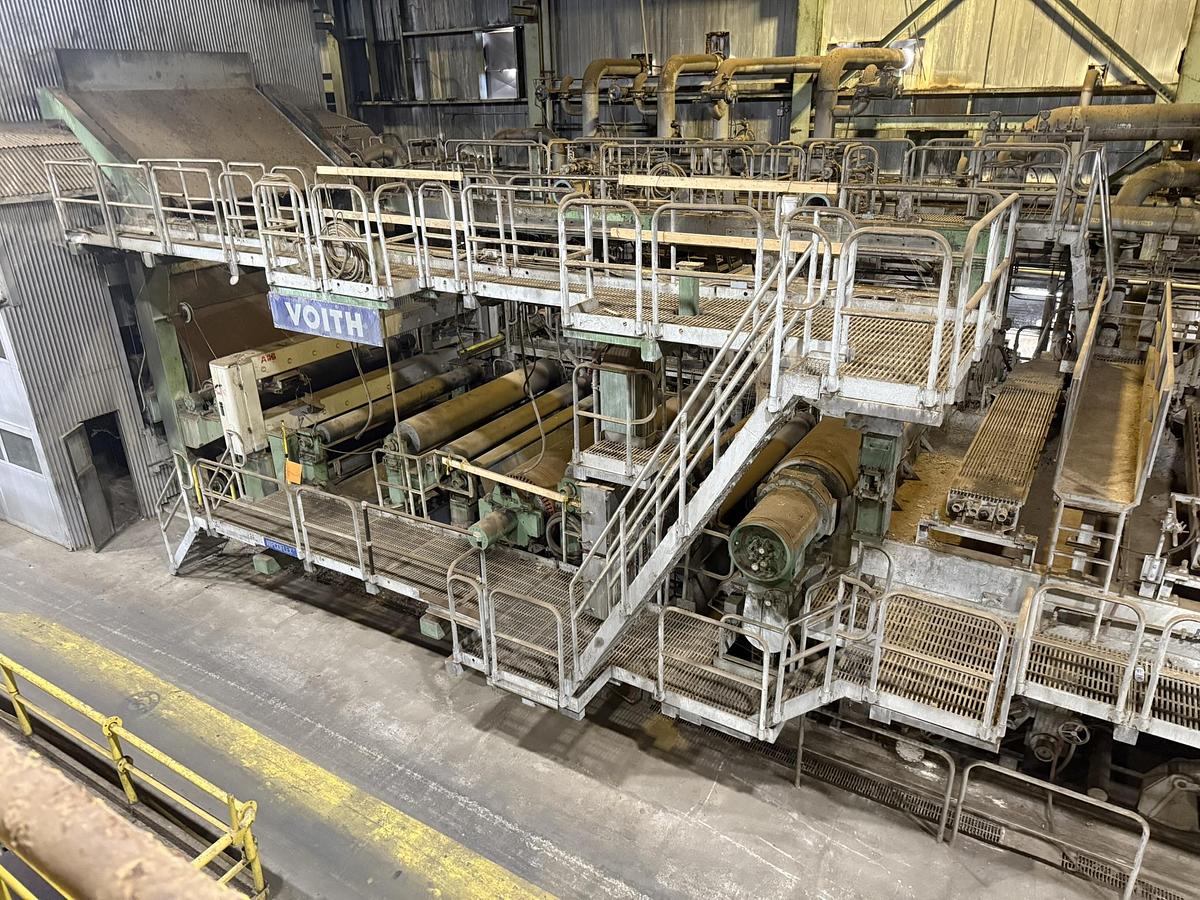

Wet End & Forming Section

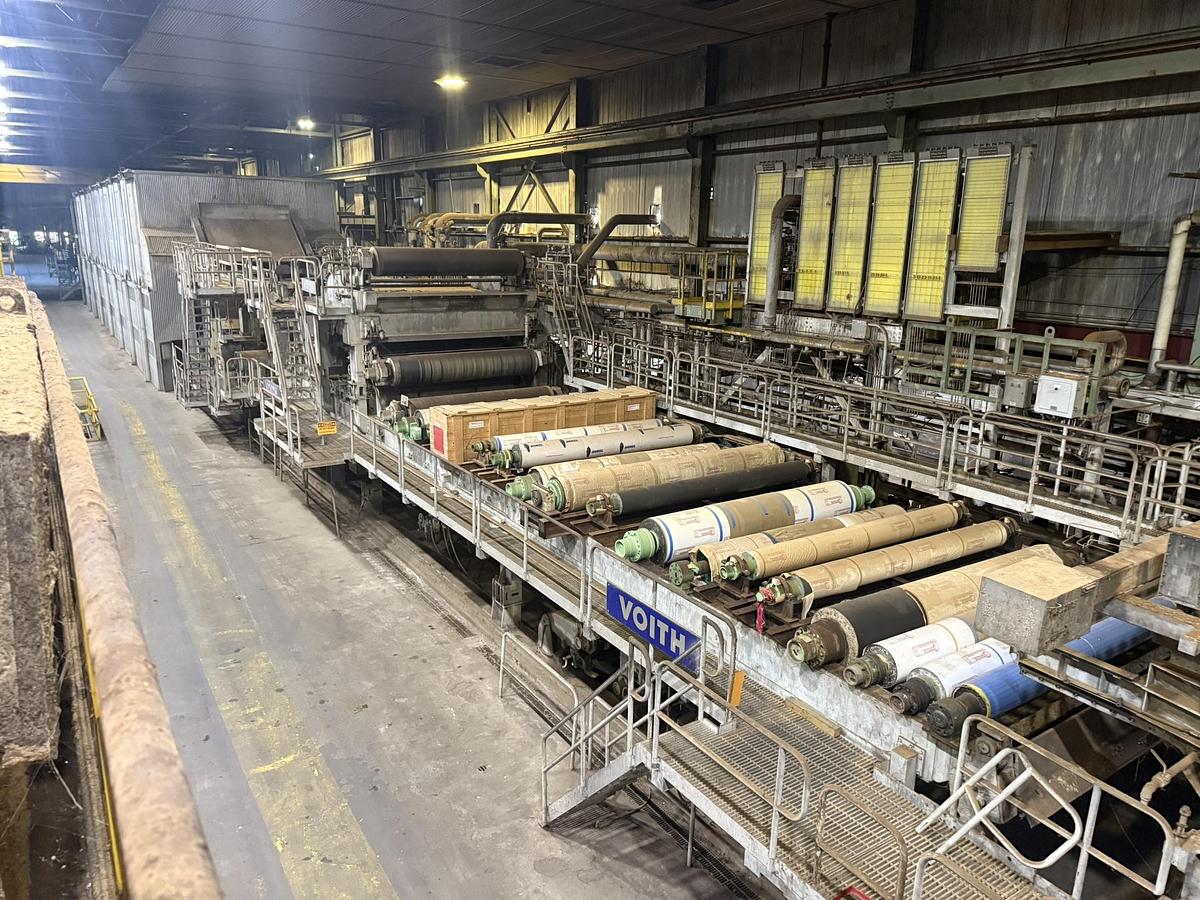

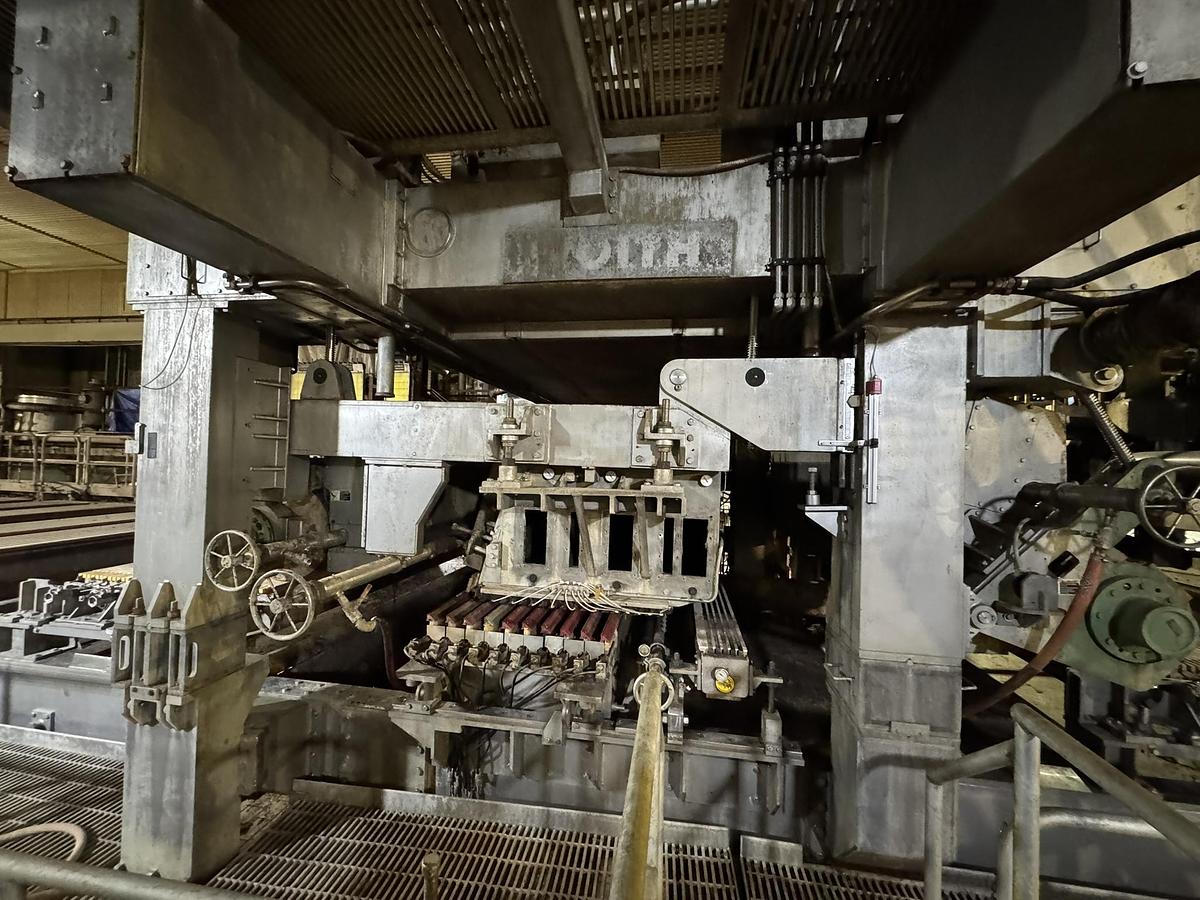

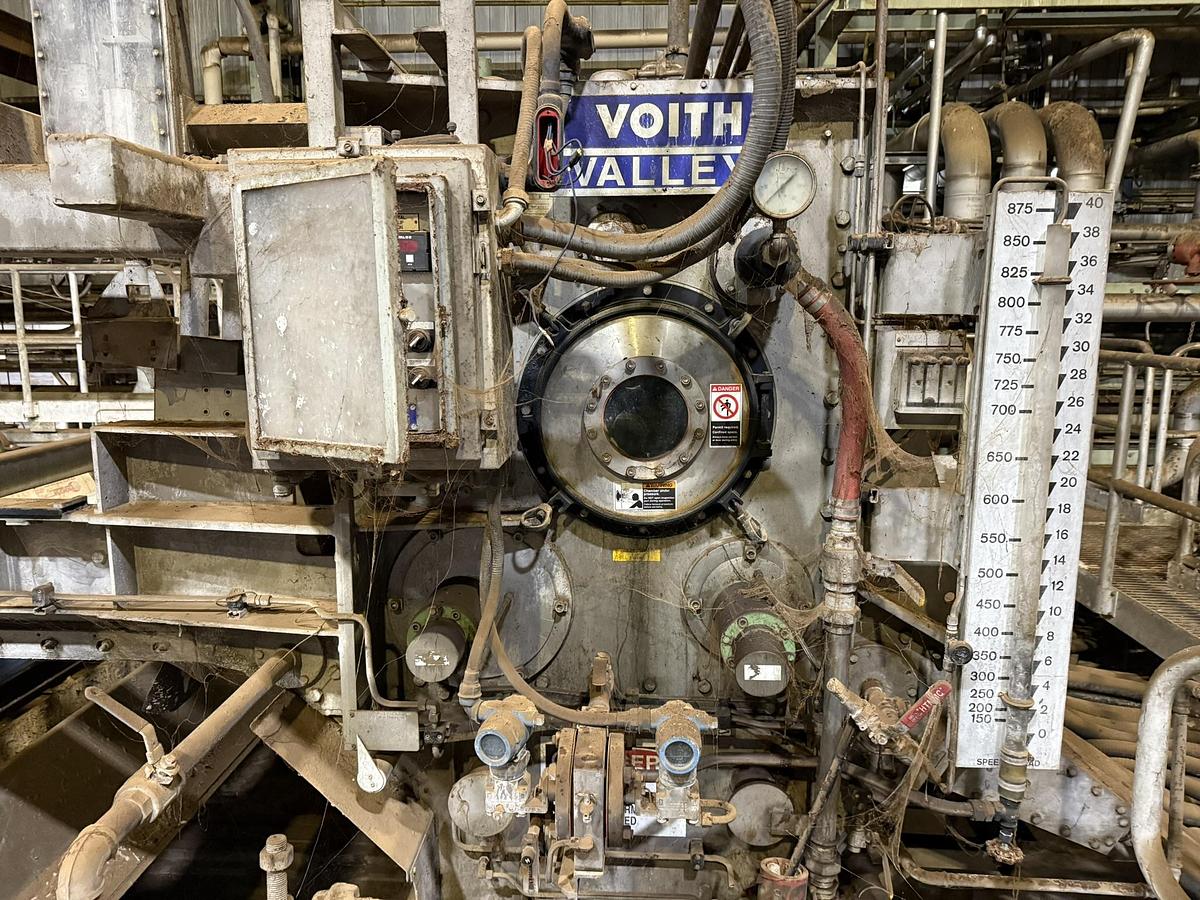

- Headbox: Voith MasterJet F / Hydraulic with DuoFormer D top dewatering unit

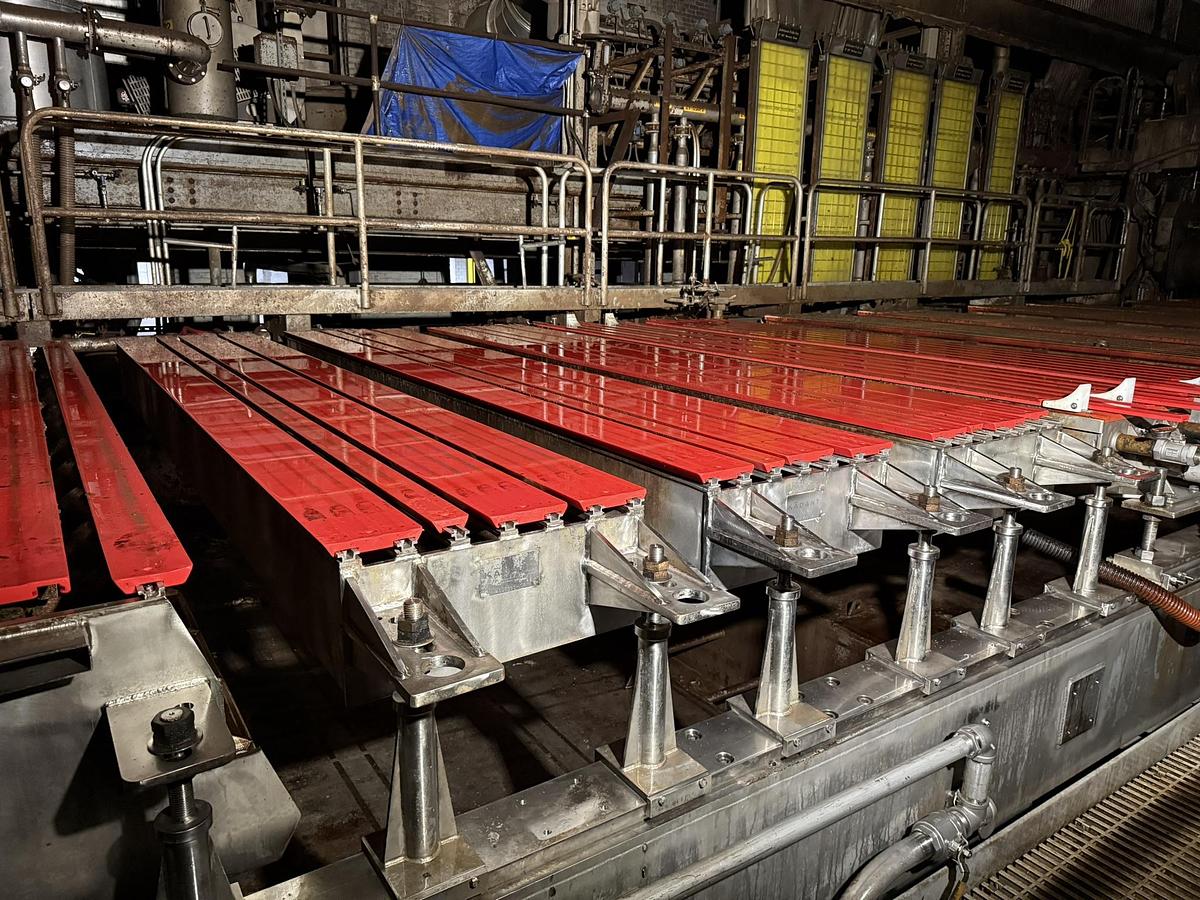

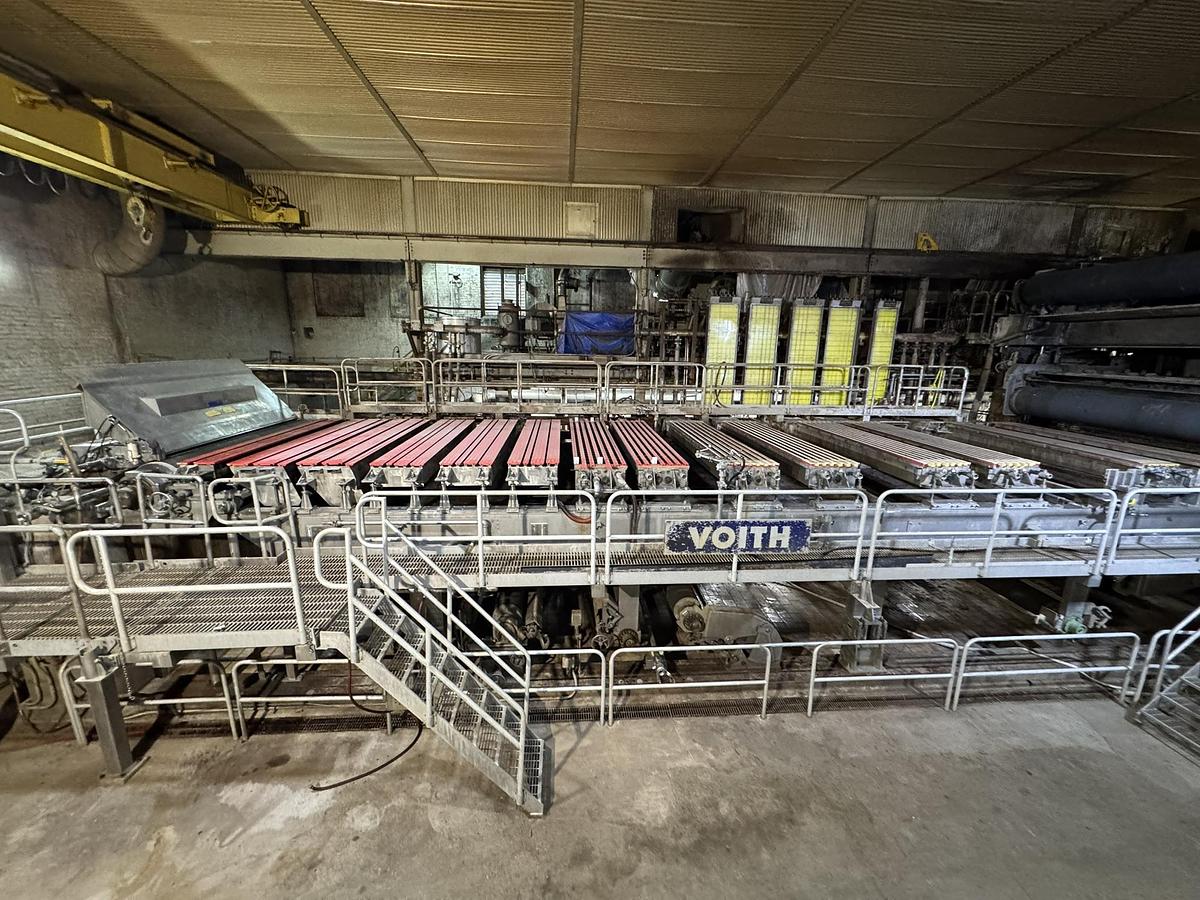

- Fourdrinier Table: Voith 960" from breast roll centerline to couch roll
- Voith table has been rebuilt to Vacuum boxes

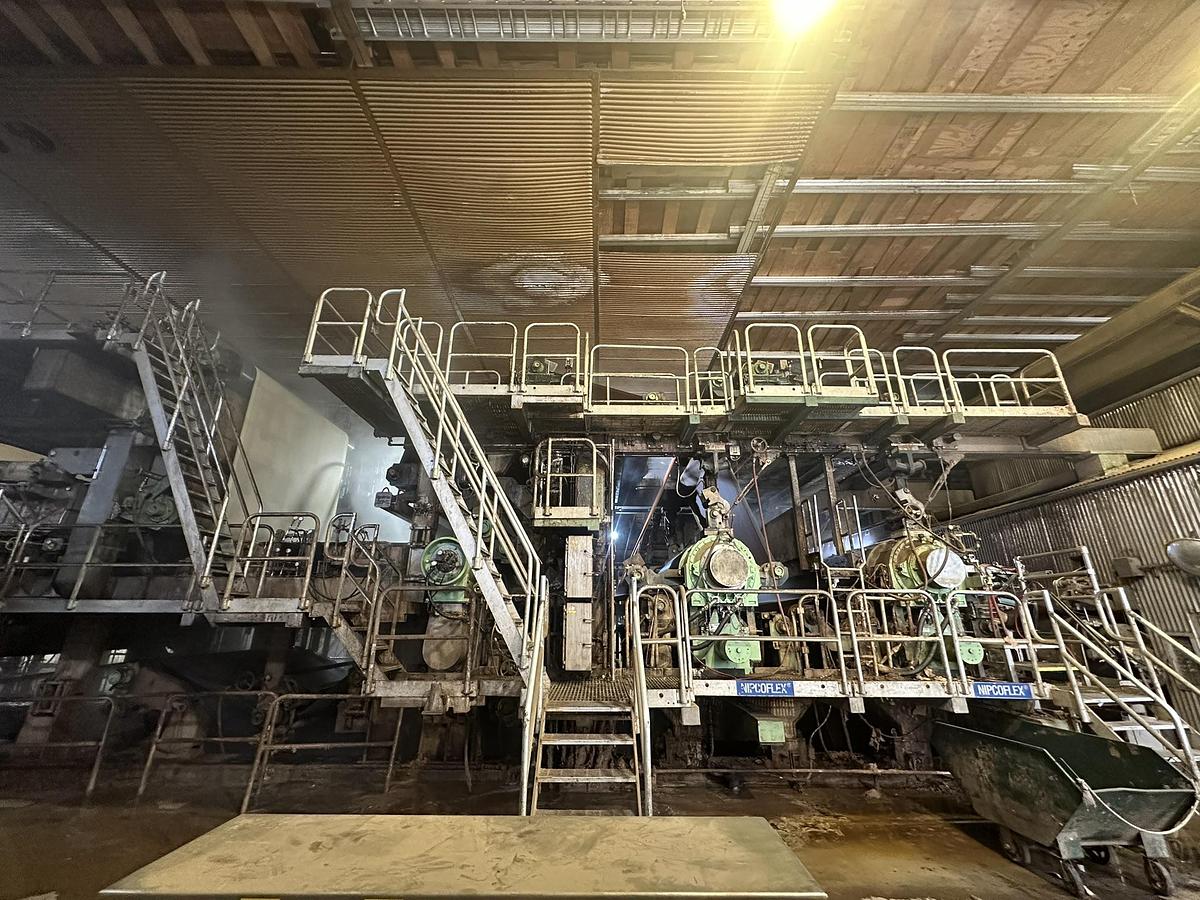

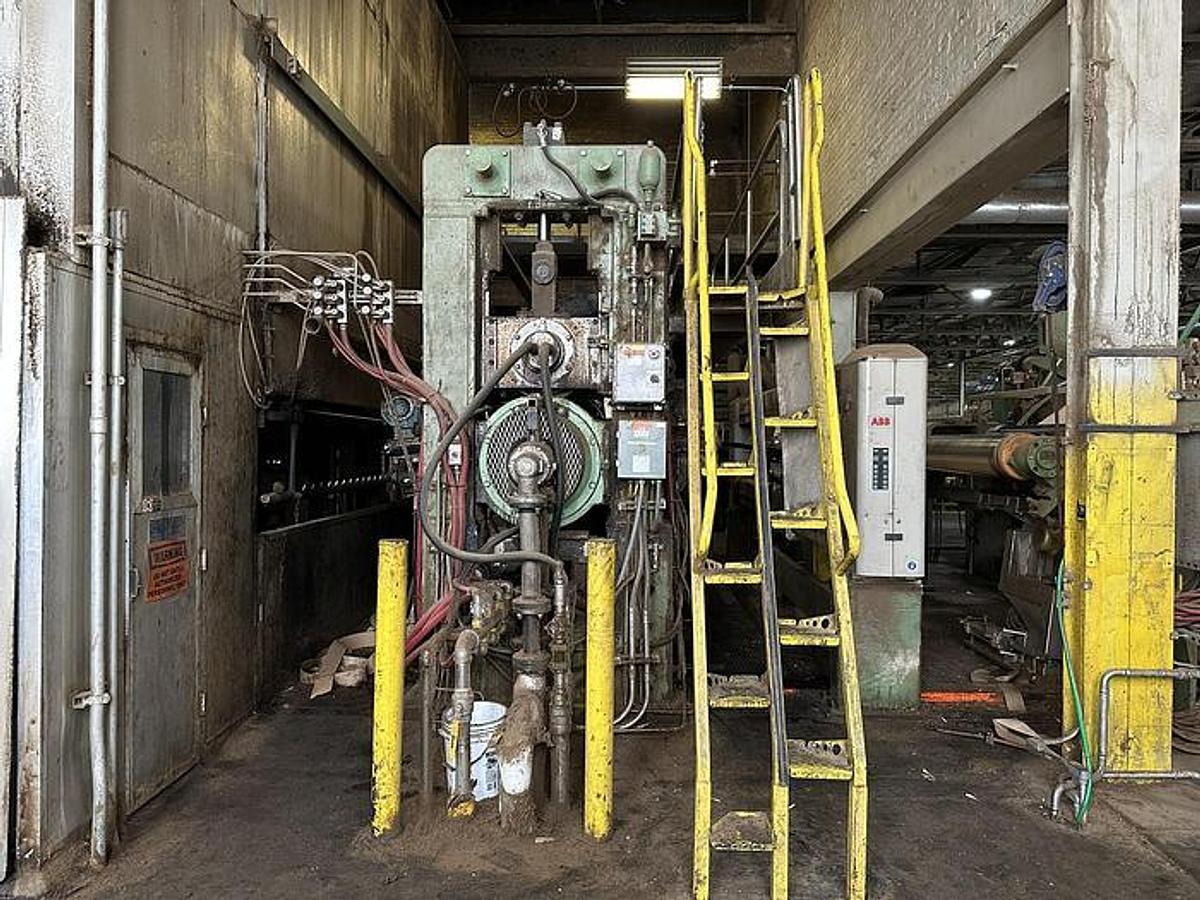

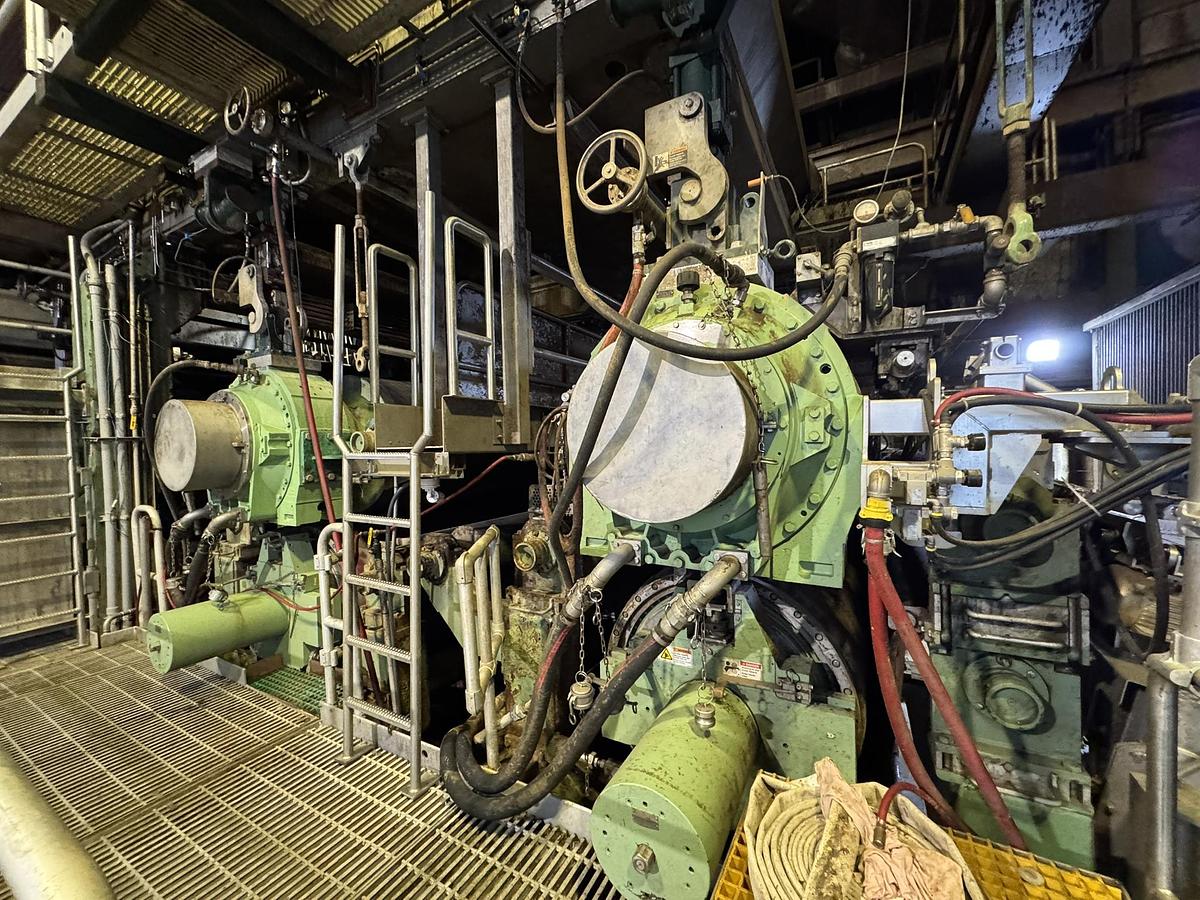

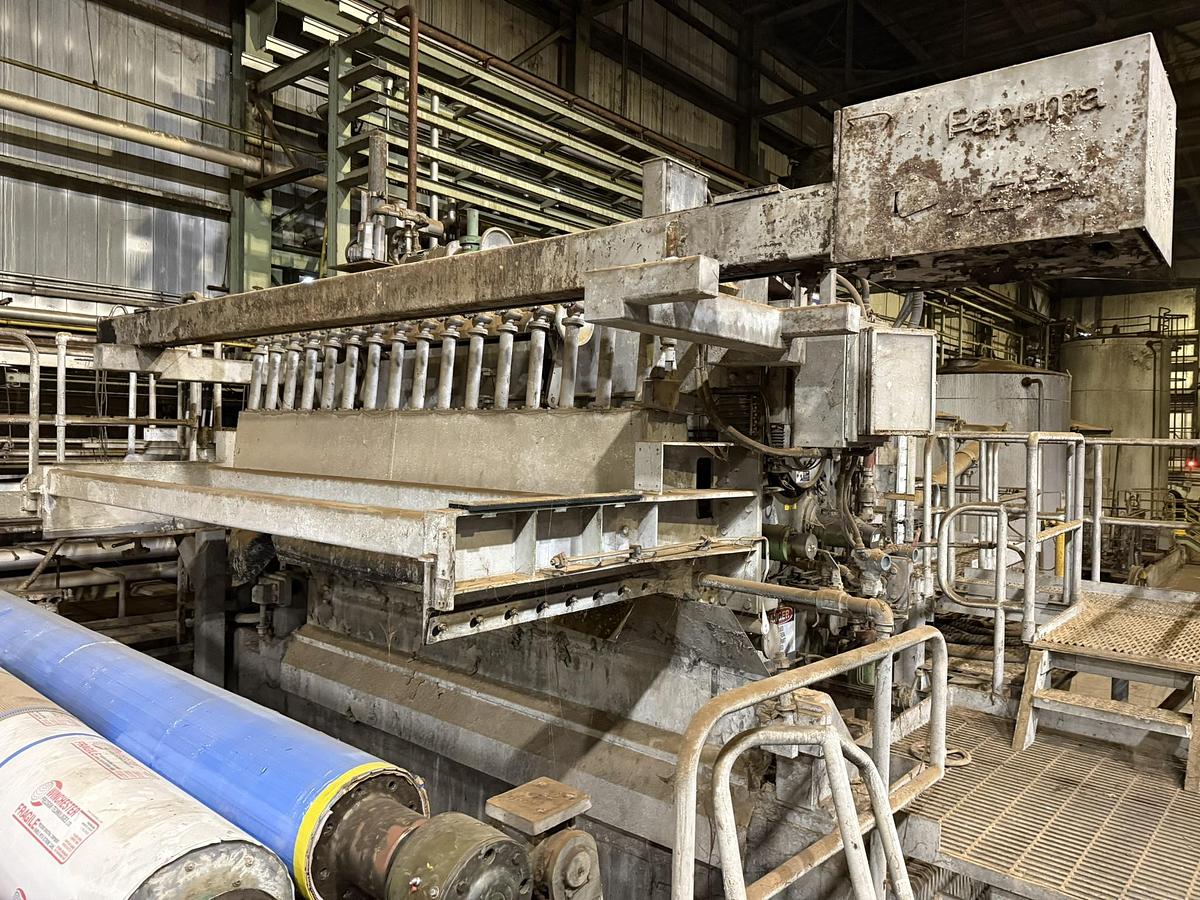

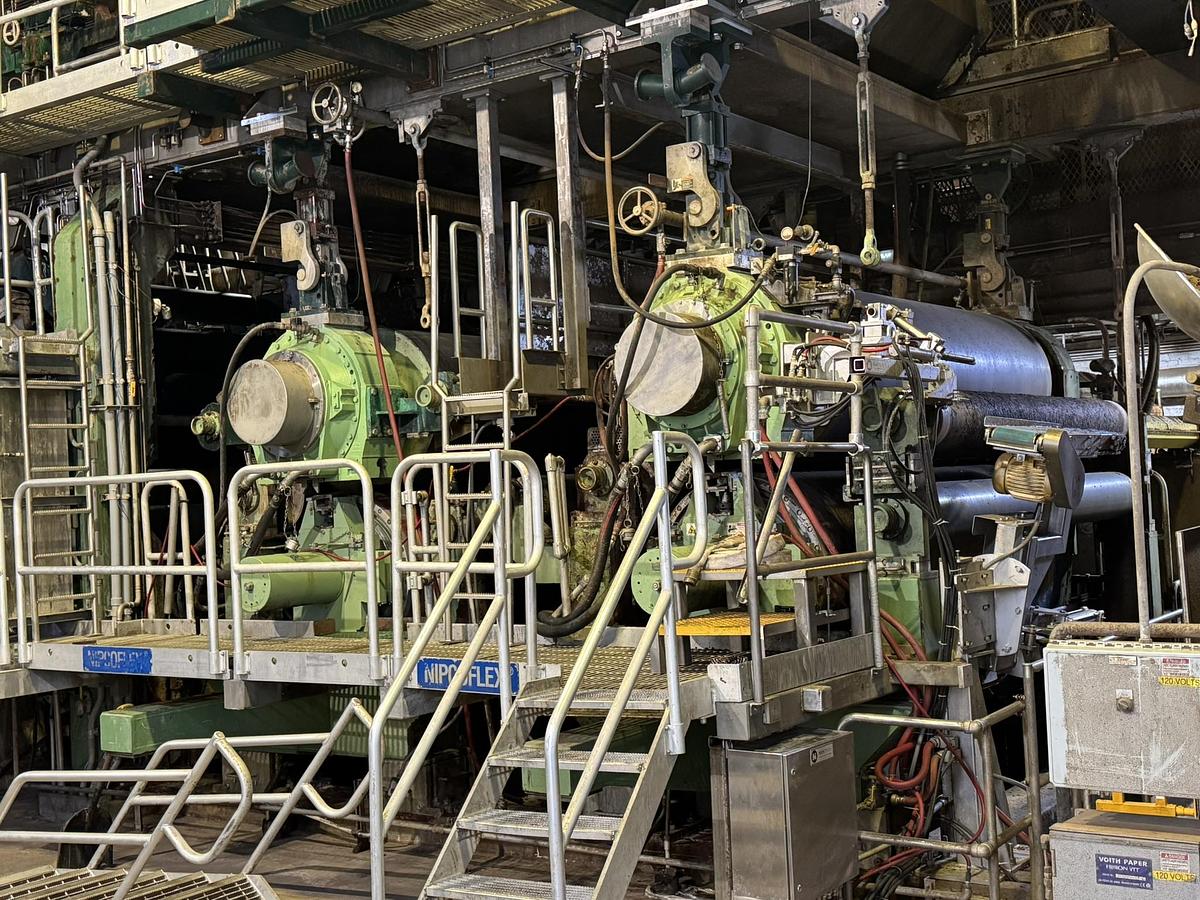

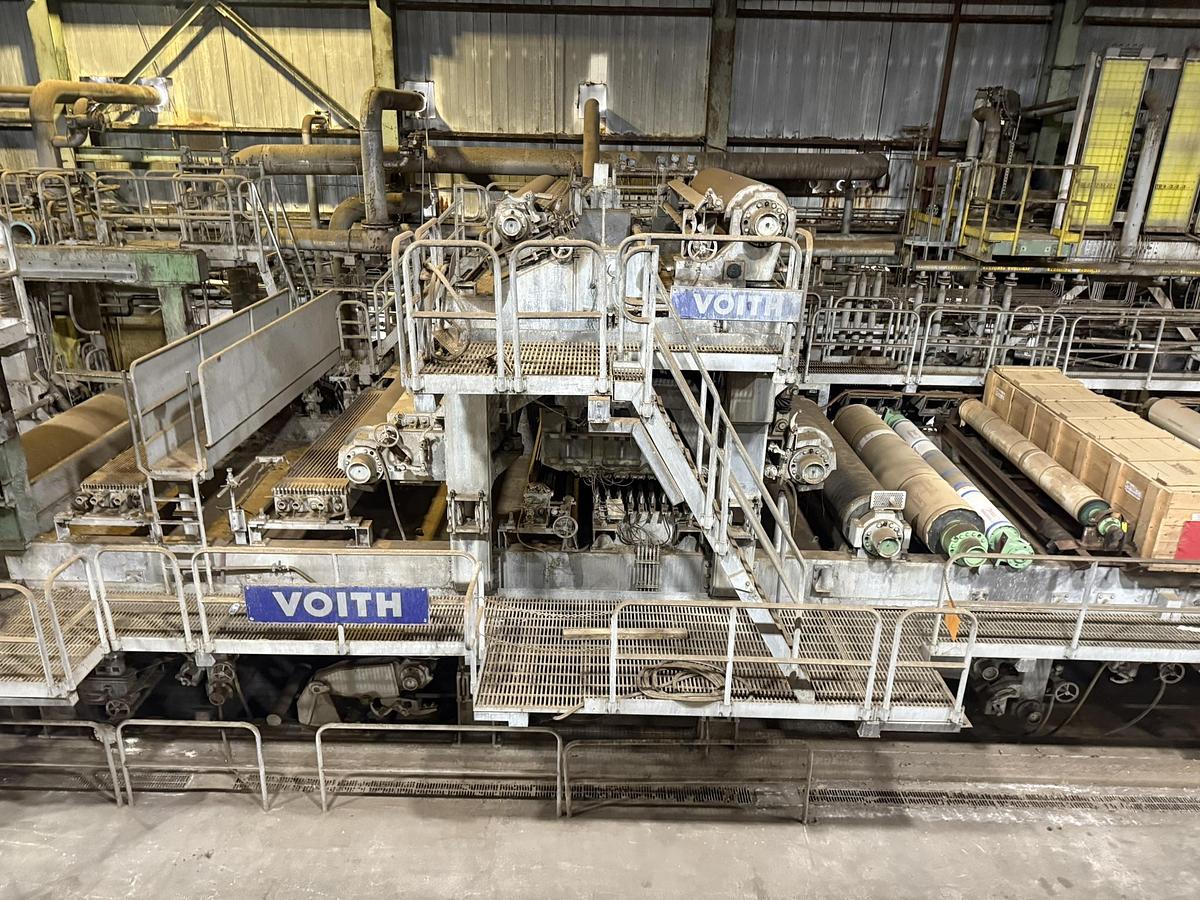

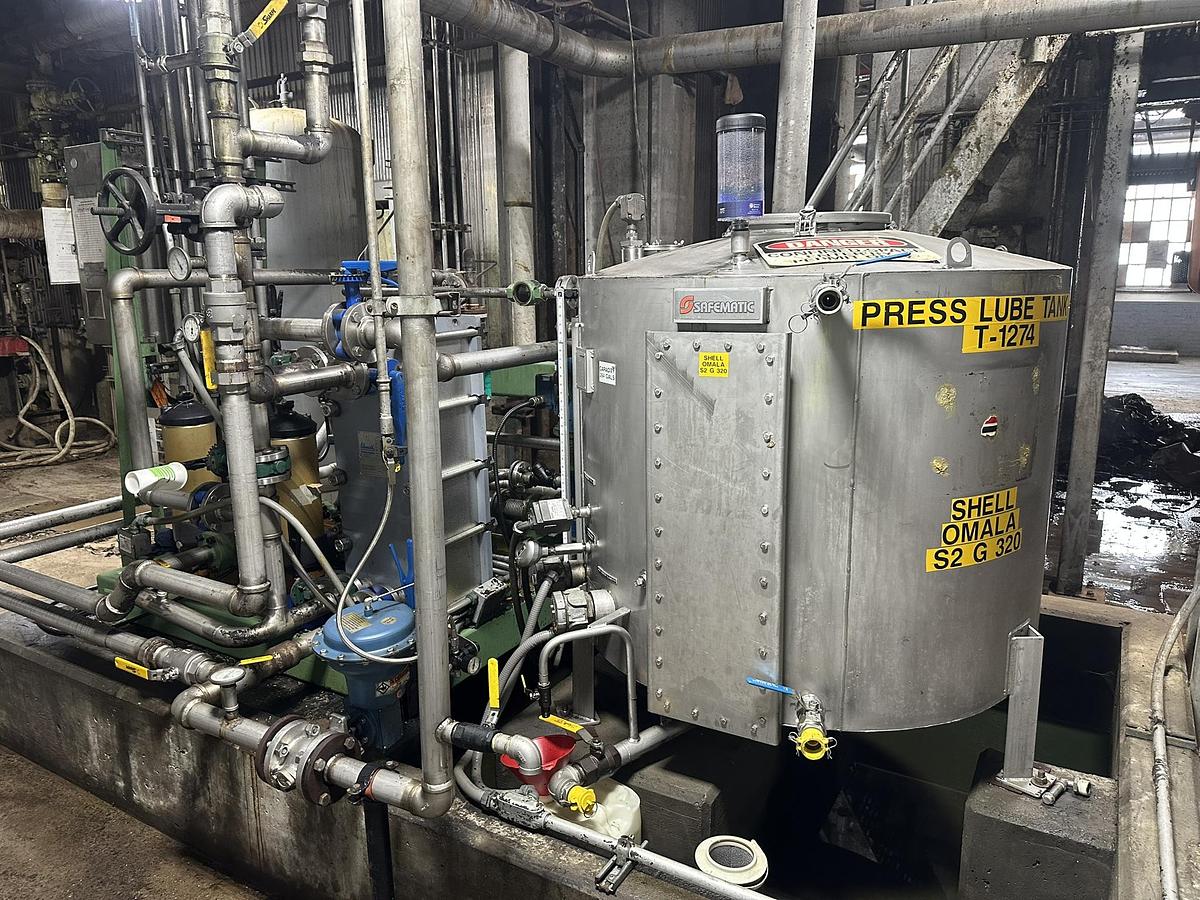

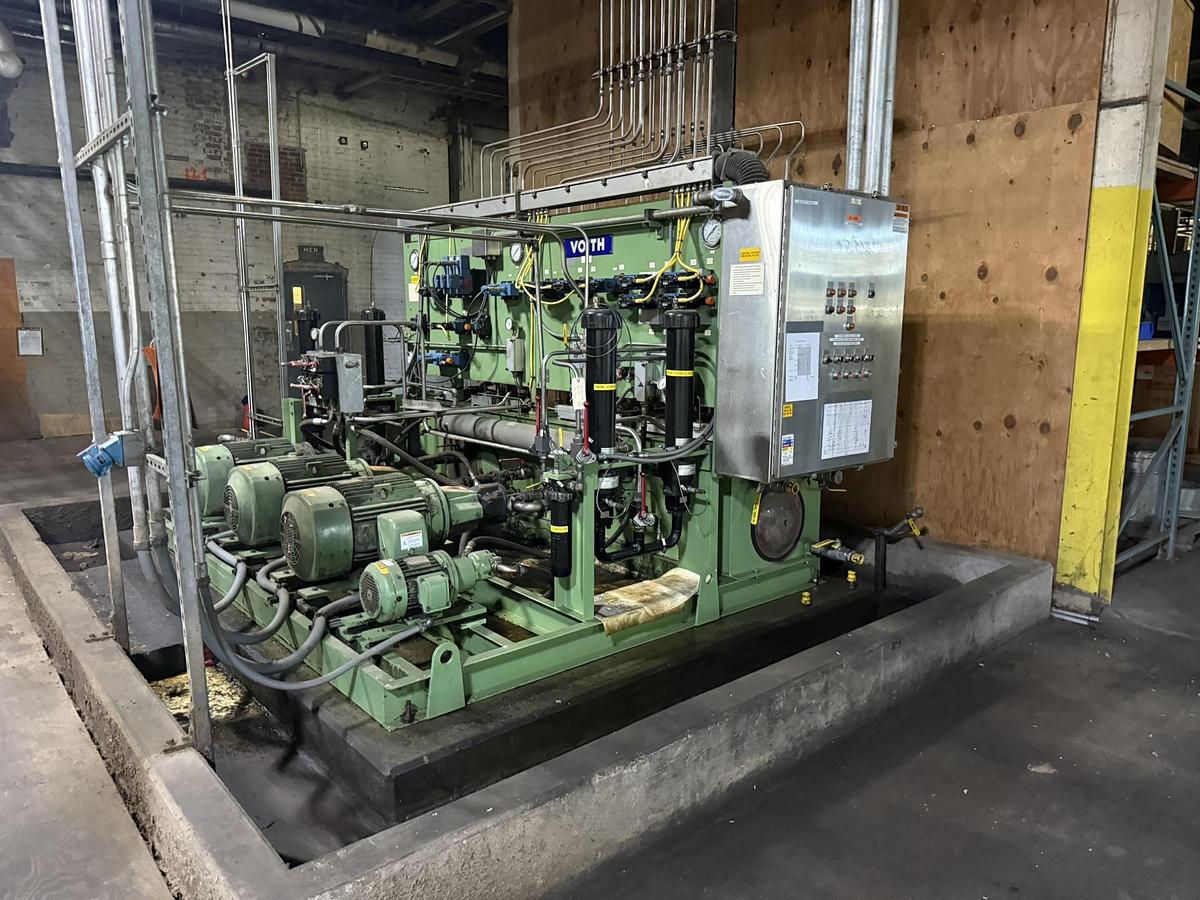

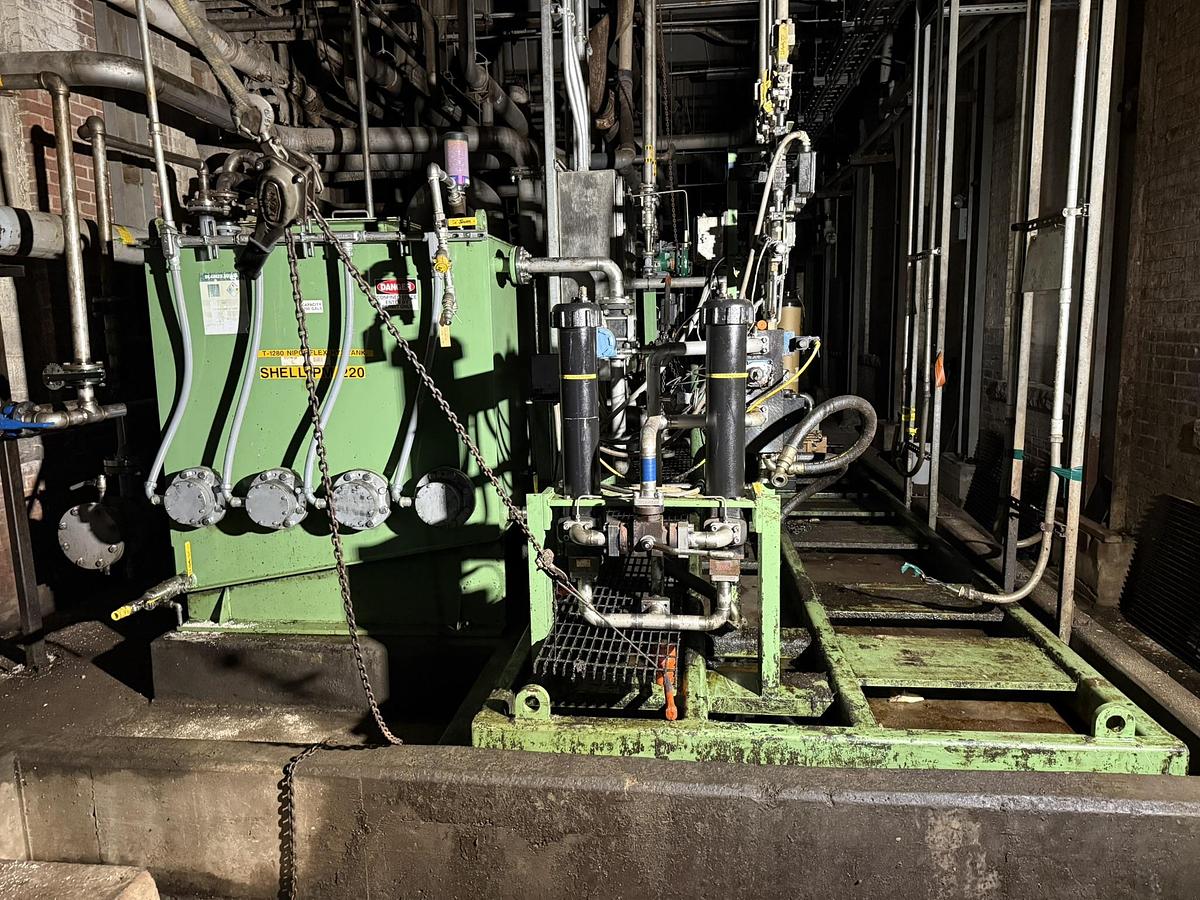

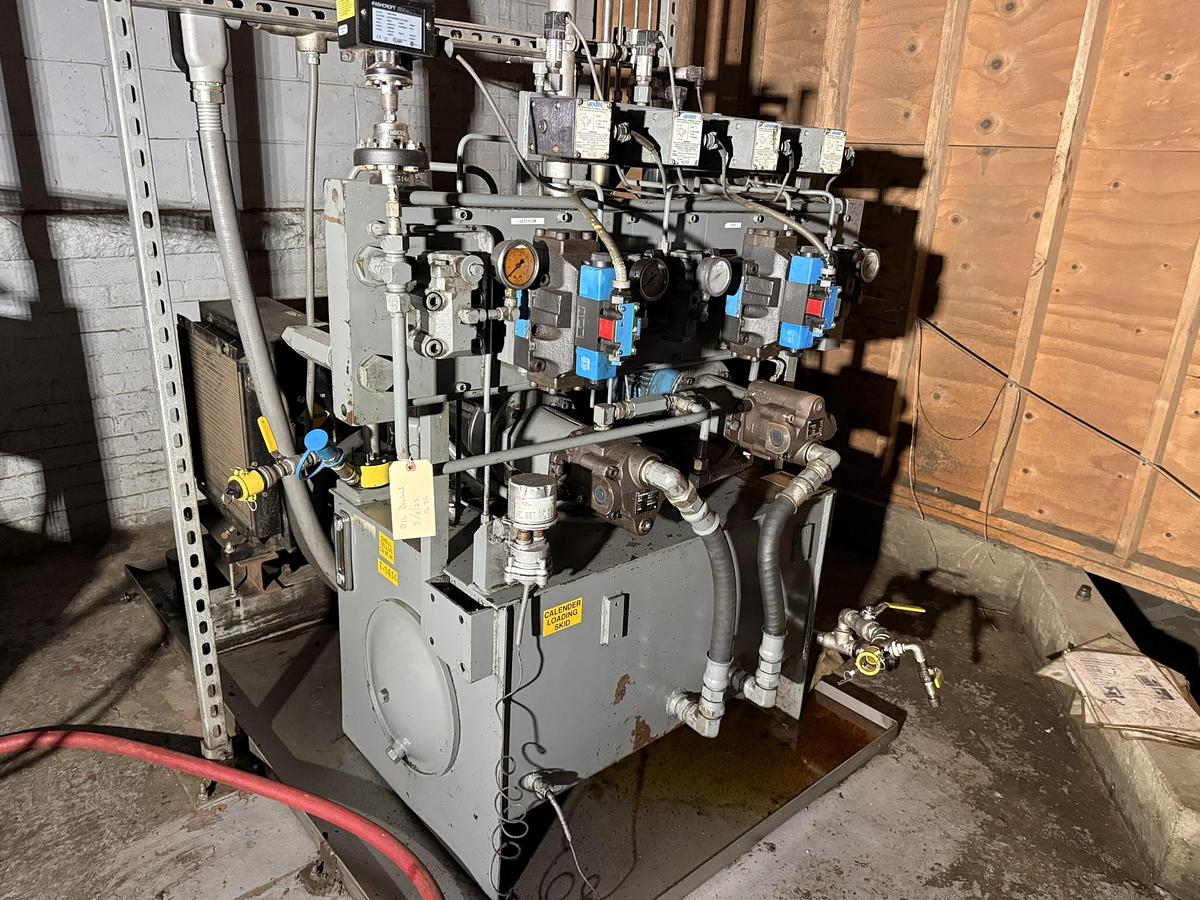

Voith Tandem NipcoFlex Shoe Press:
- 1st Press: Double felted
- 2nd Press: Single felted
Press Load: 5,200 PLI each
- Entire press frames replaced with stainless steel in 2022
- Spare smoothing roll and blind drilled roll

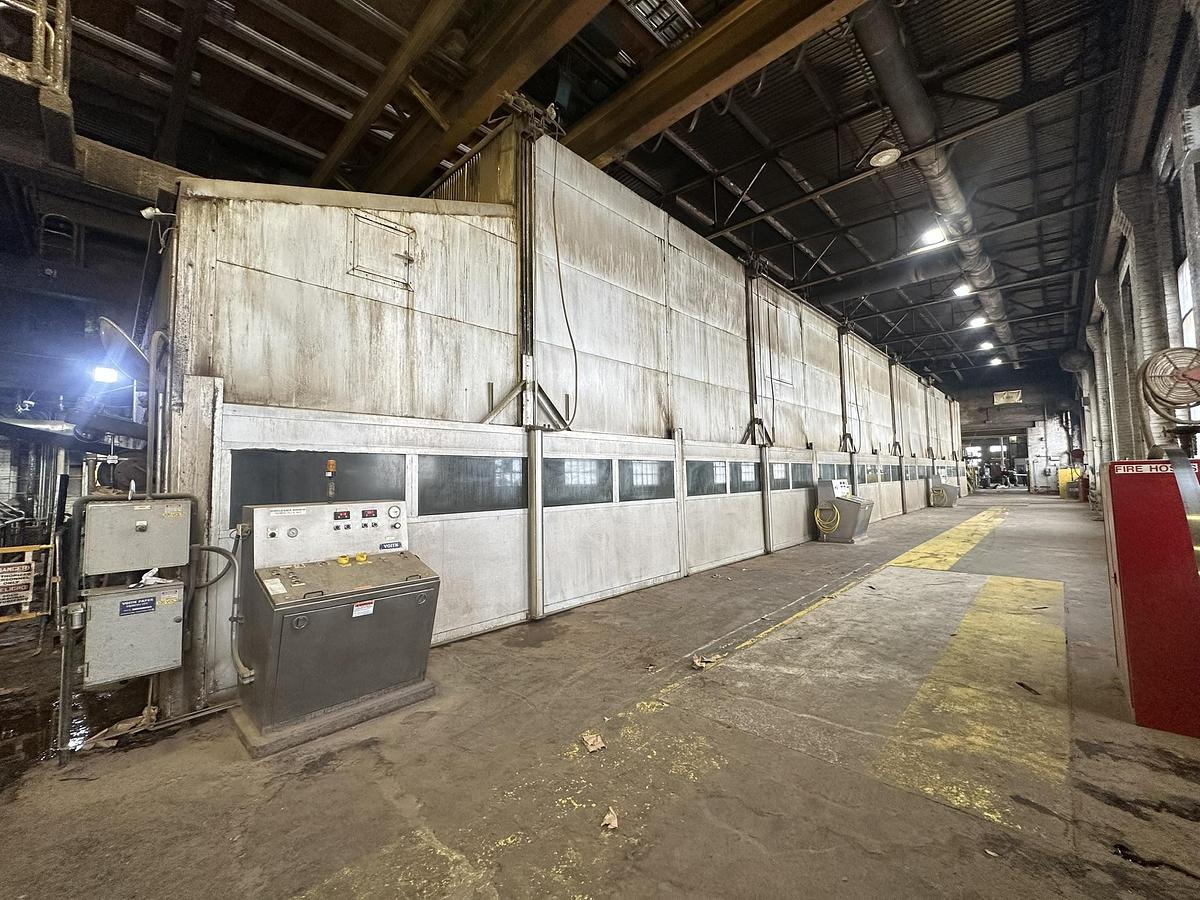

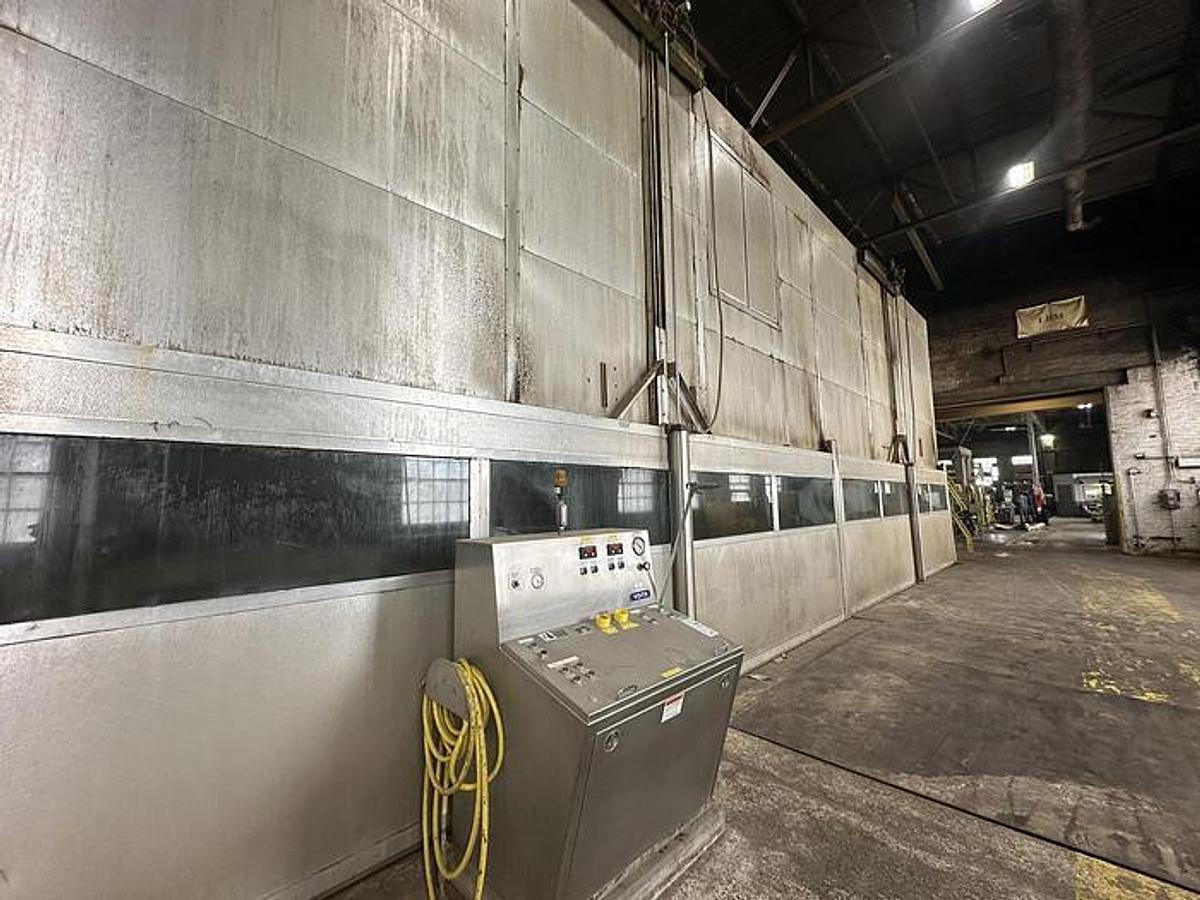

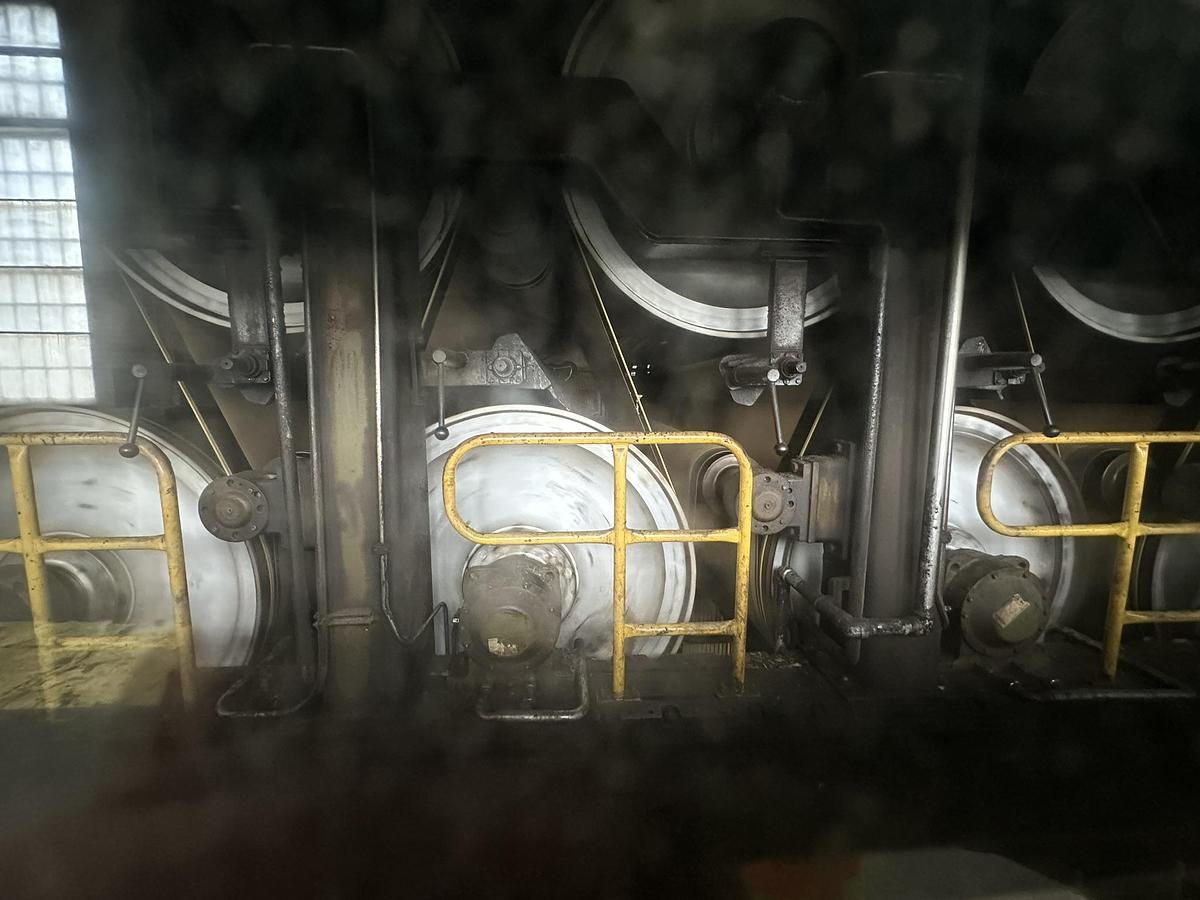

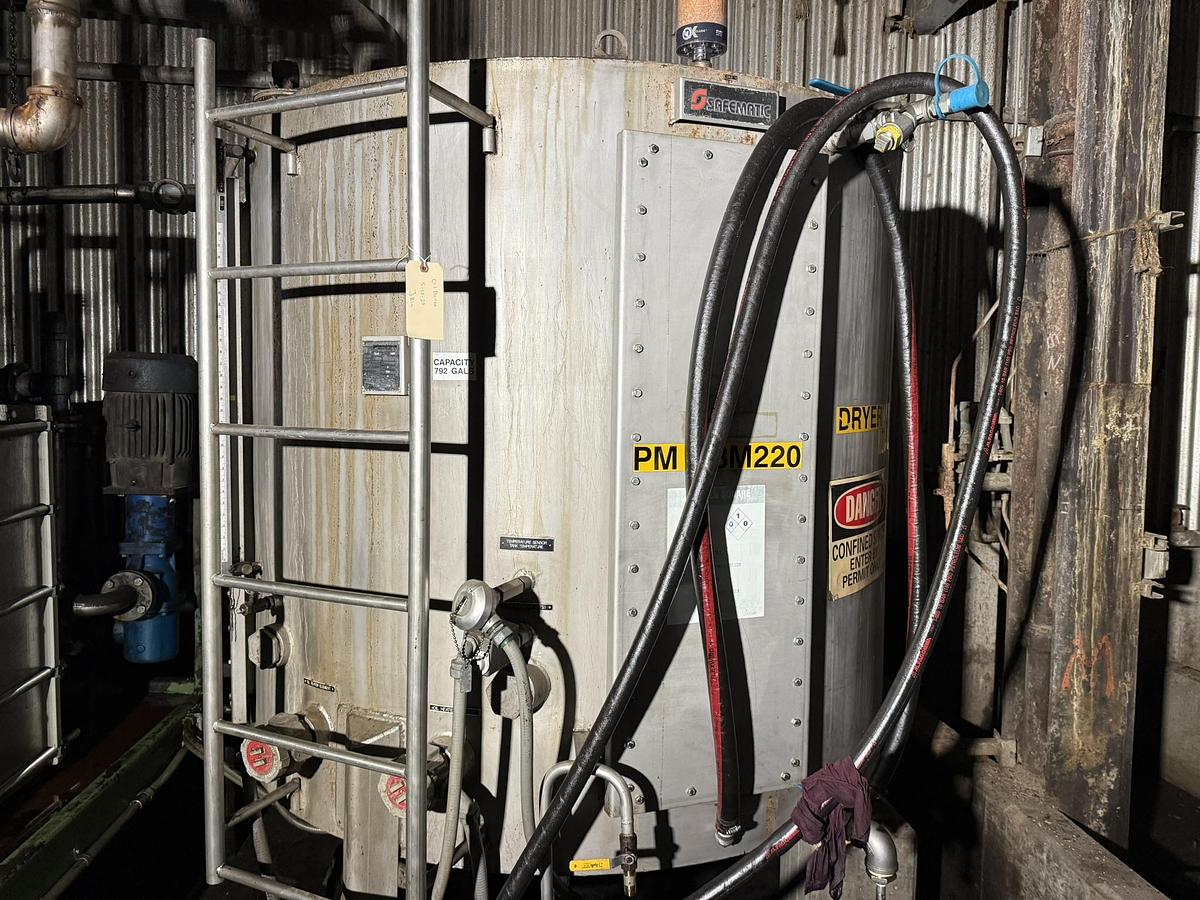

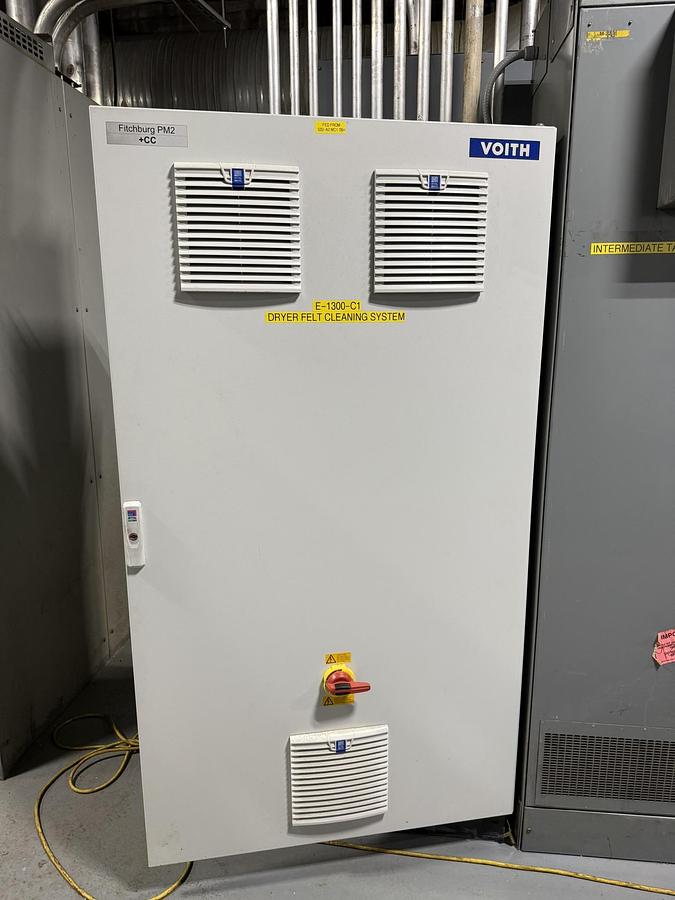

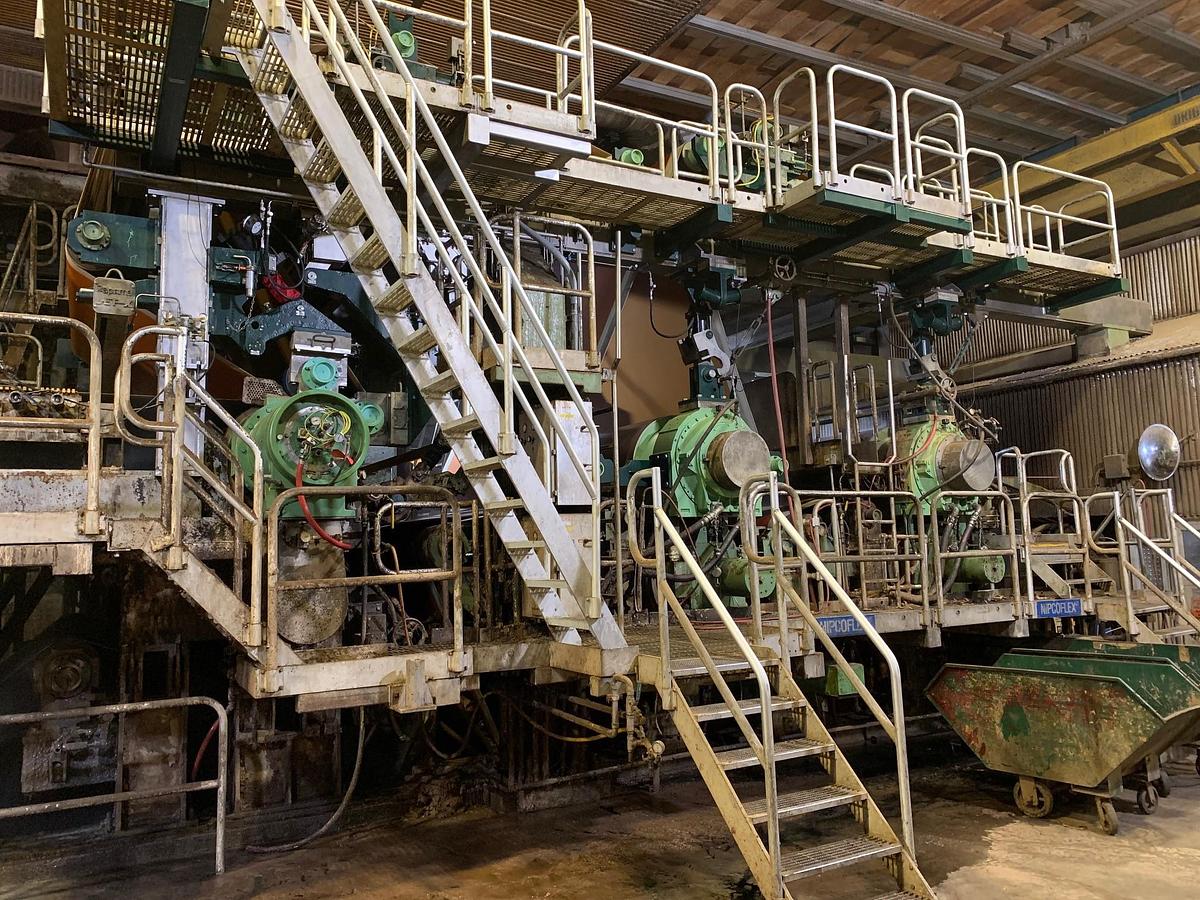

Dryer Section

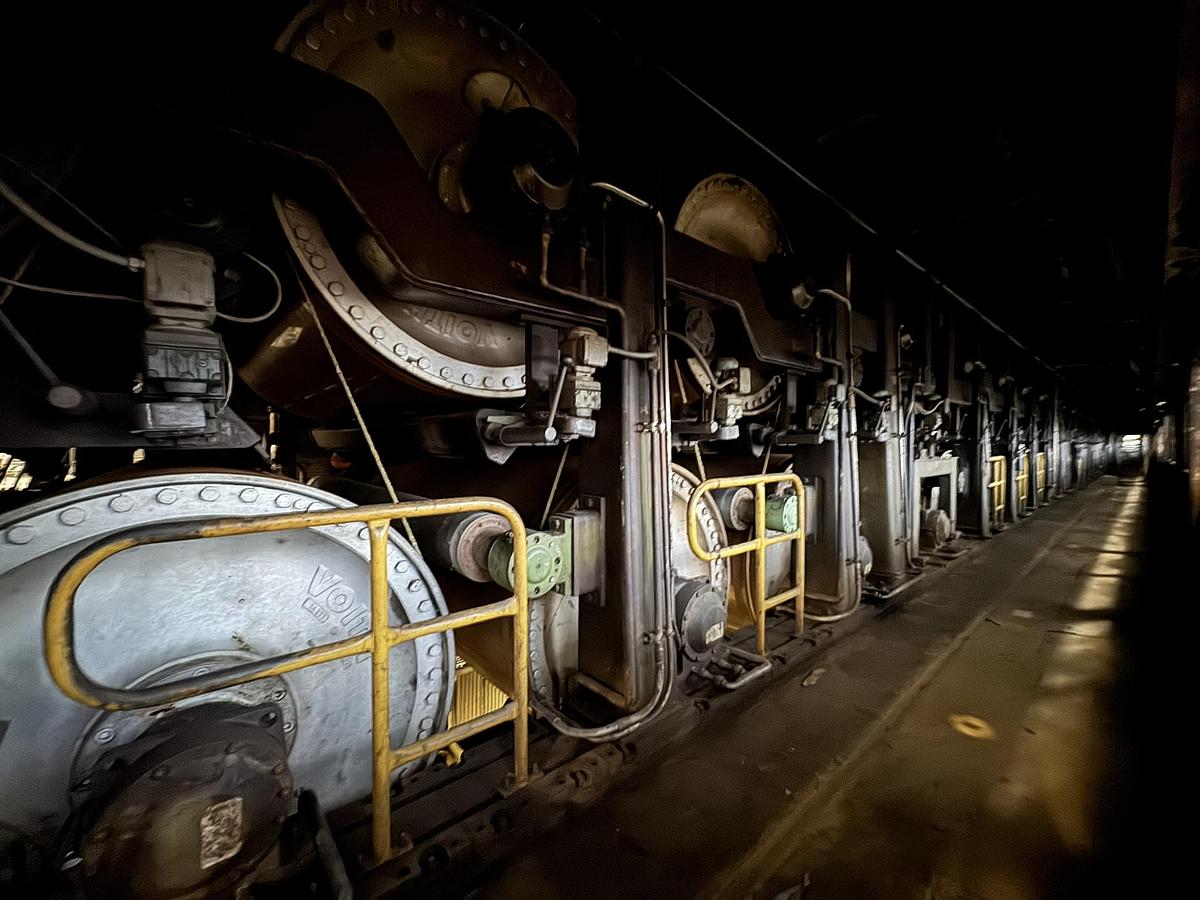

- Total Dryers: 34
- Dryer Size: 72" (1.8M) diameter, 150 PSI at 450°F
- Configuration: 3 sections
- Felts: Top and bottom
- All ropes on dryers
- Pocket ventilation on all dryers

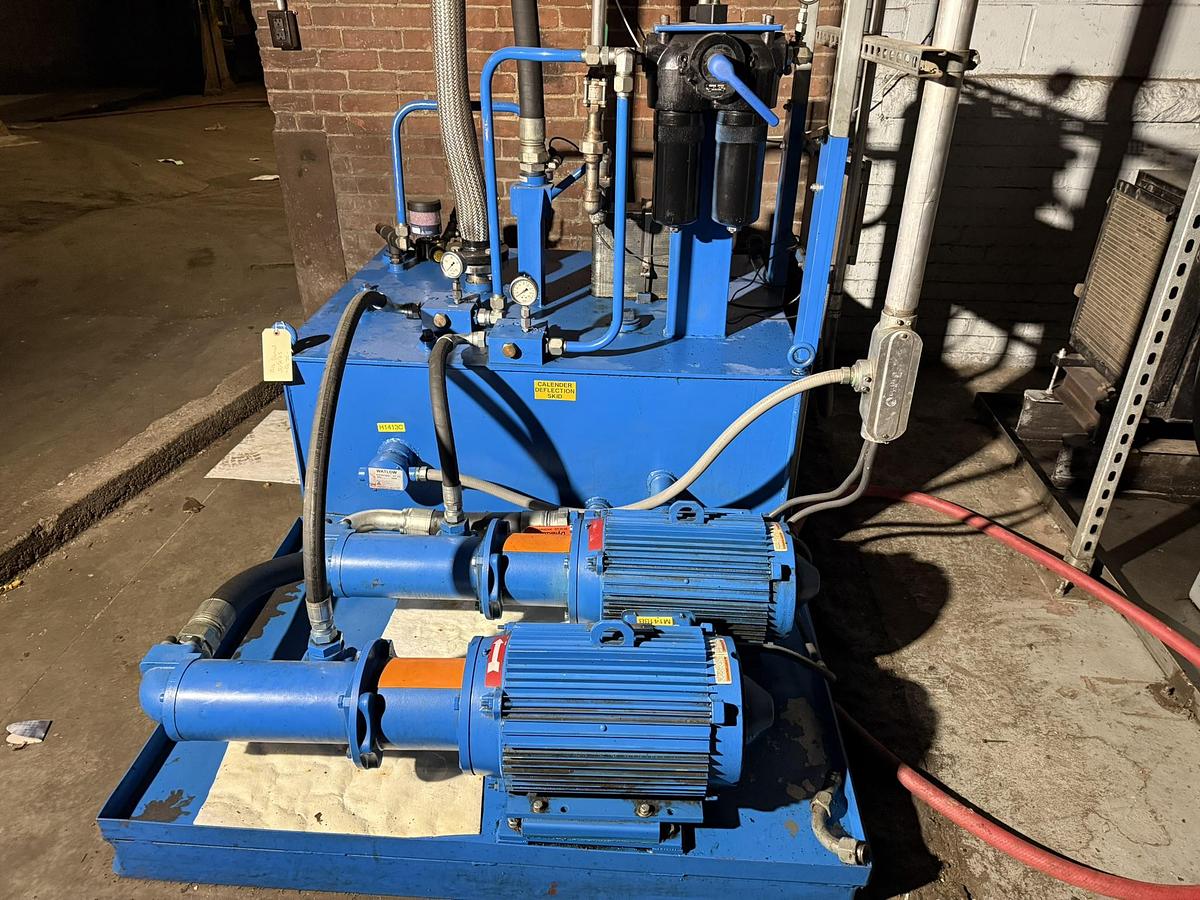

Calendar Section
- Rebuild Year: 2011
- 1000 PLI
- Controlled crown roll
- Swimming roll

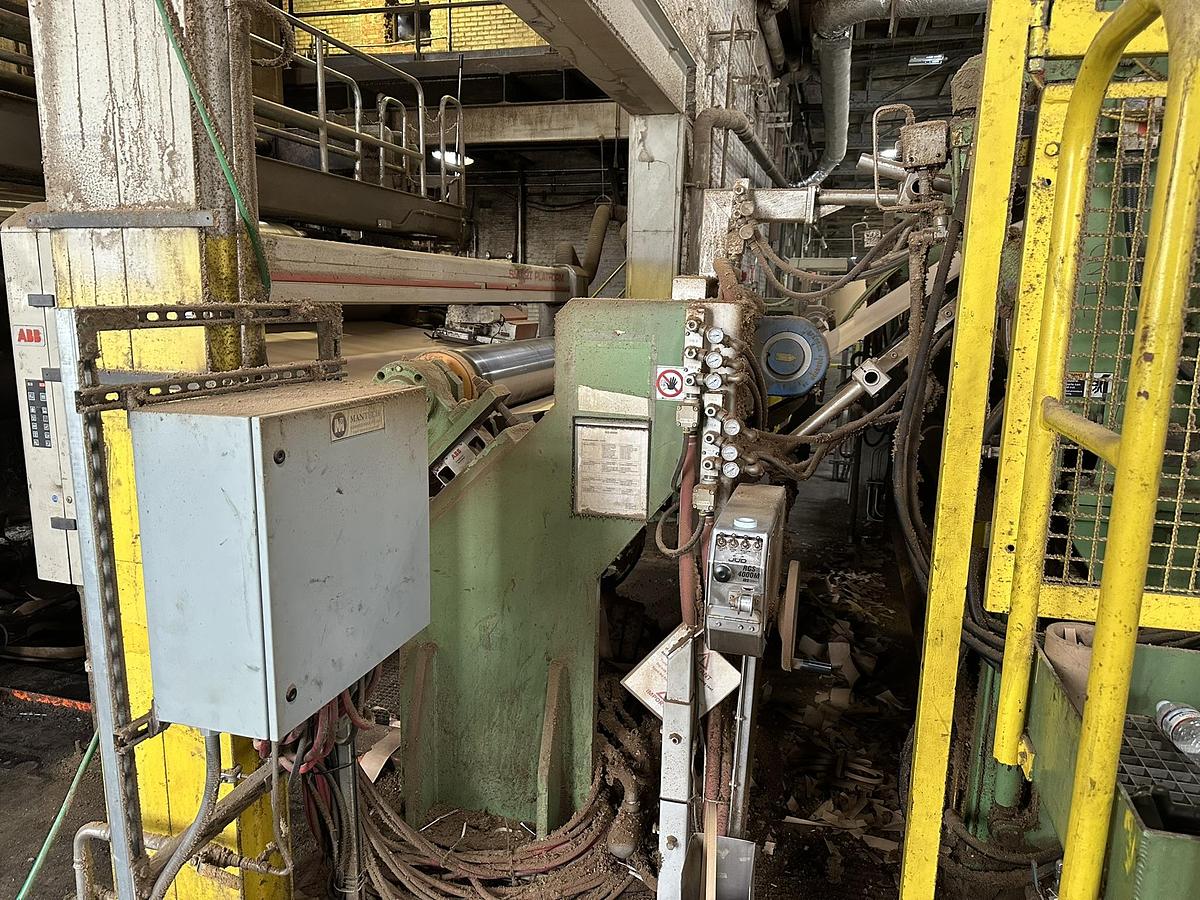

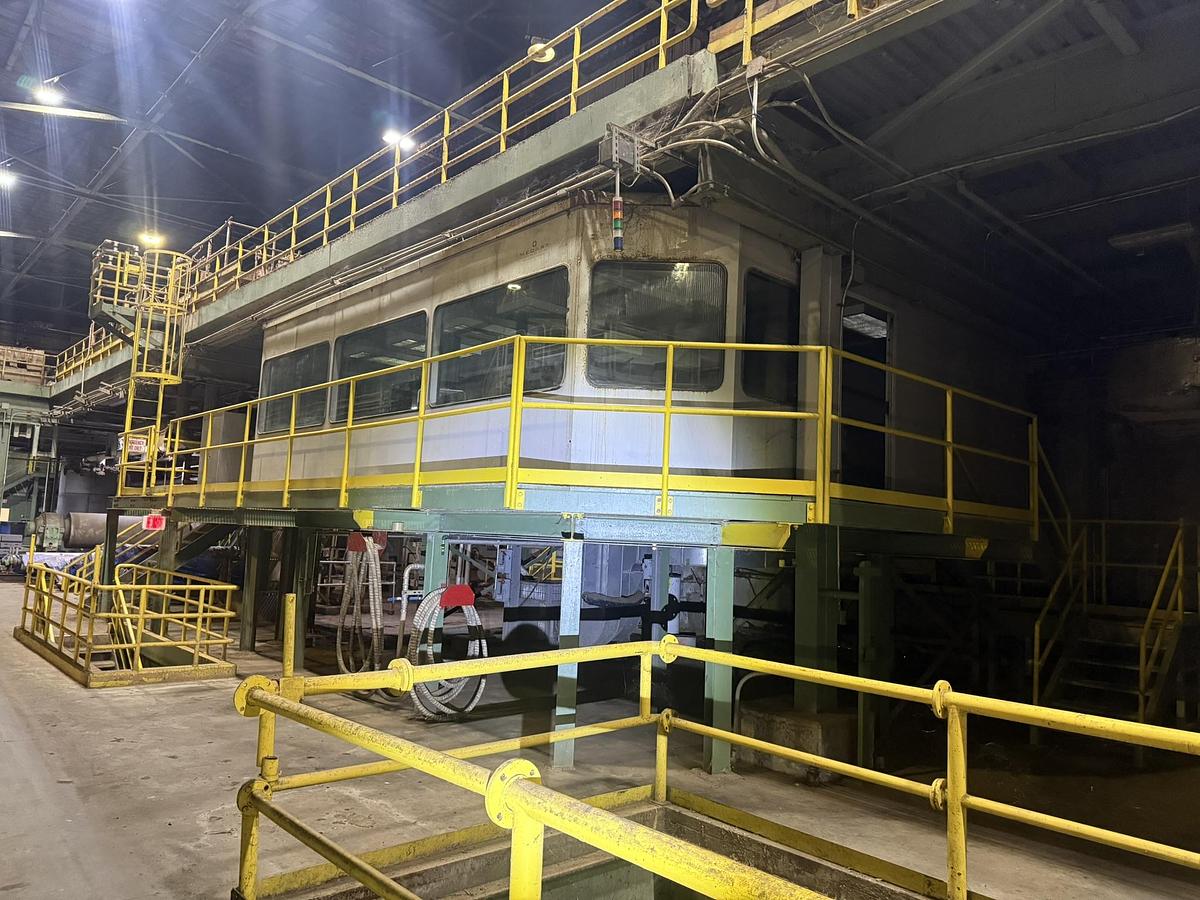

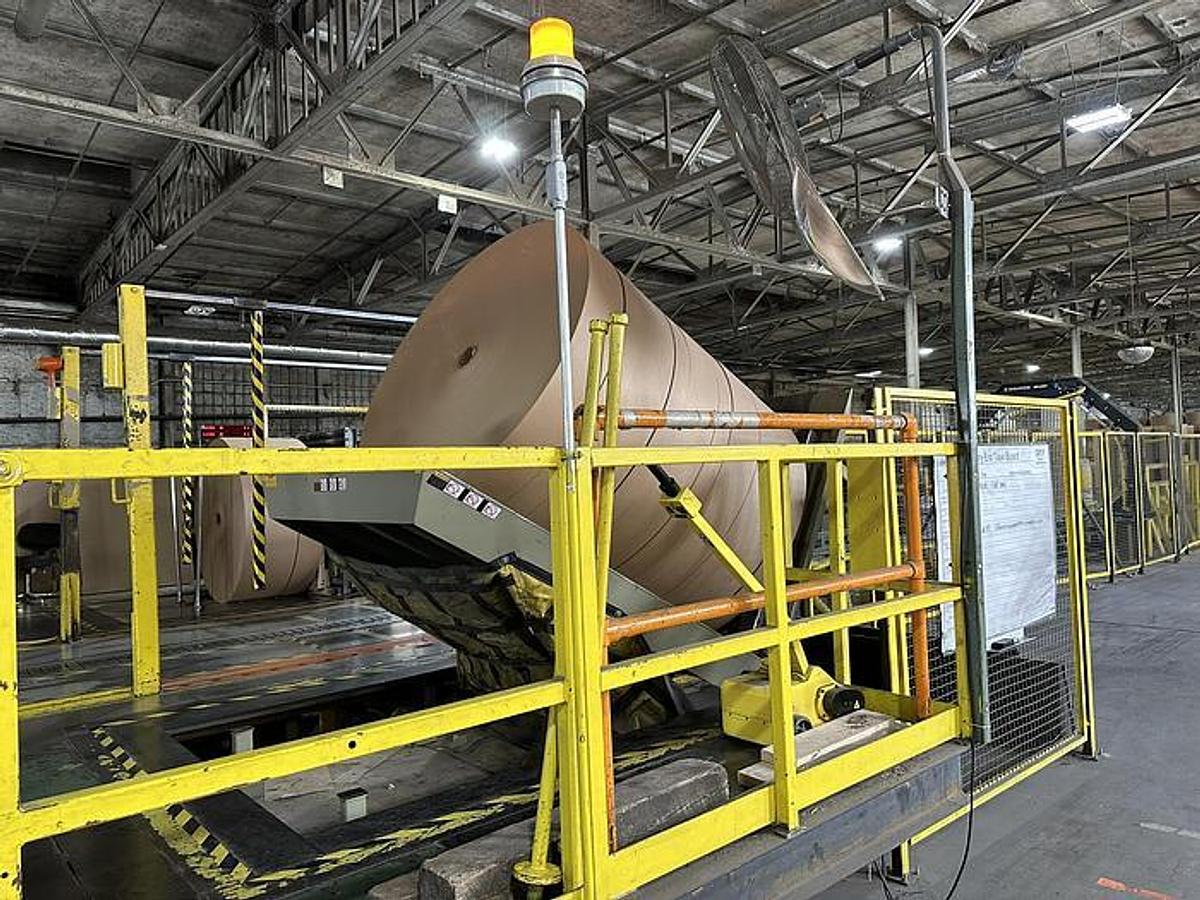

Reel & Winder Systems
- Reel Section

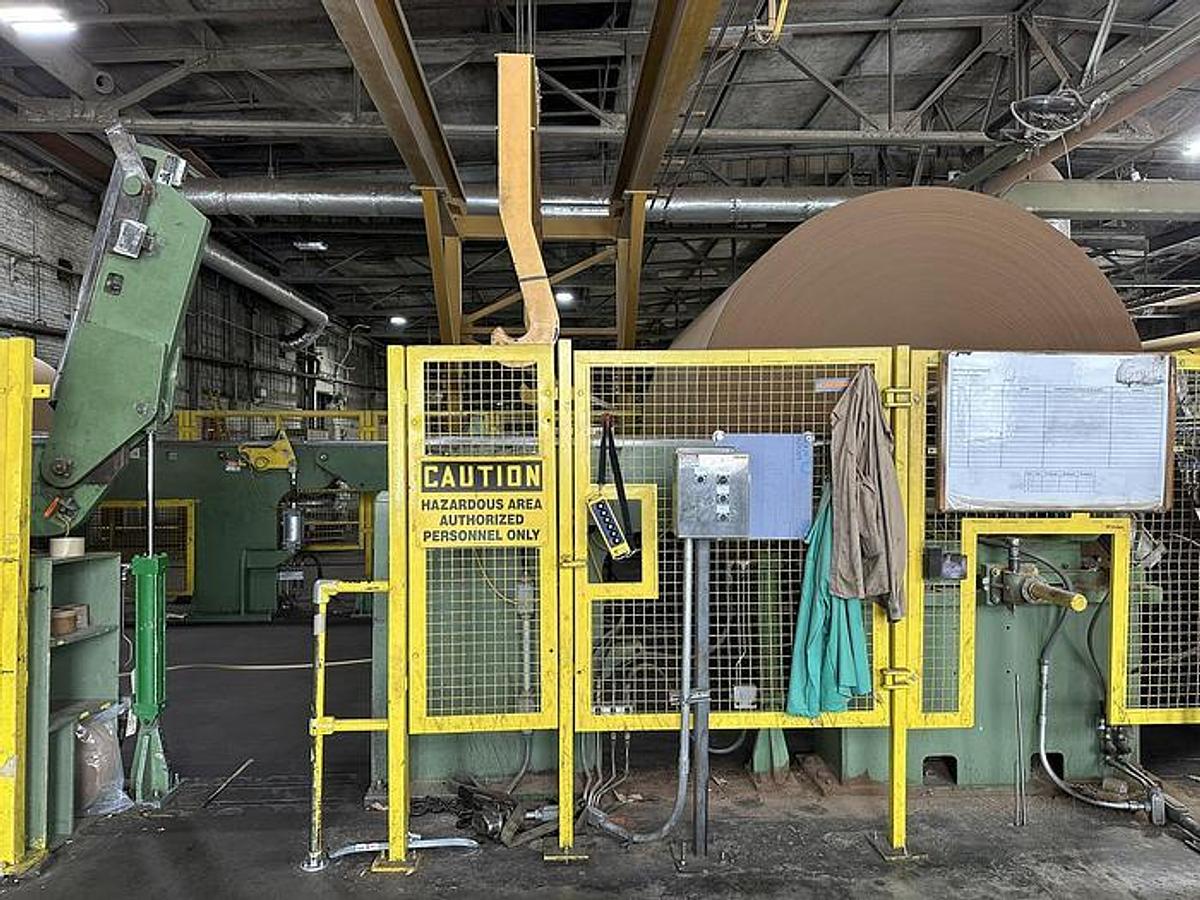

- Horizontal track reel

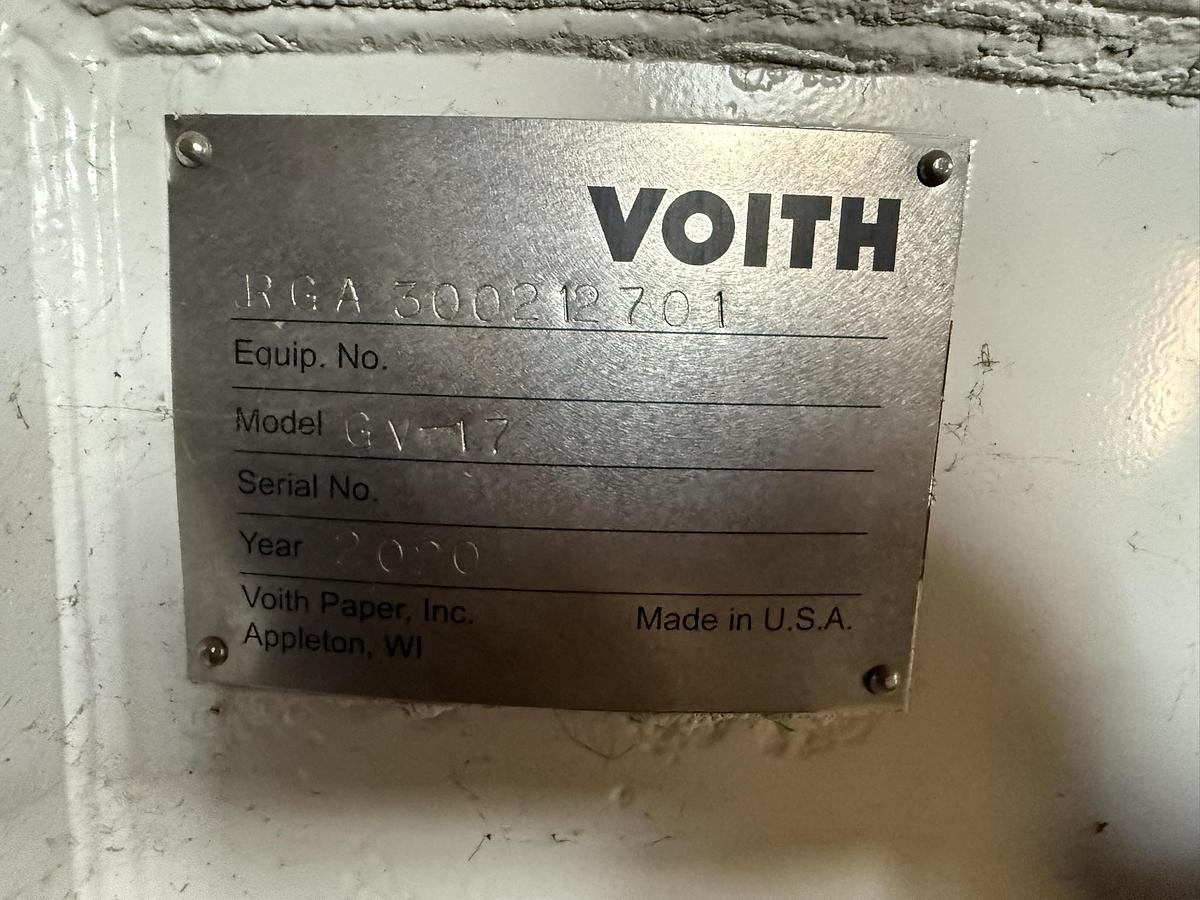

- Voith JUD turn-up system installed 2020
- Mantech auto tail threading system (2022) from last press to reel
- Rewinder

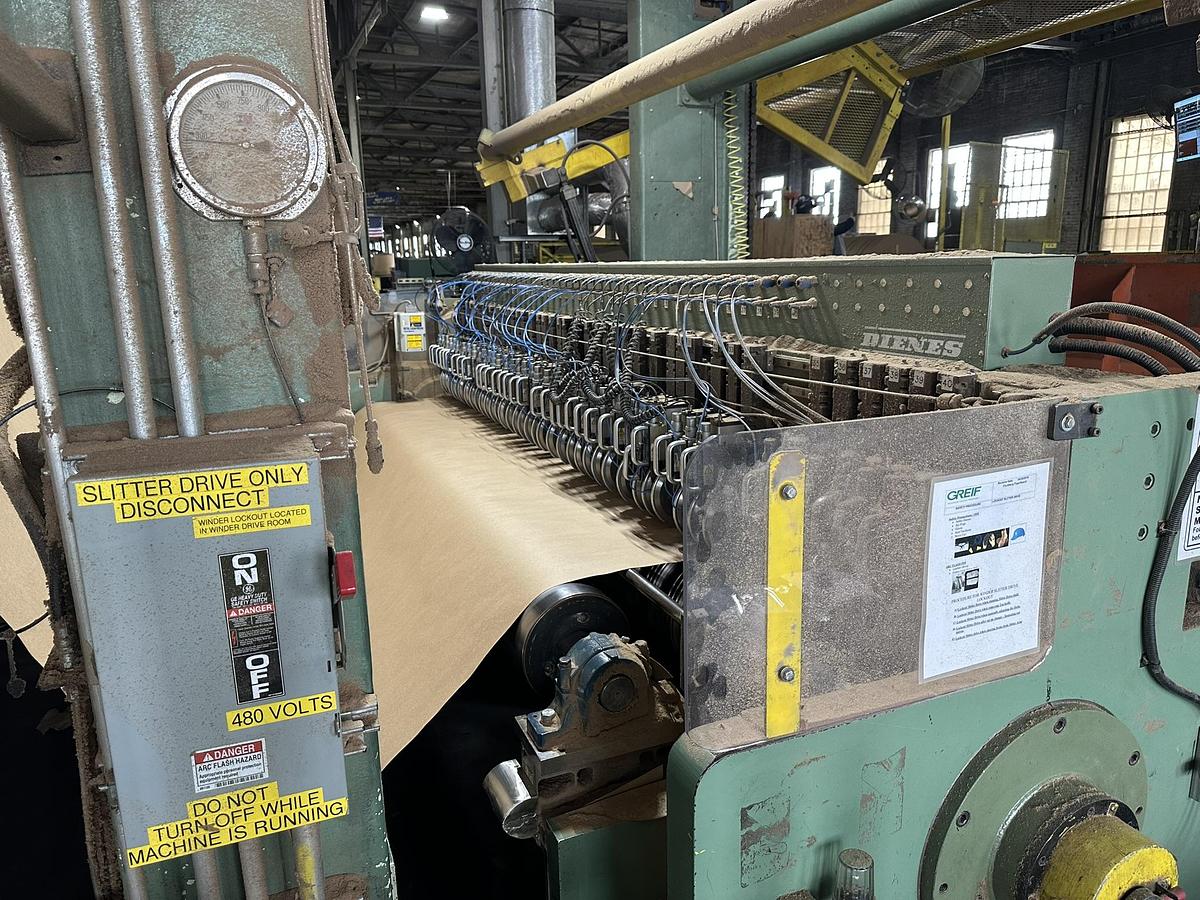

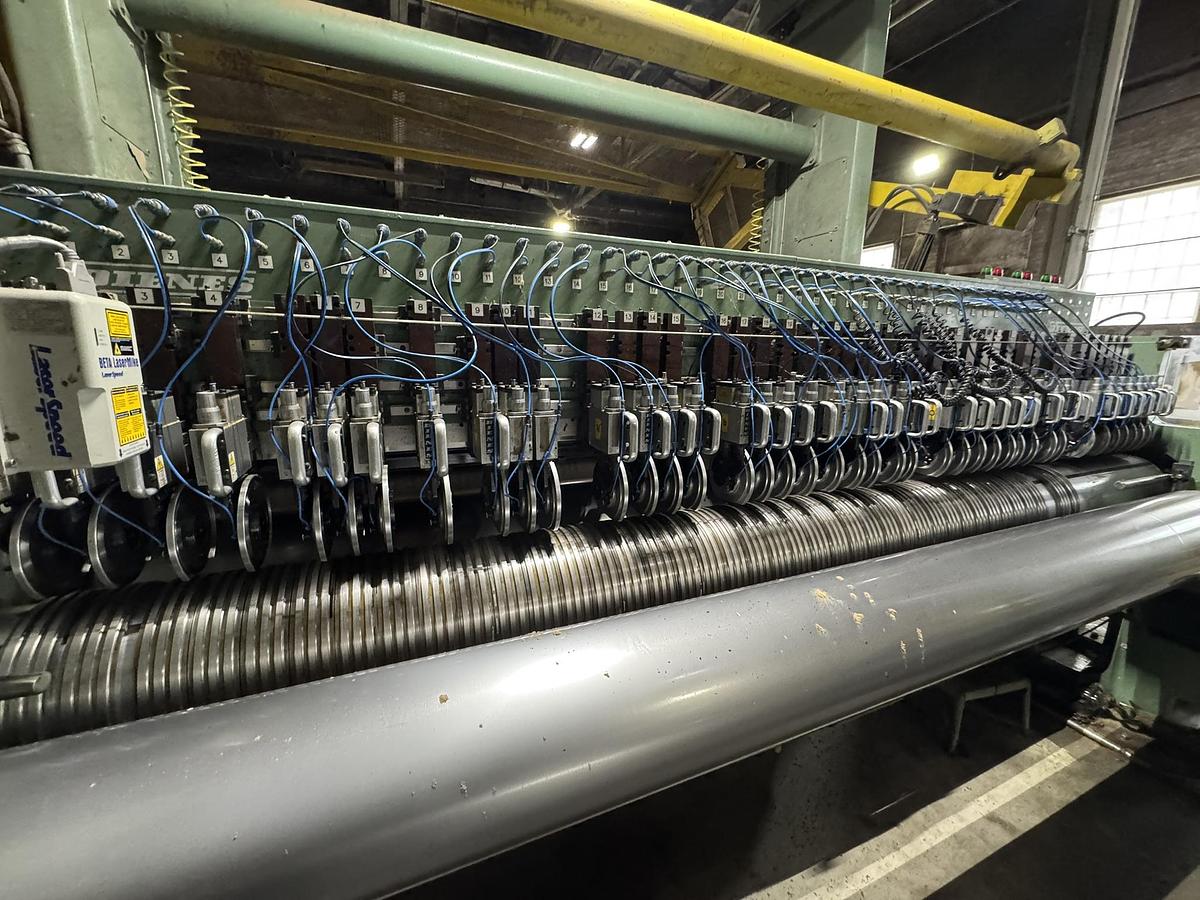

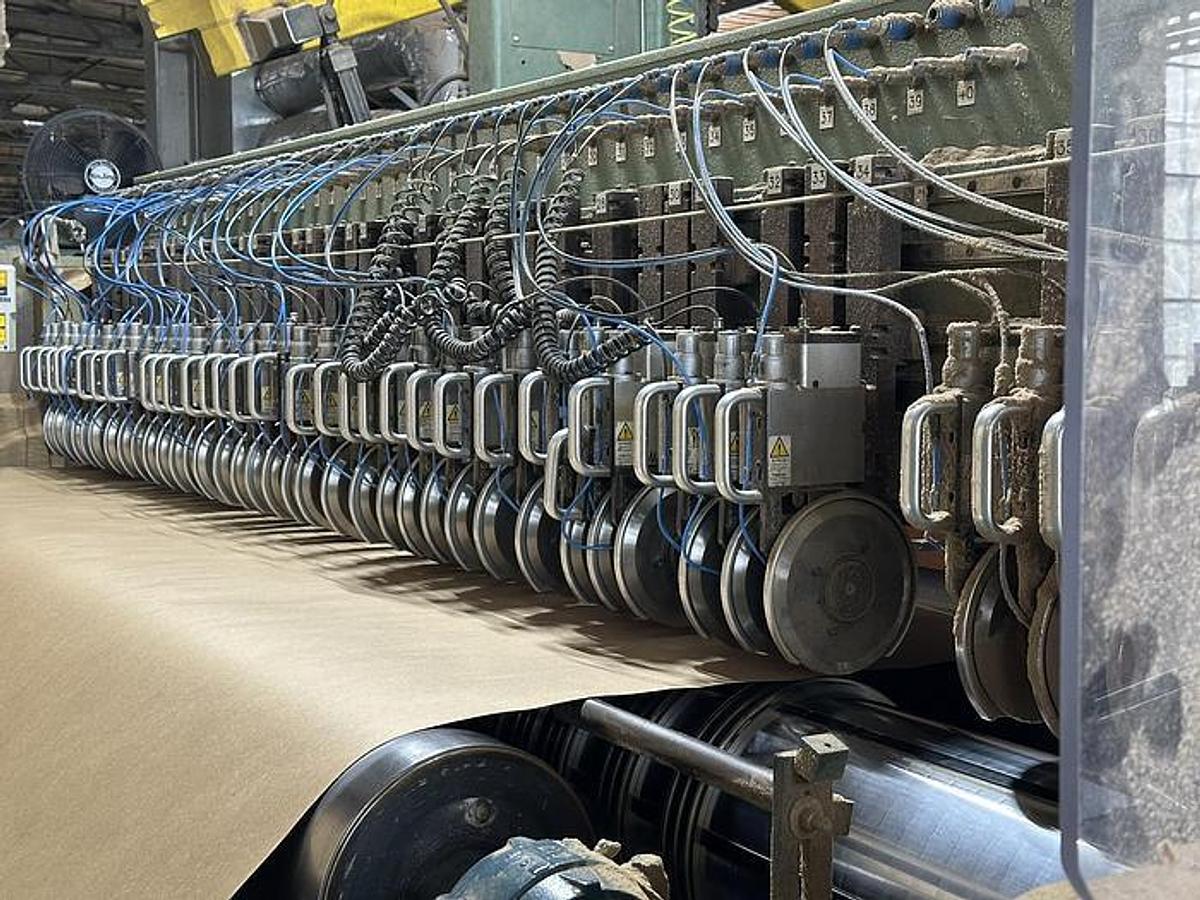

- Beloit M-24 two-drum slitter rewinder
- Shaftless 60" rewind. Rated 4500 FPM
- Updated Dienes automatic knife positioning (2013)
- Siemens DC winder Drives and Control system installed 2013
Vacuum System

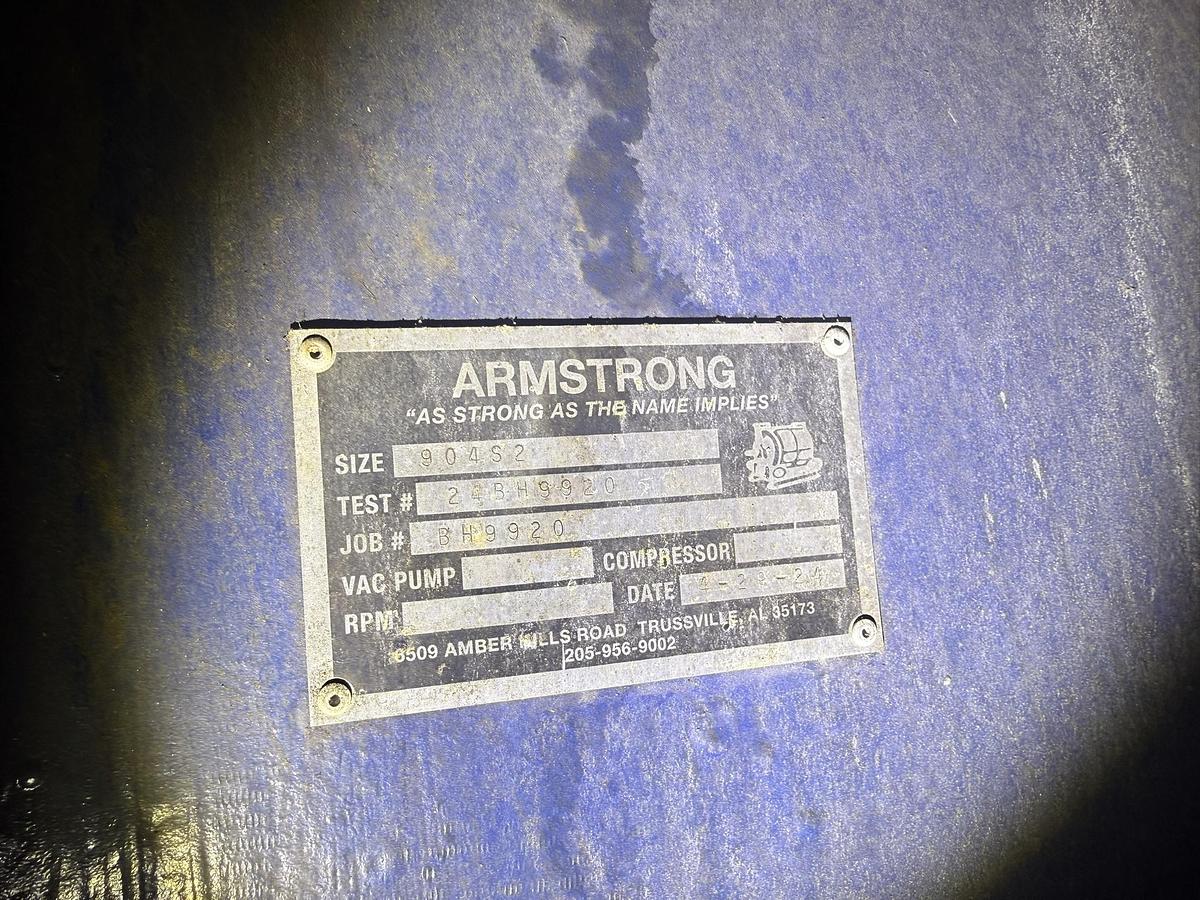

- Nash 904S2 series pumps
- Nash M2 series pumps
Included Spare Parts
- Major rolls
- Suction boxes & table elements
- Main bearings
- Drive shafts & drive motors
- Gearboxes
- Fan pump assembly
- Additional spare rolls, felts, clothing, and parts
- Additional Machine Available (For Parts)
A second, identical machine is on site, including:
- Air-pad headbox
- Fourdrinier table
- Dual shoe presses
- (40) Dryers: 72" (1.8M) diameter, 150 PSI at 450°F
Status: Plant closed May 2025 due to corporate consolidation
Documentation: Complete documentation available on site
Additional Asset: Identical second machine available for parts
