G&H Tuber 517 und W&H Bottomer AD2360/16
G&H Tuber 517 and W&H Bottomer AD2360/16
Multiwall Paper Sack Line Made in Germany composed of:

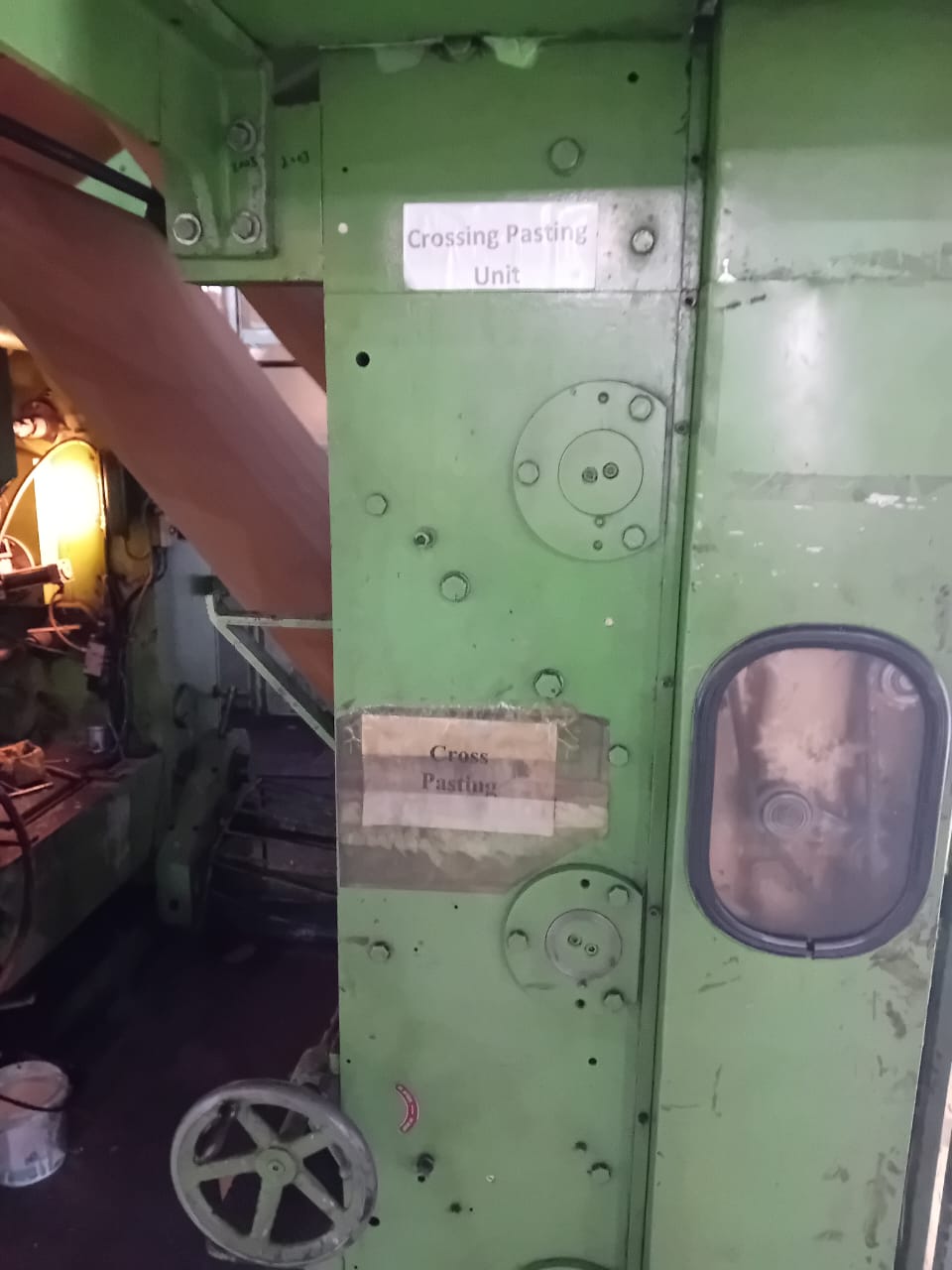

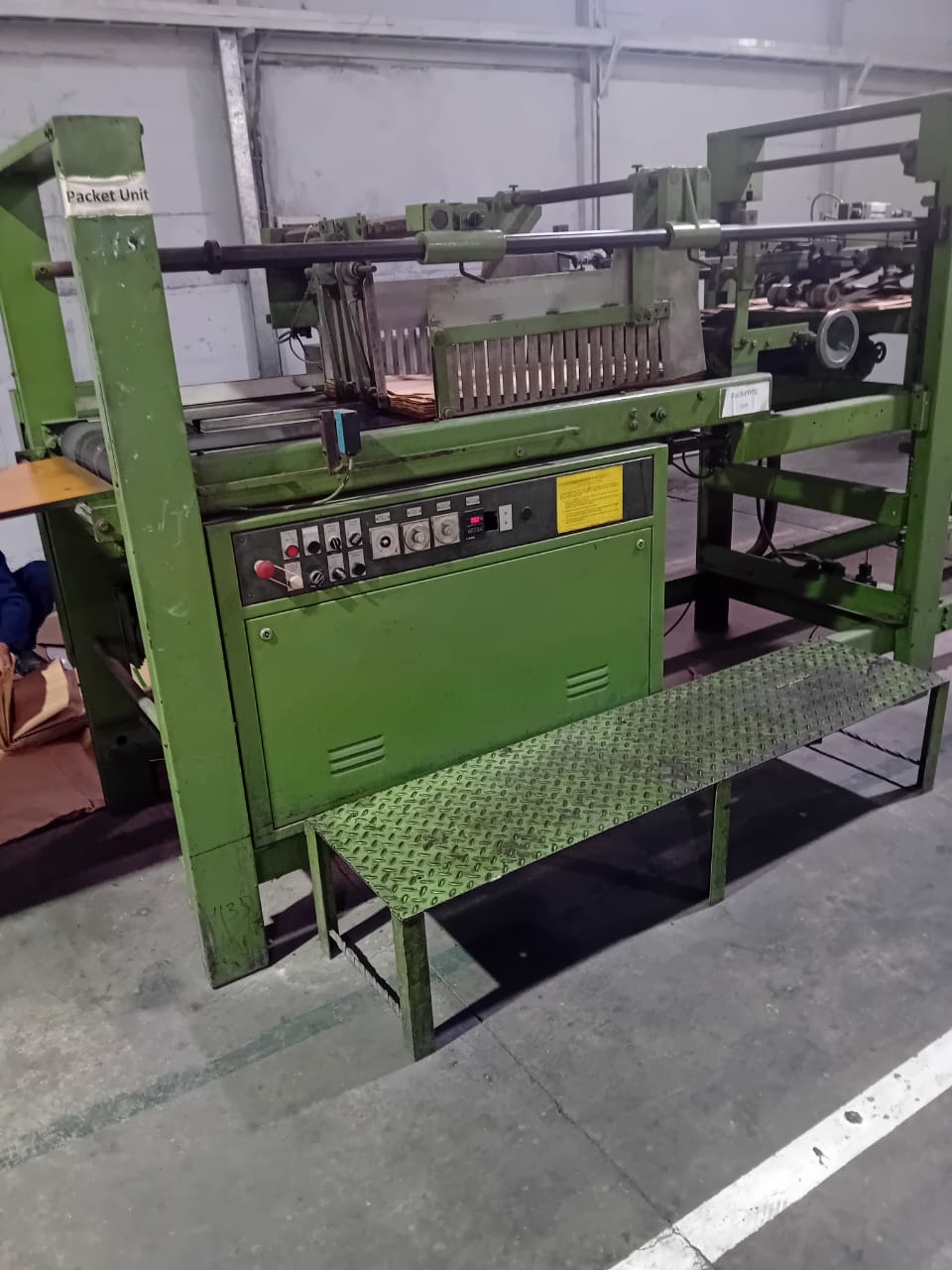

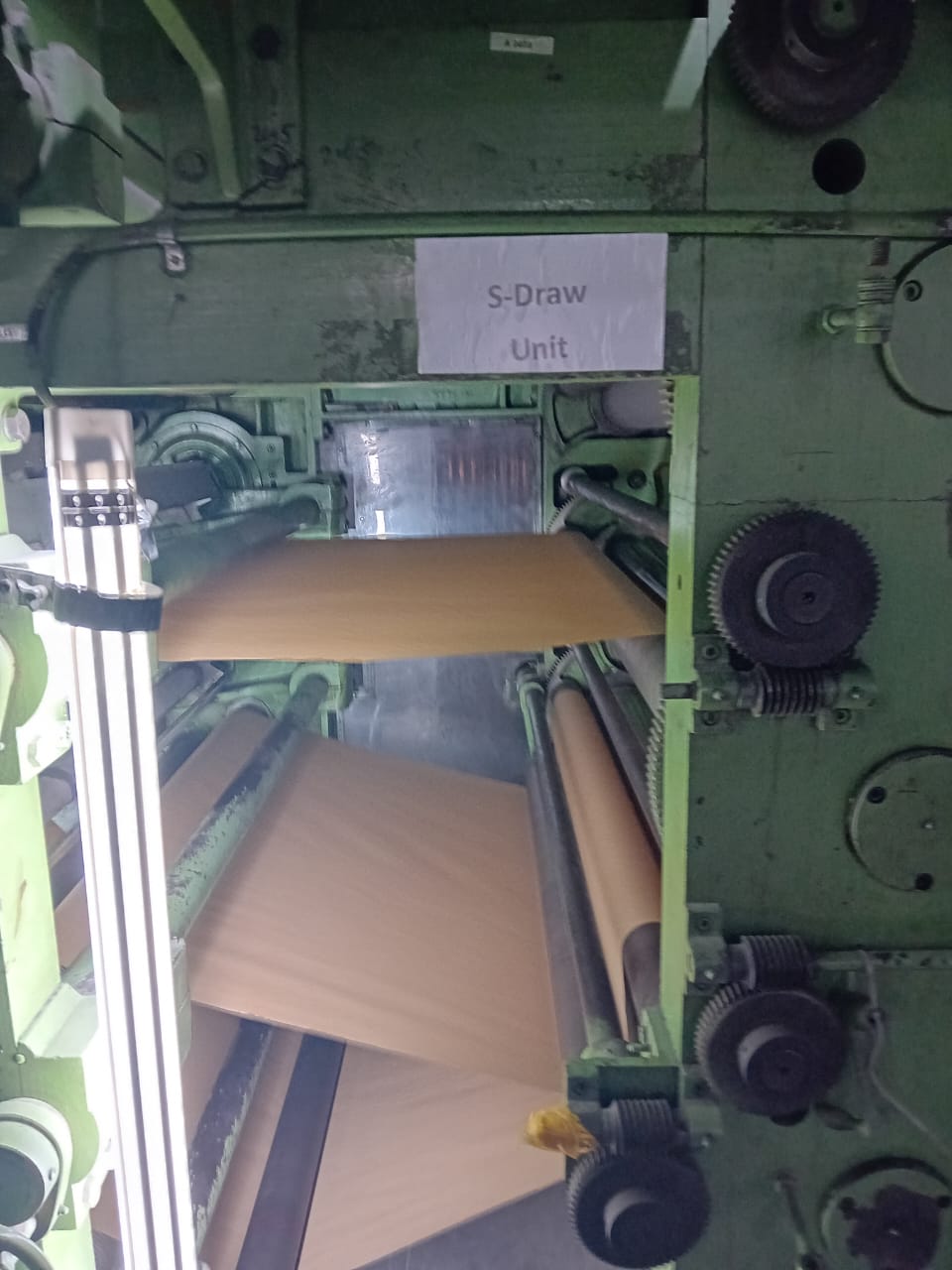

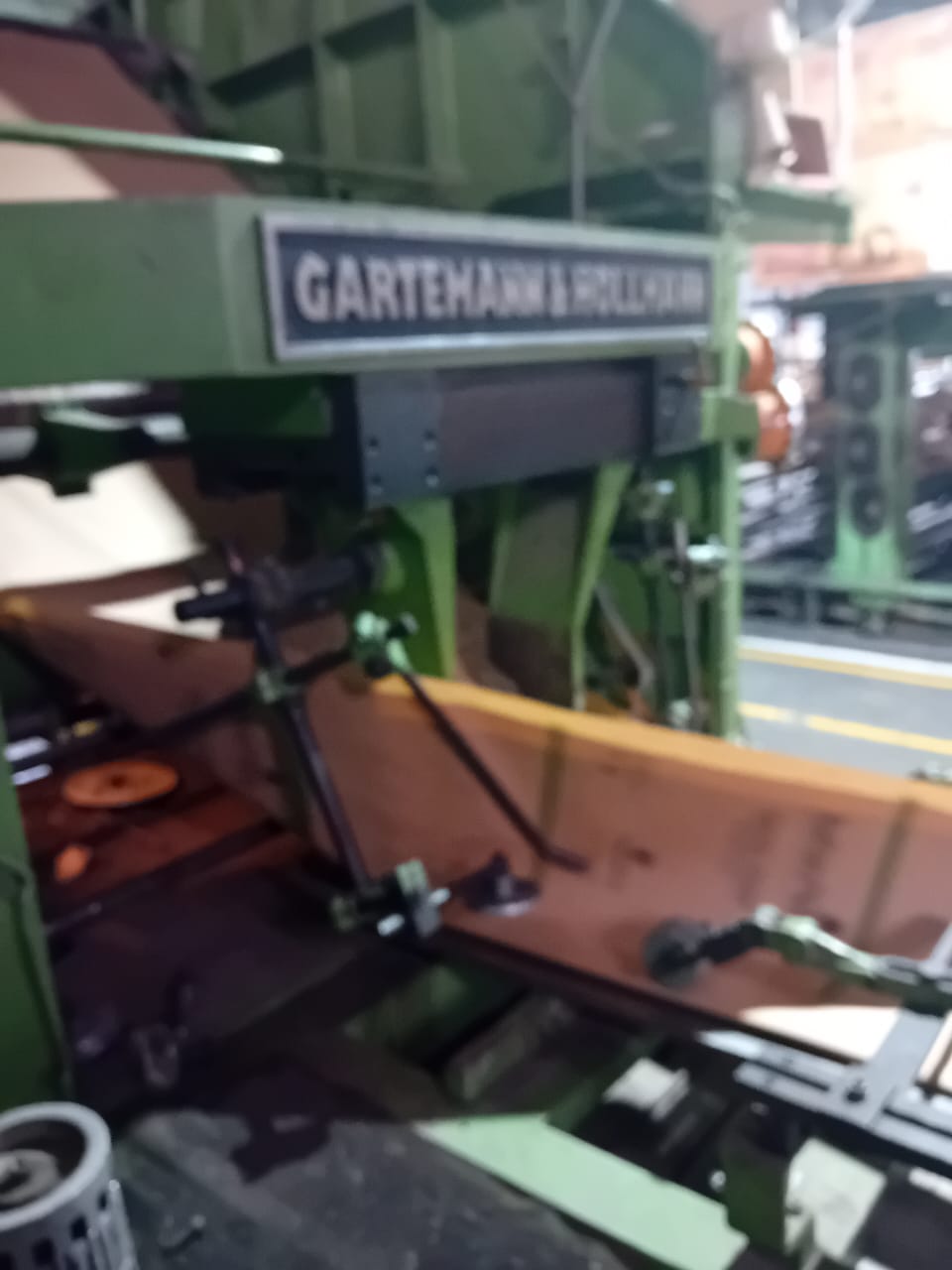

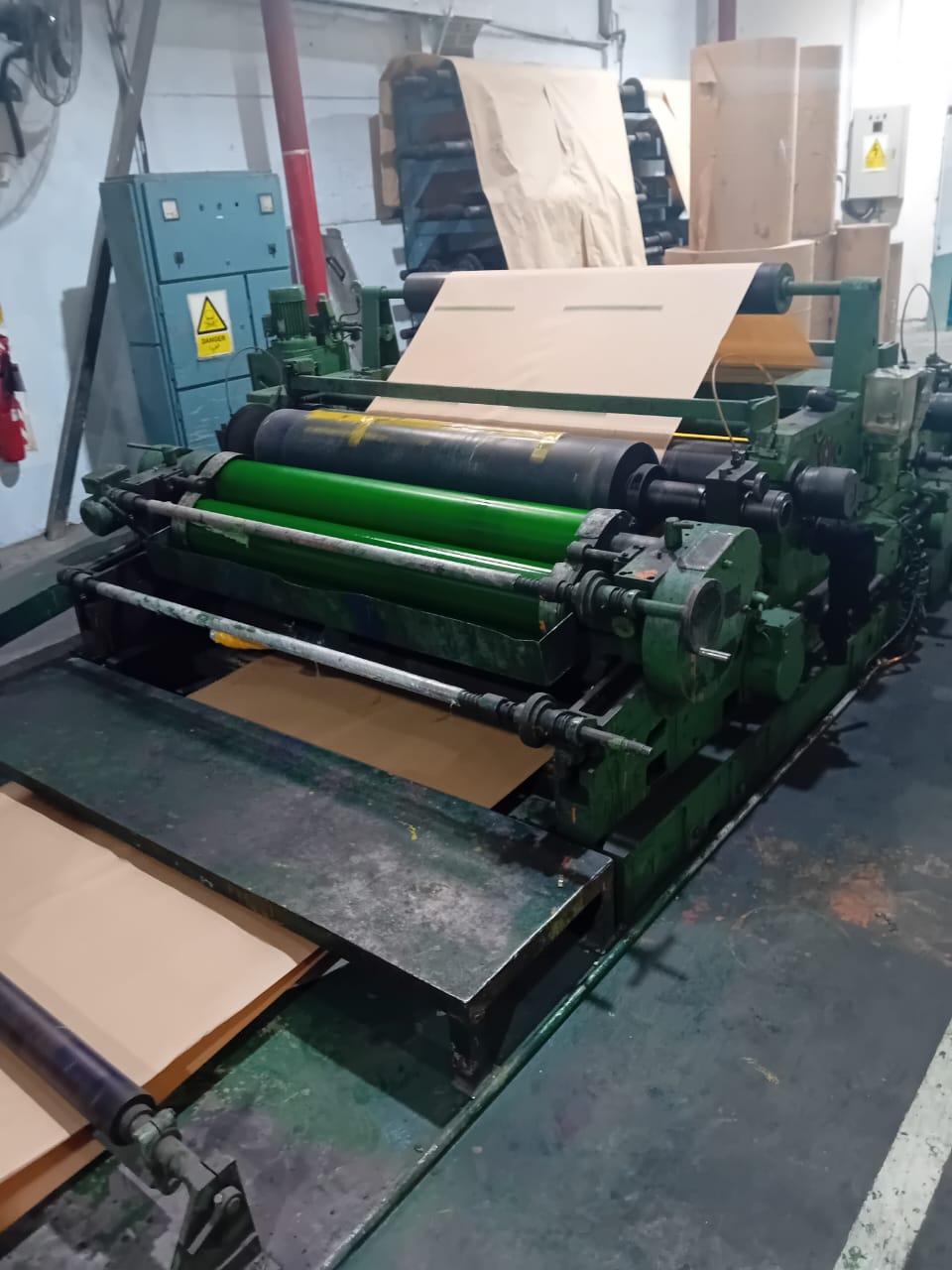

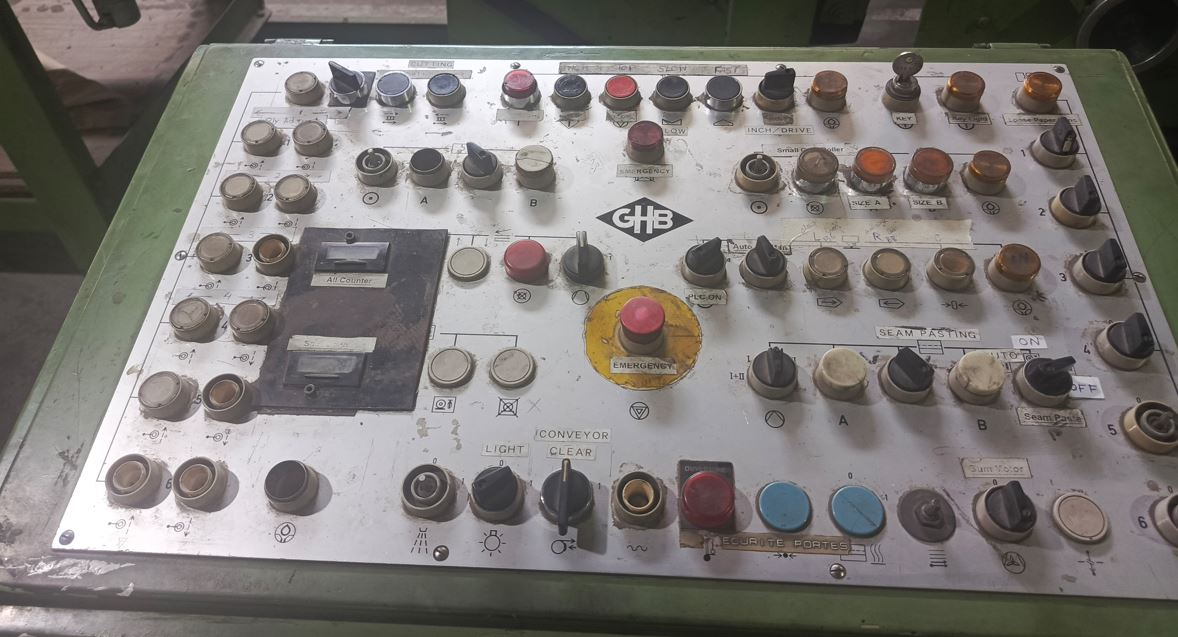

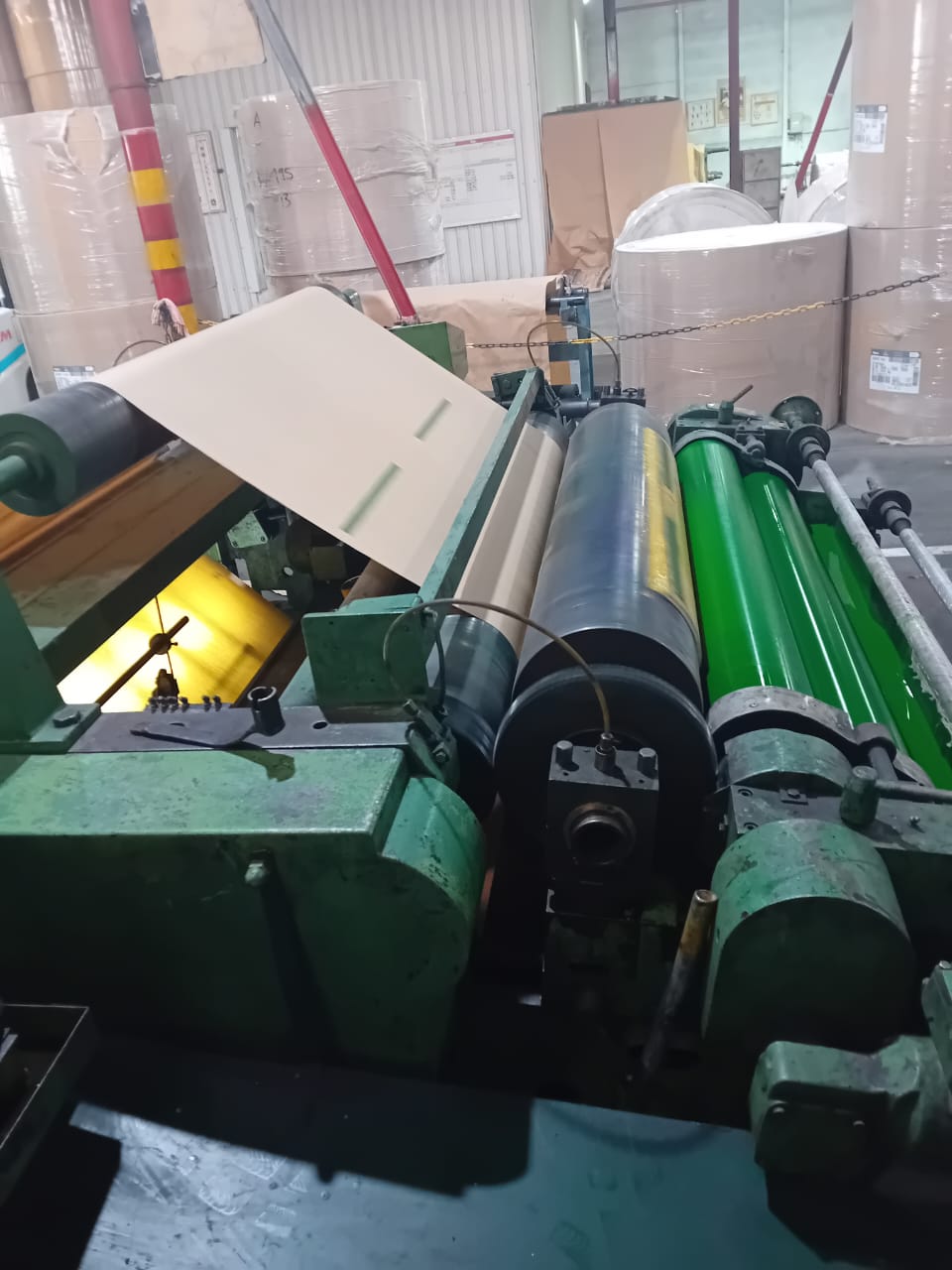

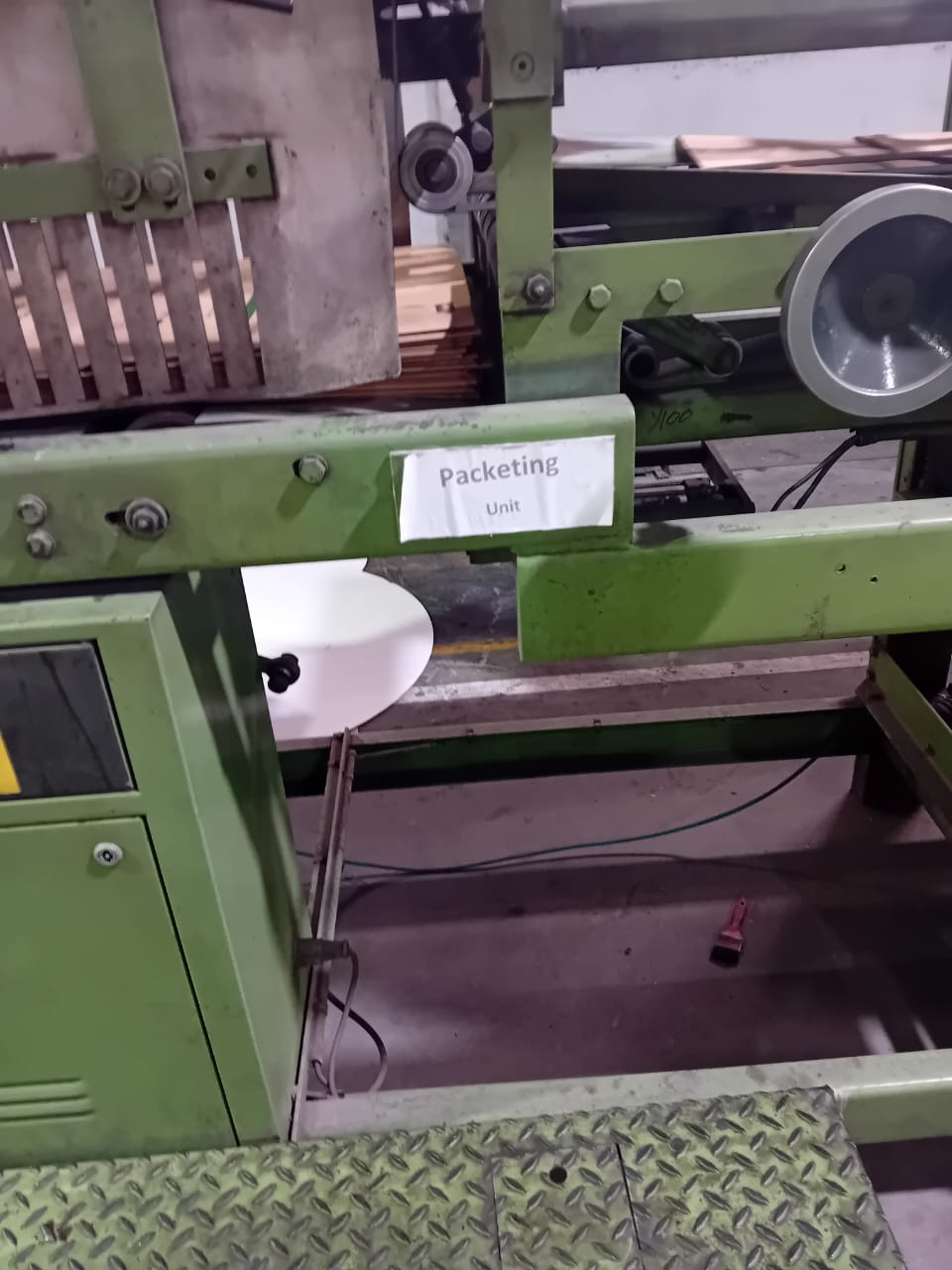

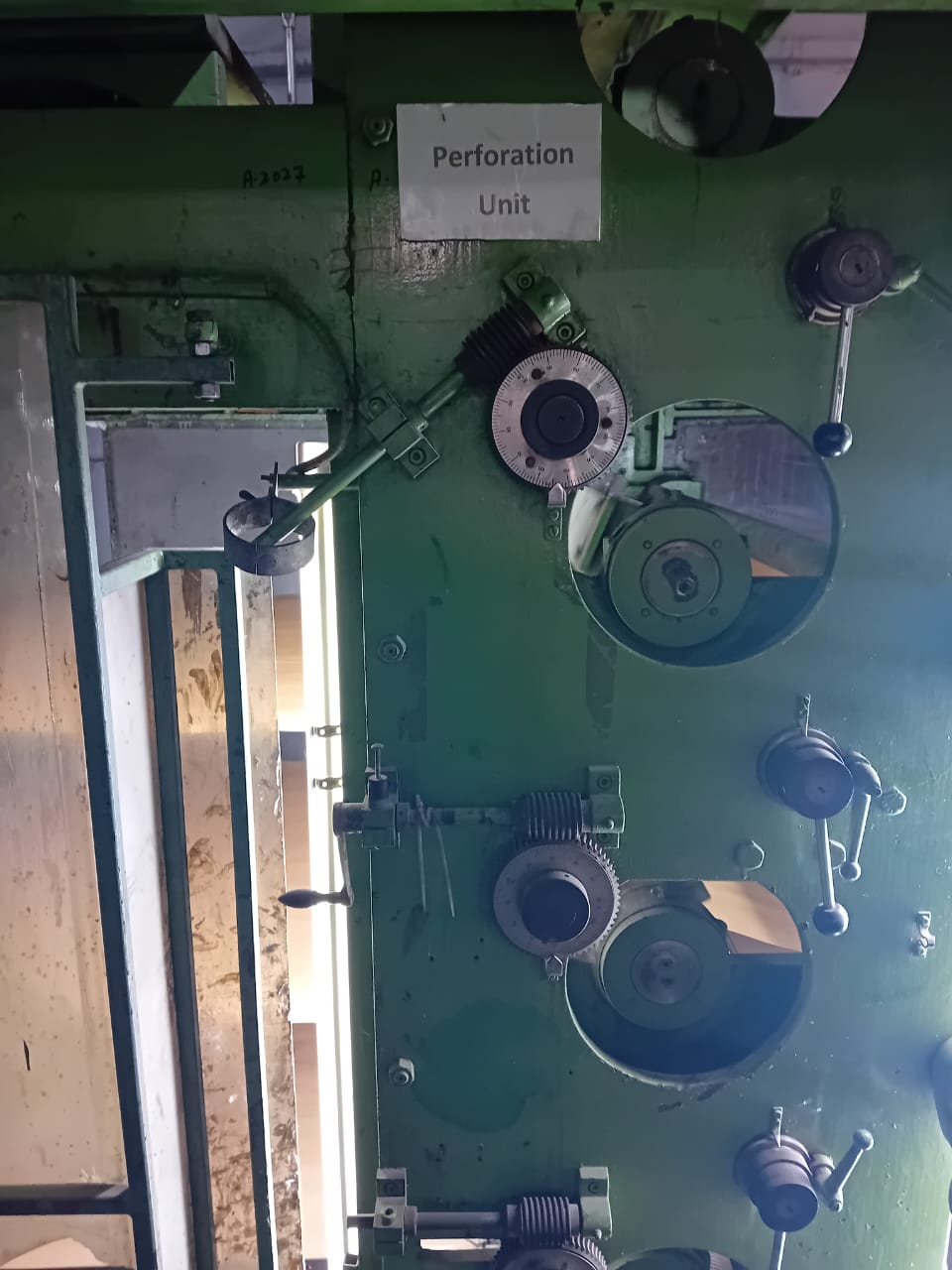

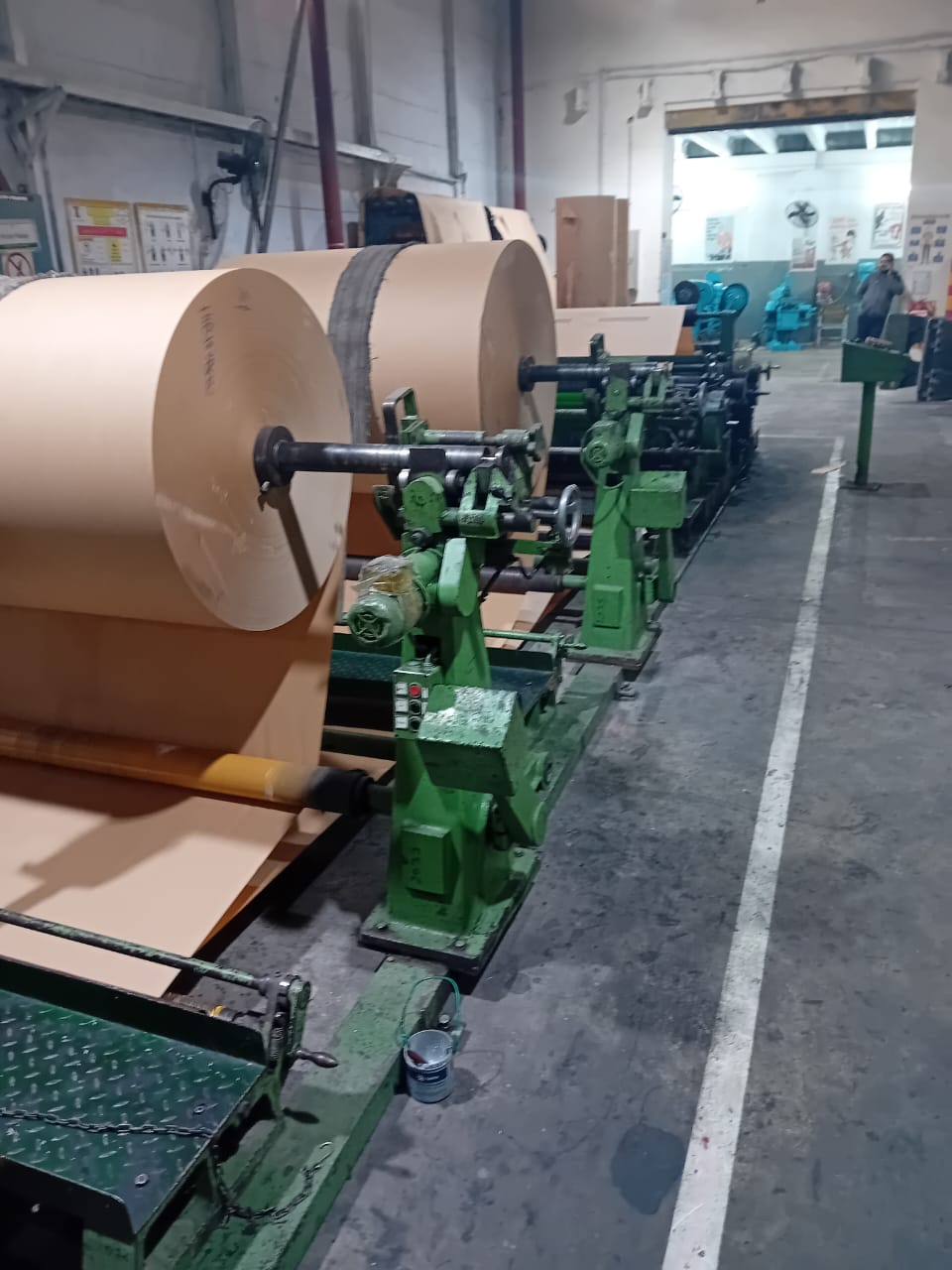

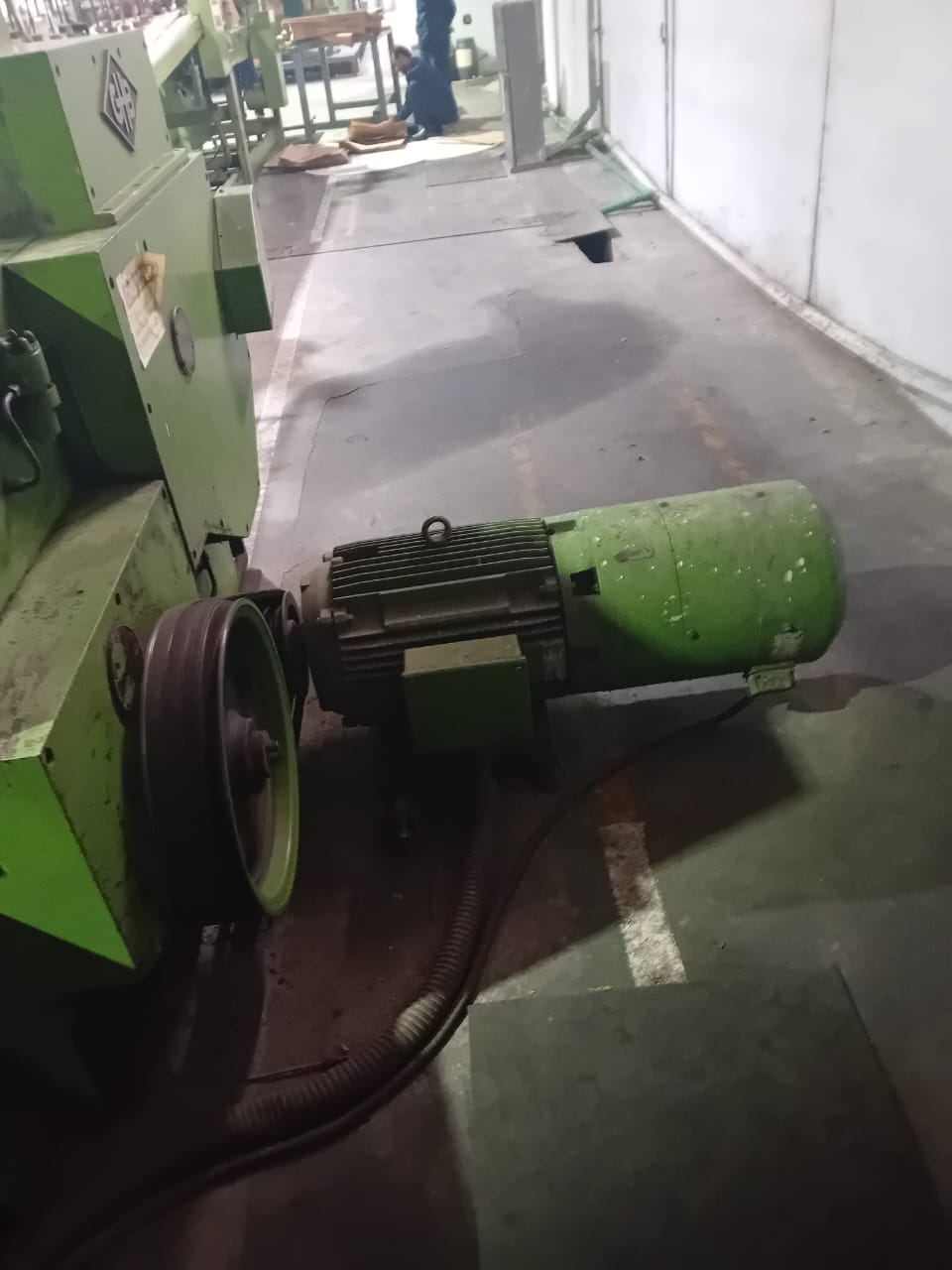

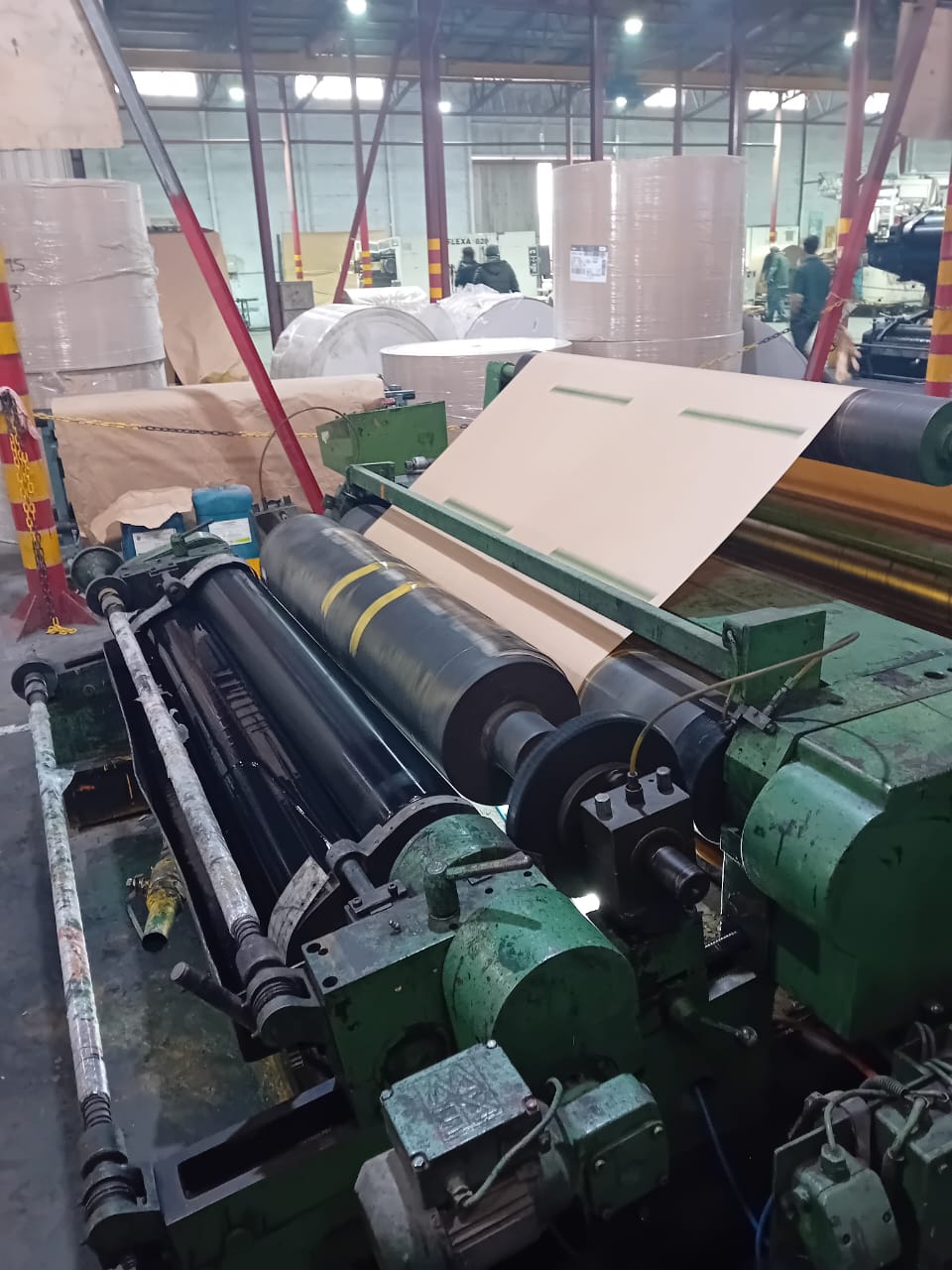

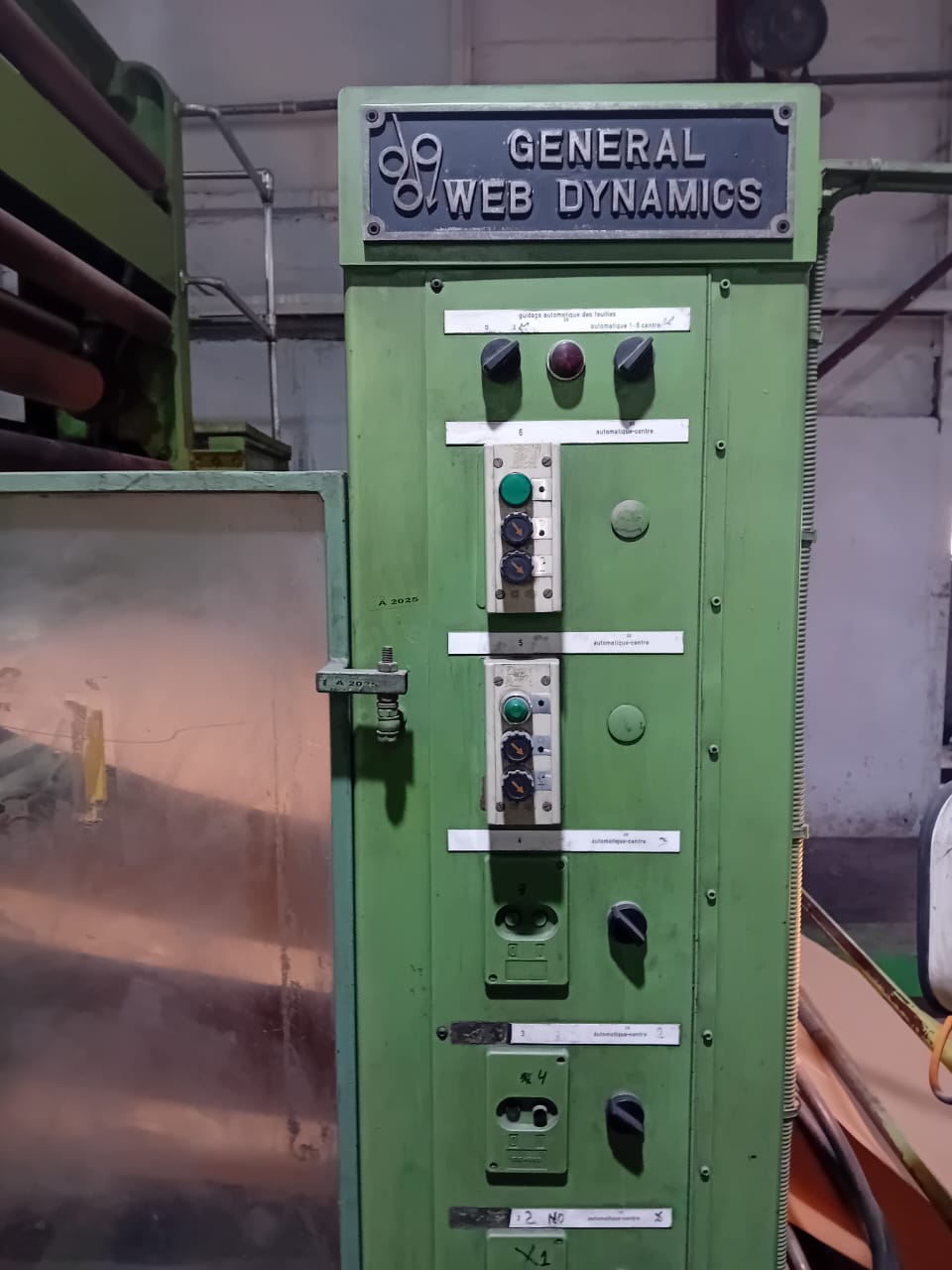

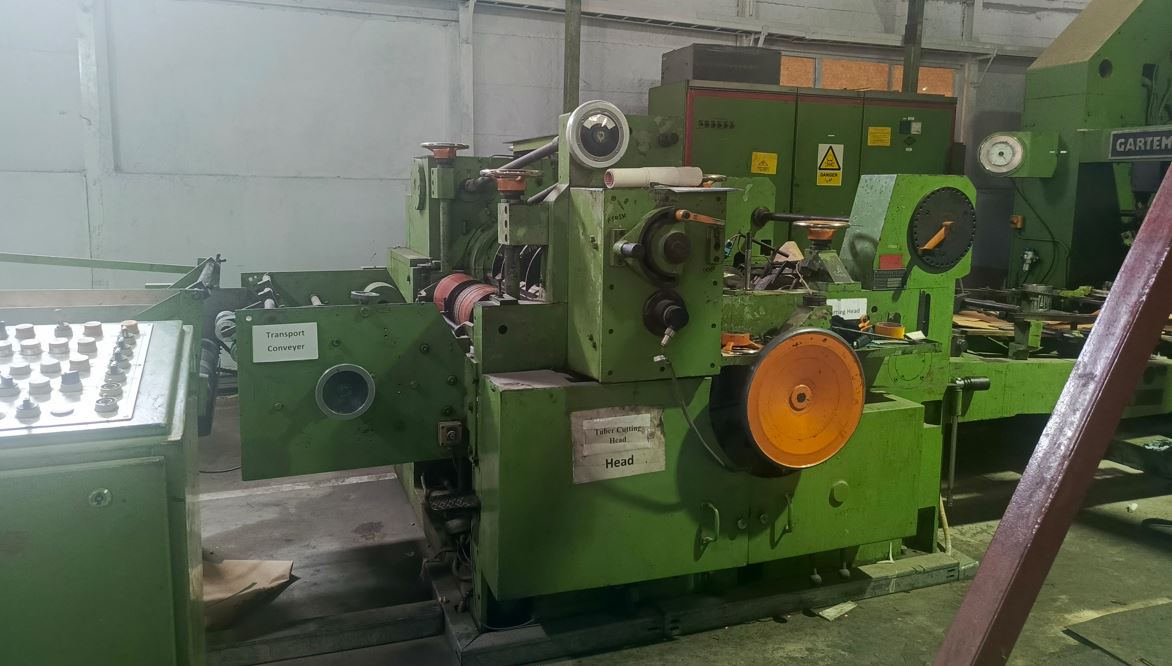

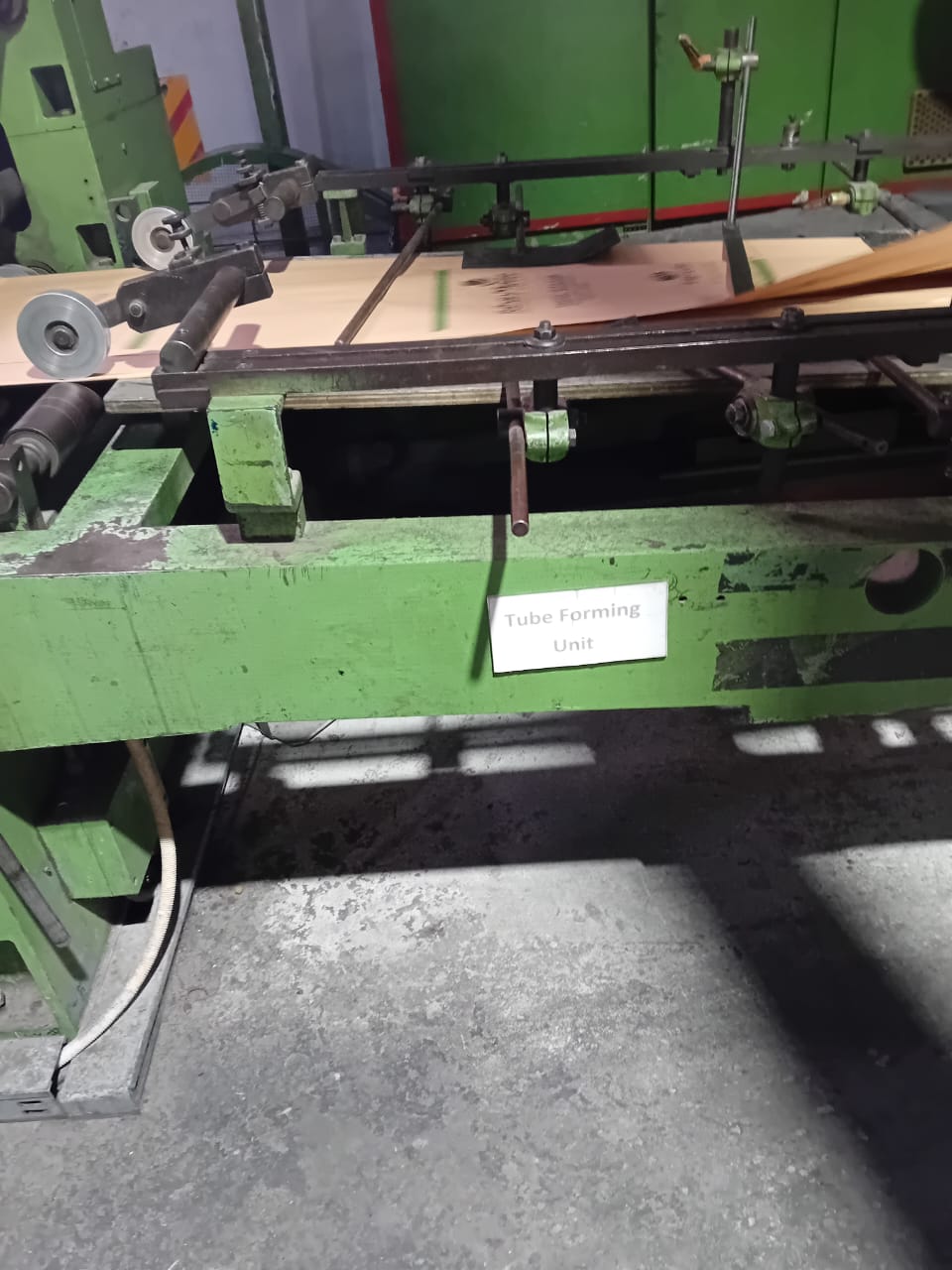

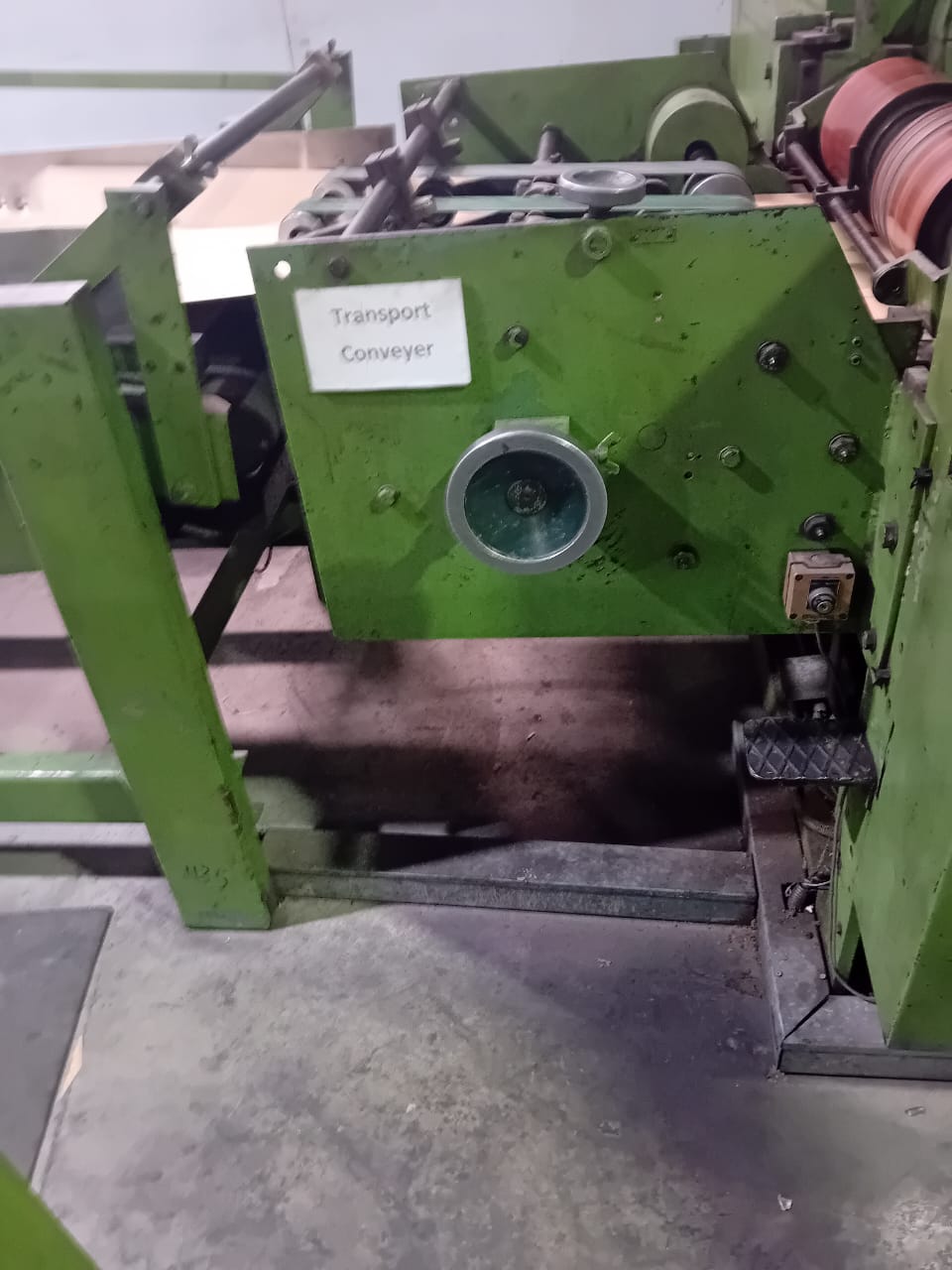

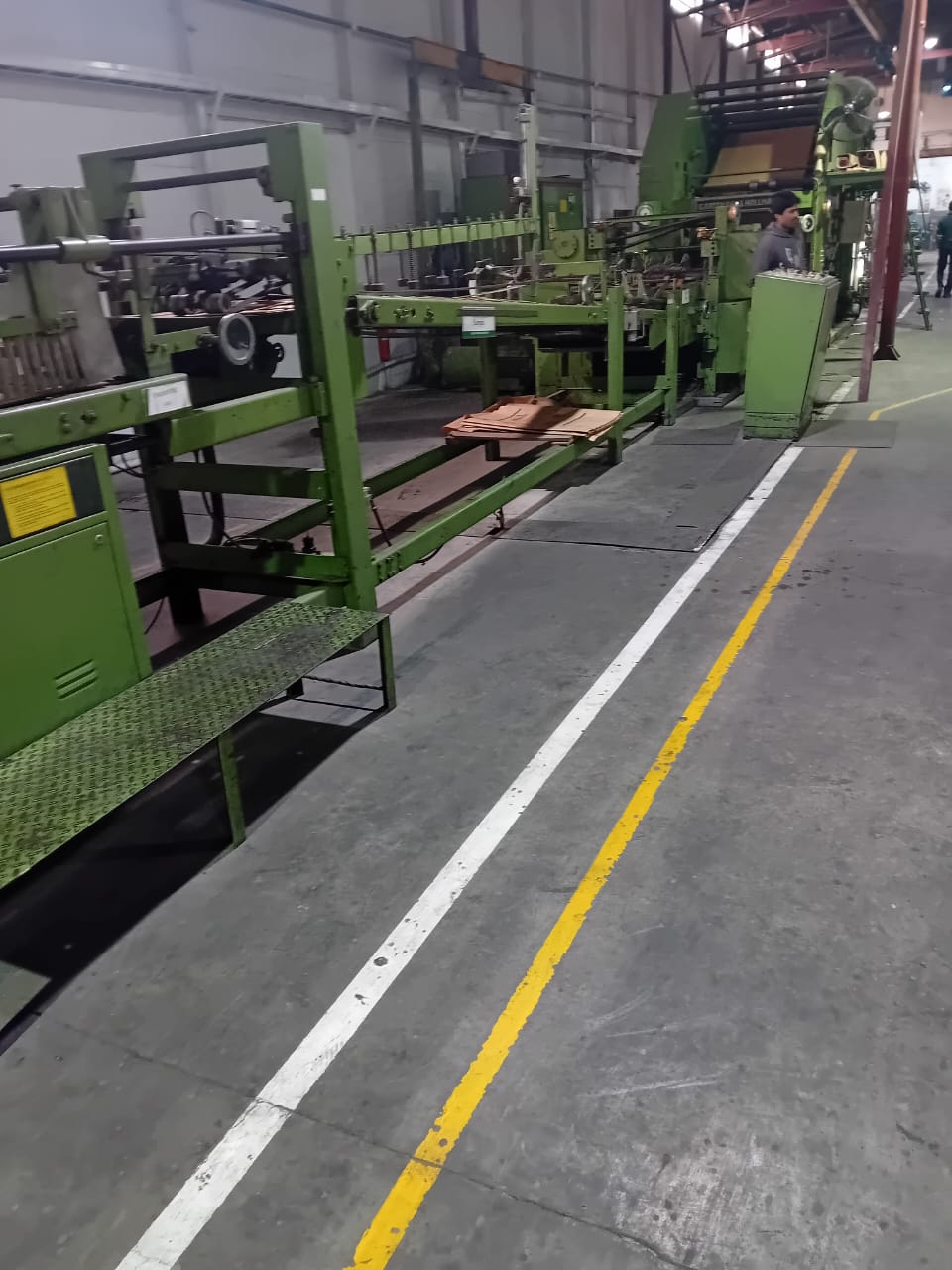

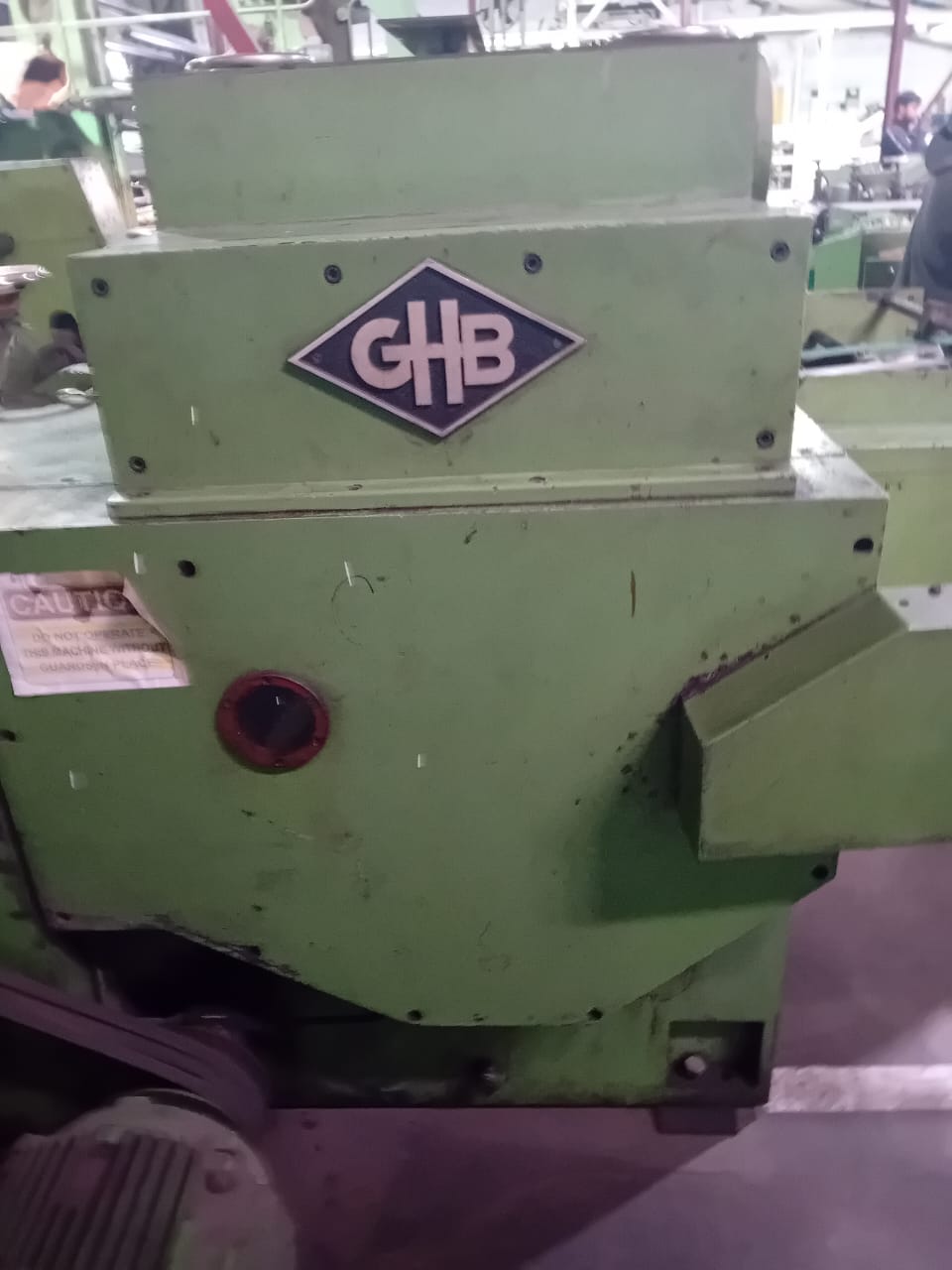

G&H Tuber 517 Flush-cut and Stepped-end-cut with photo cell, year of construction 1980 in excellent running conditions
- Tube Width: 30 cm - 70 cm
- Cut-off length - Stepped End: 50 cm - 110 cm
- Reel width : 110 cm
- Reel diameter: 130 cm
- Production Speed: 120 tubes/min
- No. of plies: 4
- Remote Access: No
- Tear-off unit: Rubber rollers
- No. of colors: 2
- Pre printed reels option : Yes

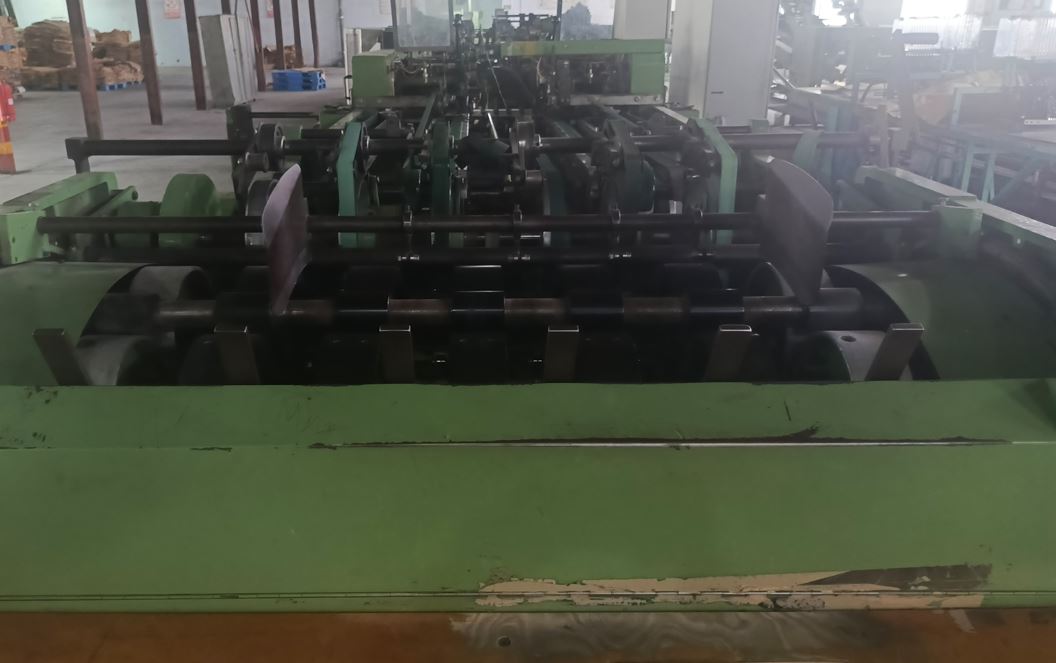

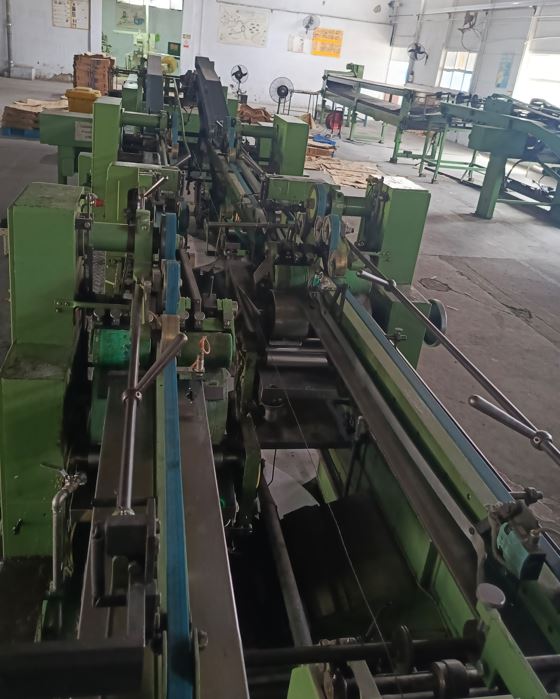

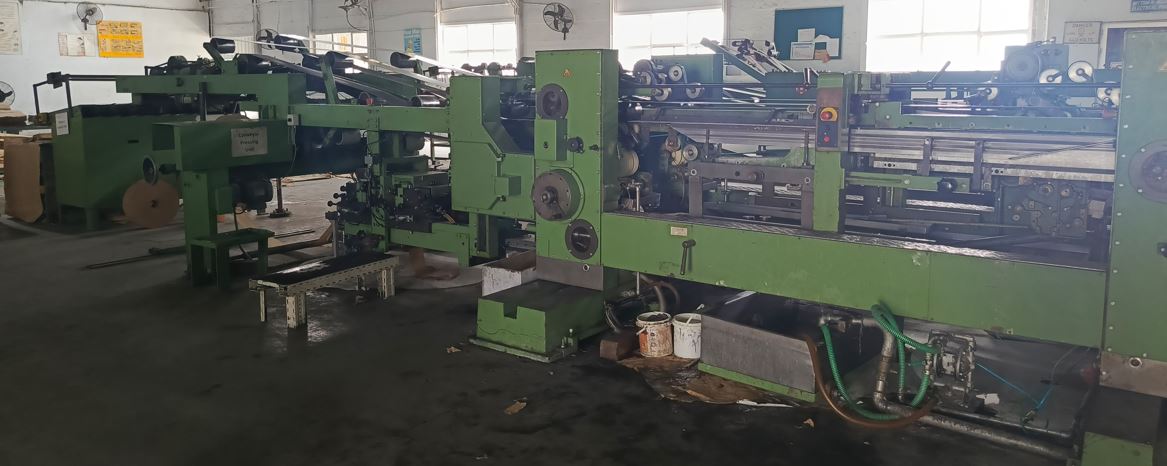

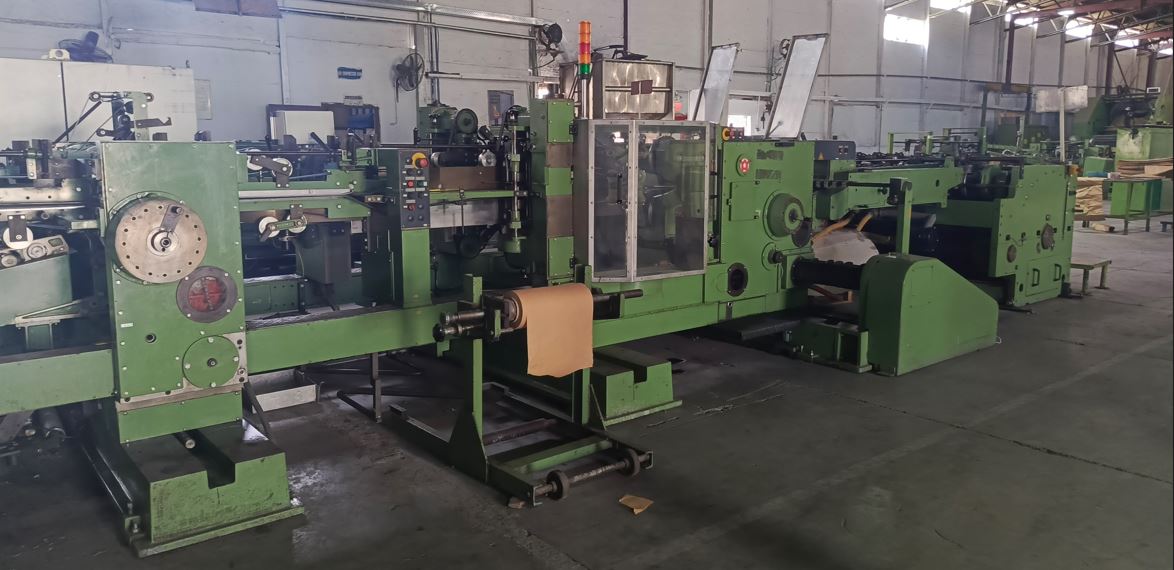

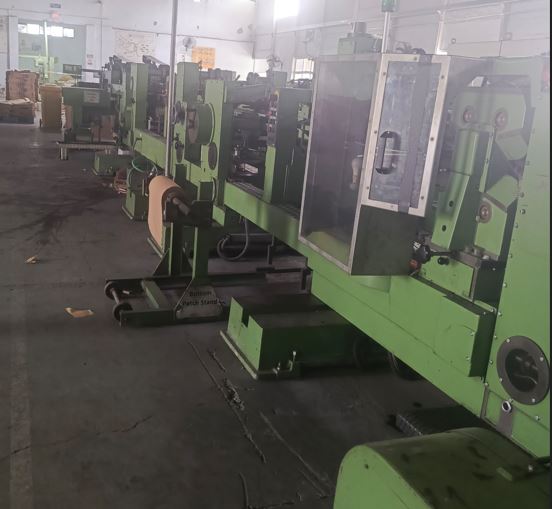

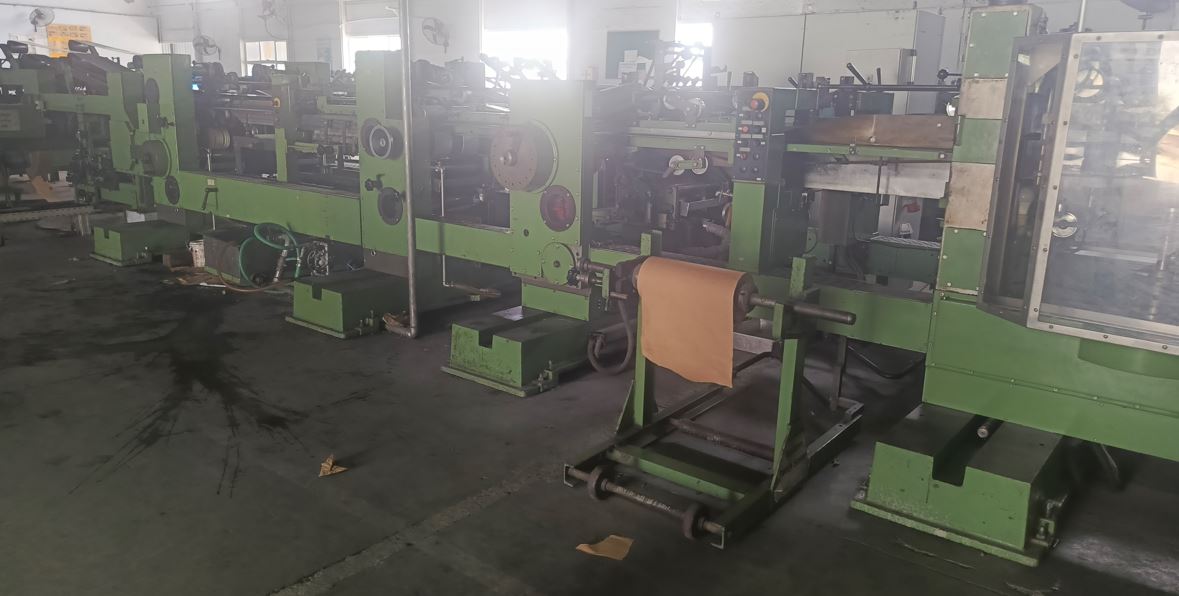

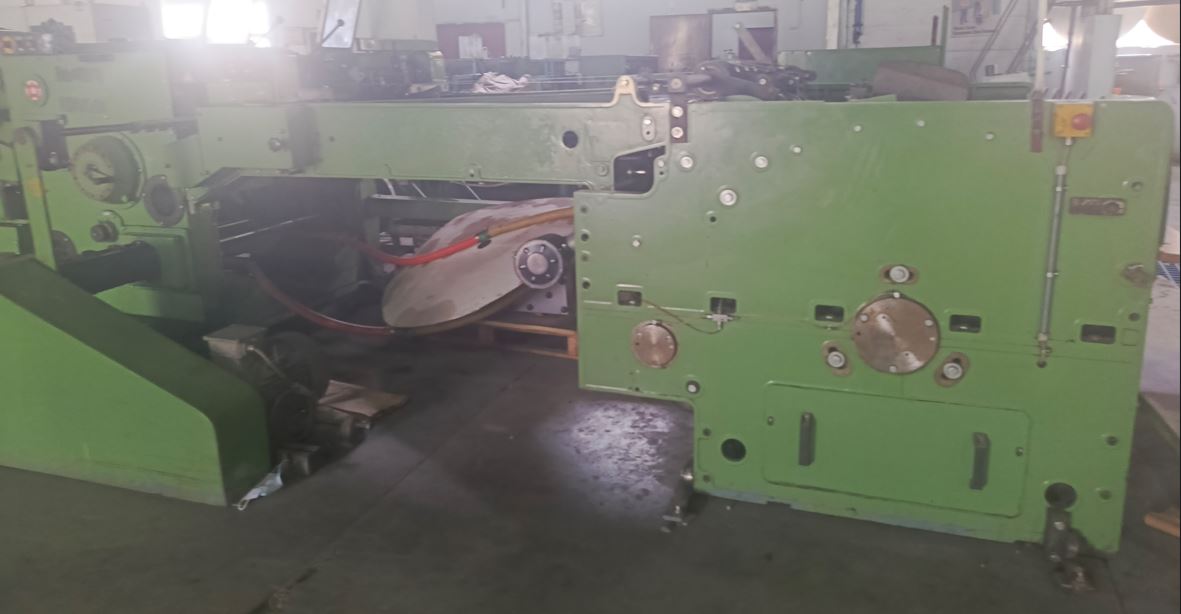

W&H Bottomer AD2360/16 with bottom patch, it was purchased fully and completely refurbished from W&H Garant in 2016
- Sack Width: 30 cm - 70 cm
- Sack Length Stepped end: 37 cm - 120 cm
- Sack Length Flush Cut: 37 cm - 122 cm
- Bottom Width - Stepped End: 7 cm - 15 cm
- Bottom Width - Flush Cut: 7 cm - 16 cm
- Production Speed: 130 sack/min
- Width of Opened Bottom: 18 cm - 36 cm
- Bottom Centre Distance: 30 cm - 110 cm
- Tube Length: 66 cm - 140 cm
- Valve - Cut-off Length: 14 cm - 21 cm
- Valve Ply : 1
